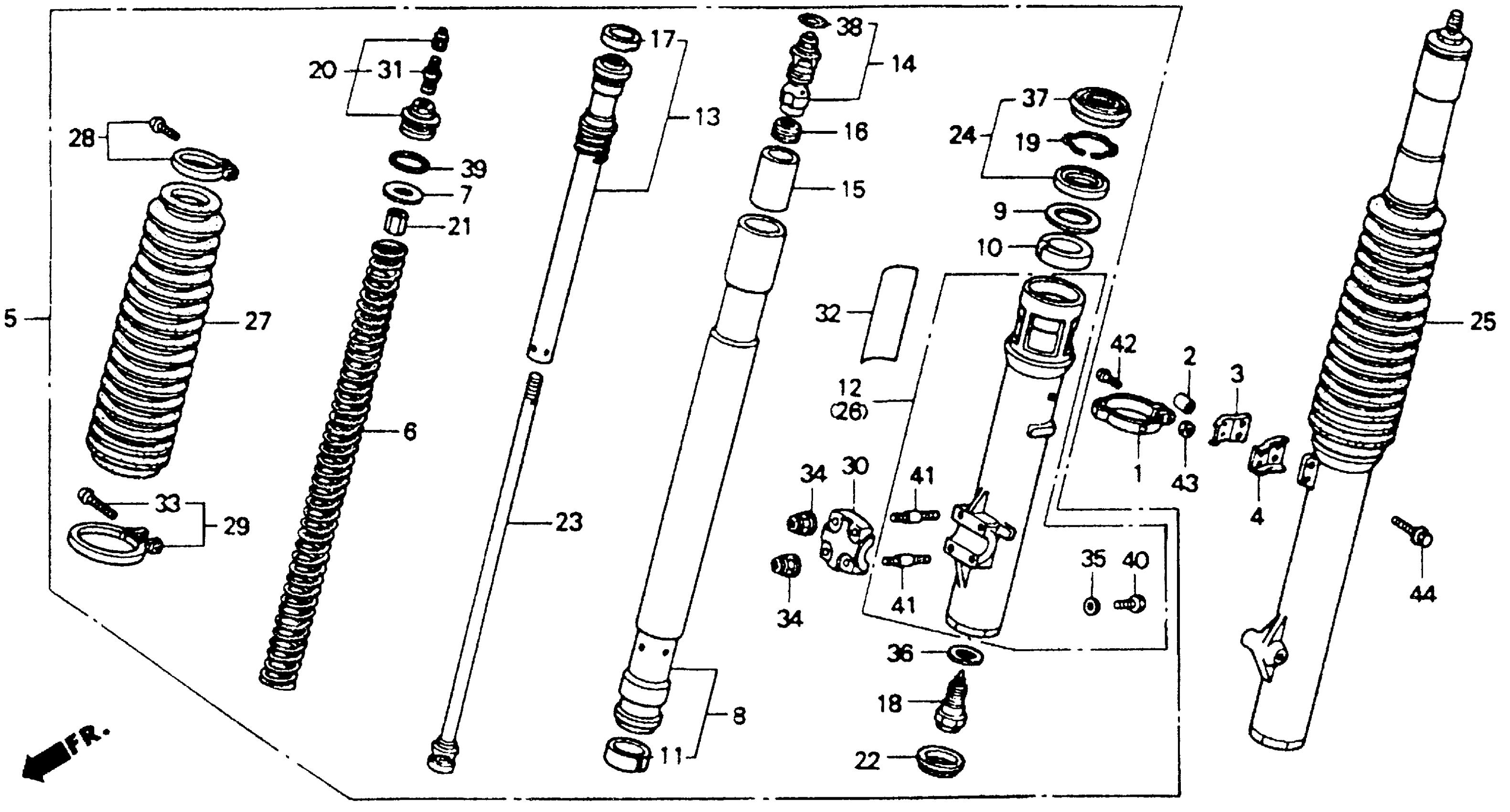

Honda XR600RA (92) MOTORCYCLE, JPN, VIN# JH2PE040-NM700004 FRONT FORK 91-92 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KT1-670

Unavailable

2

COLLAR, SPEEDOMETER CABLE CLAMP

44833-MN1-680

$4.15

3

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

4

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

5

FORK ASSY., R. FR. *B106* (CAPRI BLUE)

51400-MN1-681ZA

Unavailable

6

SPRING, FR. FORK

51401-MN1-681

Unavailable

7

SEAT, SPRING

51405-KA4-711

$6.23

8

PIPE, FR. FORK This part replaces 51410-MN1-681.

51410-MN1-682

$438.77

9

RING, BACK-UP

51412-KA4-711

$9.65

10

BUSH, GUIDE

51414-MAZ-751

$7.14

10

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

11

BUSH, SLIDER

51415-MN1-671

$15.97

12

CASE, R. (LOWER) (NOT AVAILABLE)

51420-MN1-681

Unavailable

13

CYLINDER

51430-MN1-681

Unavailable

14

PIECE (LOWER) (SHOWA)

51431-KS7-701

Unavailable

15

PIECE, OIL LOCK (SHOWA)

51432-KS7-003

$24.92

16

END, PIPE (SHOWA)

51433-KS7-003

Unavailable

17

BUSH, CYLINDER

51435-KS7-003

$21.68

18

BOLT, CENTER (SHOWA)

51441-KS7-003

$80.07

19

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

20

BOLT ASSY., FR. FORK (SHOWA)

51450-KS6-831

$72.03

21

NUT, LOCK (SHOWA)

51451-KS7-701

$15.62

22

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.48

23

ROD, PISTON (SHOWA)

51480-KS7-701

Unavailable

24

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$30.52

25

FORK ASSY., L. FR. *B106* (CAPRI BLUE)

51500-MN1-681ZA

Unavailable

26

CASE, L. (LOWER)

51520-MN1-681

Unavailable

27

BOOT, FR. FORK *B106* (CAPRI BLUE)

51611-MN1-671ZB

Unavailable

28

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

29

BAND, BOOT (LOWER) (SHOWA)

51613-MK2-003

$8.78

30

HOLDER, AXLE

51634-MA0-003

$37.46

31

CORE, VALVE

52426-381-771

Unavailable

32

MARK, FR. FORK

87130-KZ1-770

Unavailable

33

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

34

NUT, U (6MM)

90301-473-003

$4.07

35

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

36

WASHER, SPECIAL

90544-KS7-003

$2.92

37

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

38

O-RING (15.5X1.5)

91256-GC5-003

$1.51

39

O-RING (35.2X2.4)

91356-KA4-711

$3.76

40

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

41

BOLT, STUD (6X25)

92900-06025-0E

$1.49

42

SCREW, PAN (5X28)

93500-05028-0G

$1.49

43

NUT, HEX. (5MM)

94001-05070-0S

$1.49

44

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
