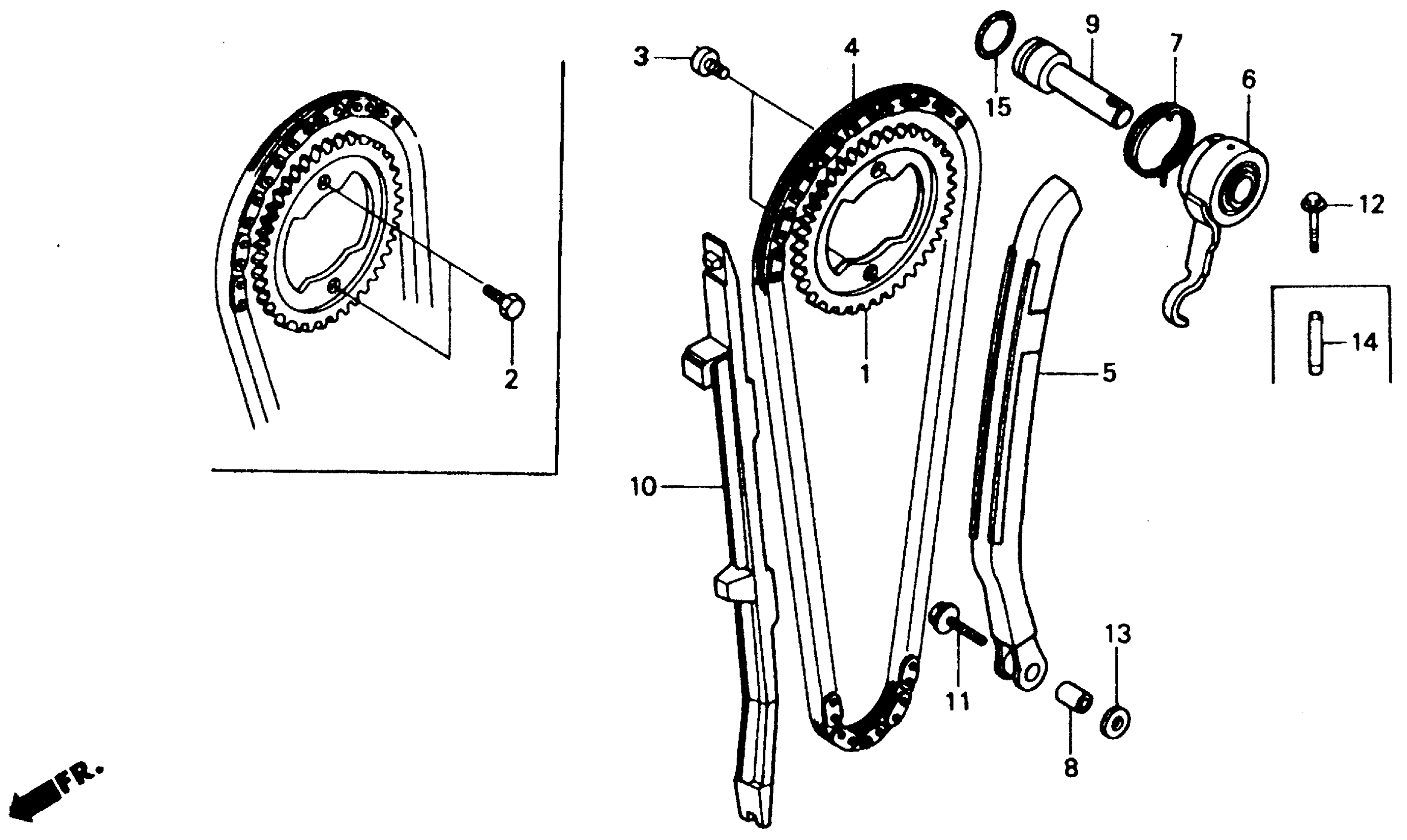

Honda XR600RA (92) MOTORCYCLE, JPN, VIN# JH2PE040-NM700004 CAM CHAIN Diagram

#

Description

Price

1

SPROCKET, CAM (38T)

14321-MN1-670

$39.06

3

BOLT, SPECIAL KNOCK (7X10.4)

14322-MN1-670

$7.88

4

CHAIN, CAM (118L) (BORG WARNER)

14401-MN1-671

$132.00

5

TENSIONER, CAM CHAIN

14511-MN1-670

Unavailable

6

LIFTER, DAMPER

14512-MG3-000

$68.72

7

SPRING, CAM CHAIN TENSIONER

14514-MG3-000

$6.23

8

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

9

SHAFT, TENSIONER LOCK

14516-MN1-670

$31.47

10

GUIDE, CAM CHAIN

14620-MN1-770

Unavailable

11

BOLT, FLANGE (6X25)

90088-MK4-600

Unavailable

12

BOLT, SOCKET (6X20)

90003-KN8-730

$3.31

13

WASHER (6.5MM) (NOT AVAILABLE)

22415-551-000

Unavailable

15

O-RING (14.5X2.4) (ARAI)

91303-MG2-792

$3.21
