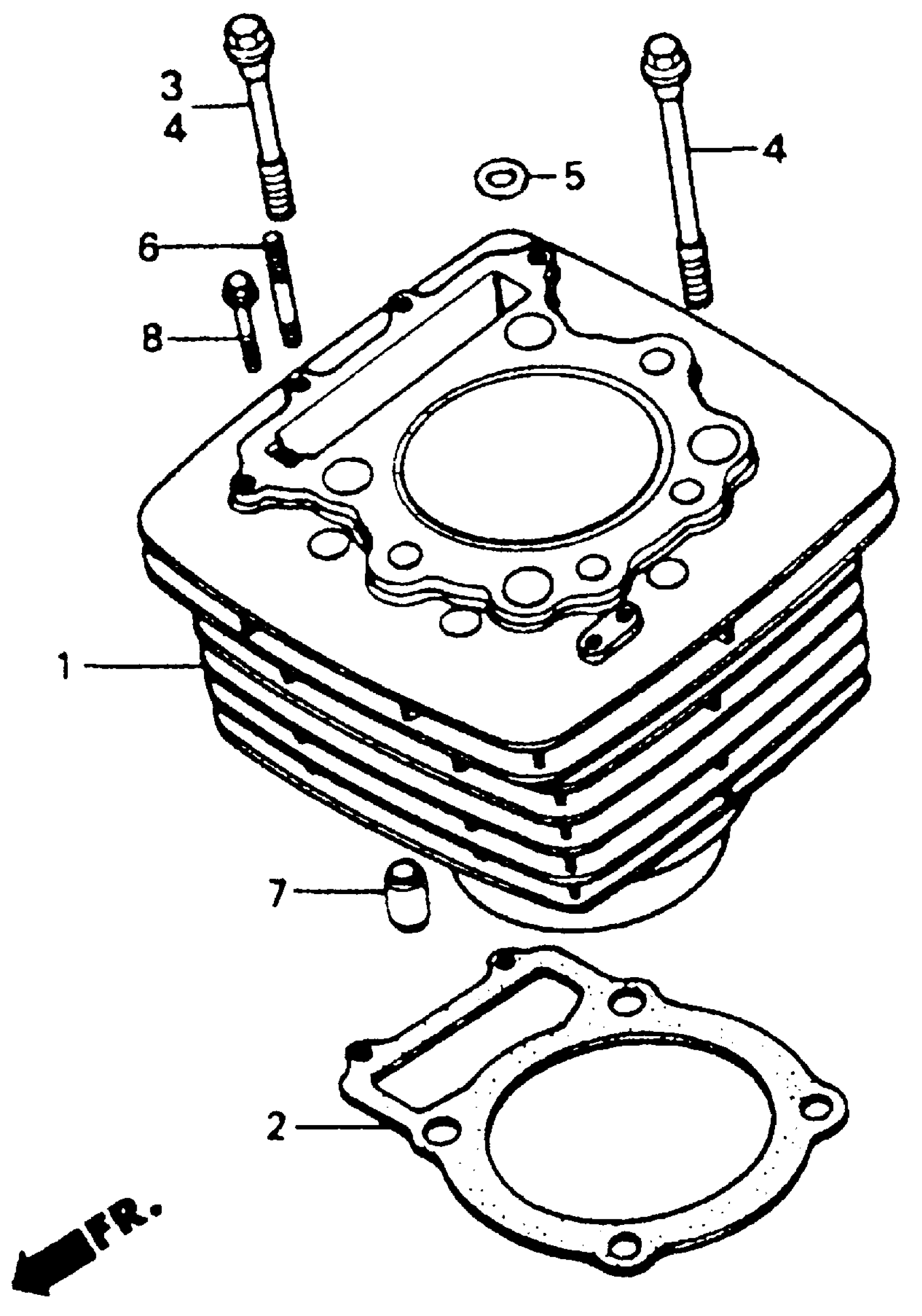

Honda XR600RA (91) MOTORCYCLE, JPN, VIN# JH2PE040-MK600008 TO JH2PE040-MK601490 CYLINDER Diagram

CYLINDER

12100-MN1-680

Unavailable

GASKET, CYLINDER This part replaces 12191-MN1-670.

12191-MN1-702

$13.97

GASKET, CYLINDER This part replaces 12191-MN1-700.

12191-MN1-702

$13.97

BOLT, FLANGE (10X66)

90085-MG3-000

$14.86

BOLT, FLANGE (10X110) This part replaces 90086-MG3-000.

90086-MY6-880

$19.06

WASHER, PLAIN (10MM)

90453-MK4-600

$3.81

BOLT, STUD (6X22)

92900-06022-0E

$1.49

PIN, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
