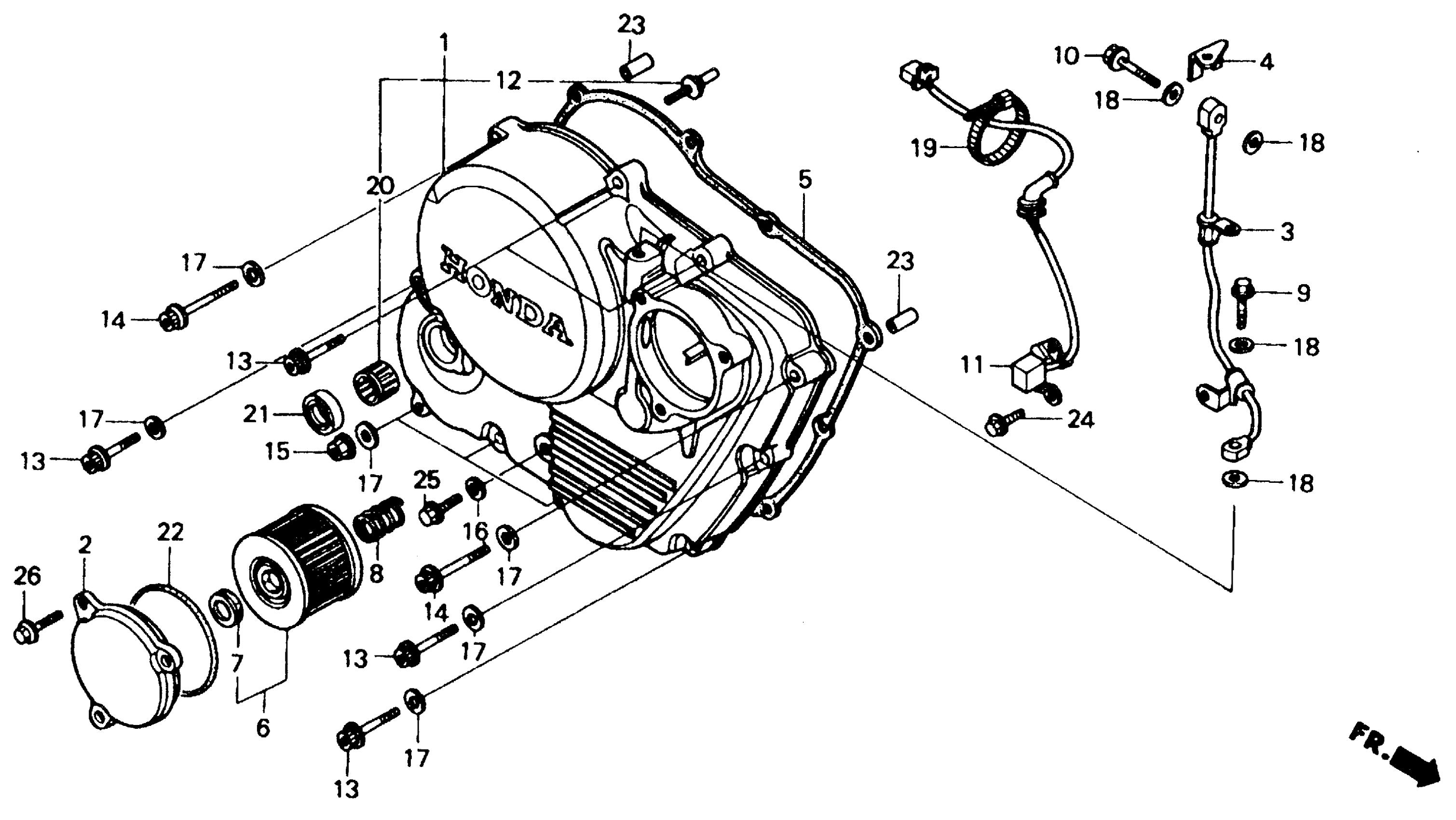

Honda XR600RA (90) MOTORCYCLE, JPN, VIN# JH2PE040-LK500001 TO JH2PE040-LK500786 RIGHT CRANKCASE COVER 88-92 Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MN1-870

Unavailable

2

COVER, OIL FILTER

11333-MN1-870

$46.53

3

PIPE, OIL PASSAGE

11335-MN9-000

$65.93

4

STOPPER, OIL PIPE

11336-MN1-670

$12.46

5

GASKET This part replaces 11394-MK2-000.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MK2-306.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MN1-880.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MY2-621.

11394-MY2-624

$28.96

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

BOLT, FLANGE (8X30)

15532-MA6-000

$9.21

10

BOLT, FLANGE (8X30)

15531-KN8-730

$7.87

11

GENERATOR ASSY., PULSE (TOYO)

30300-MN1-671

Unavailable

12

BOLT, SPECIAL (6MM)

90041-MG3-000

Unavailable

13

BOLT, FLANGE SOCKET (6X28)

90092-KF0-000

Unavailable

14

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

15

NUT, U (6MM)

90301-MG3-000

$6.91

16

WASHER (11MM)

90425-300-000

$2.66

17

WASHER, SEALING (6MM)

90461-MG3-000

Unavailable

18

GASKET

90544-439-930

$2.13

19

BAND, WIRE

90650-KV6-003

$3.12

20

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

21

OIL SEAL (20X32X6) This part replaces 91201-444-005.

91202-KJ9-003

$4.75

21

OIL SEAL (20X32X6) This part replaces 91202-KJ9-000.

91202-KJ9-003

$4.75

21

OIL SEAL (20X32X6)

91202-KJ9-003

$4.75

22

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

23

PIN, DOWEL (8X20)

94301-08200

$2.25

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

25

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

26

BOLT, FLANGE (6X18)

96001-06018-07

$1.49
