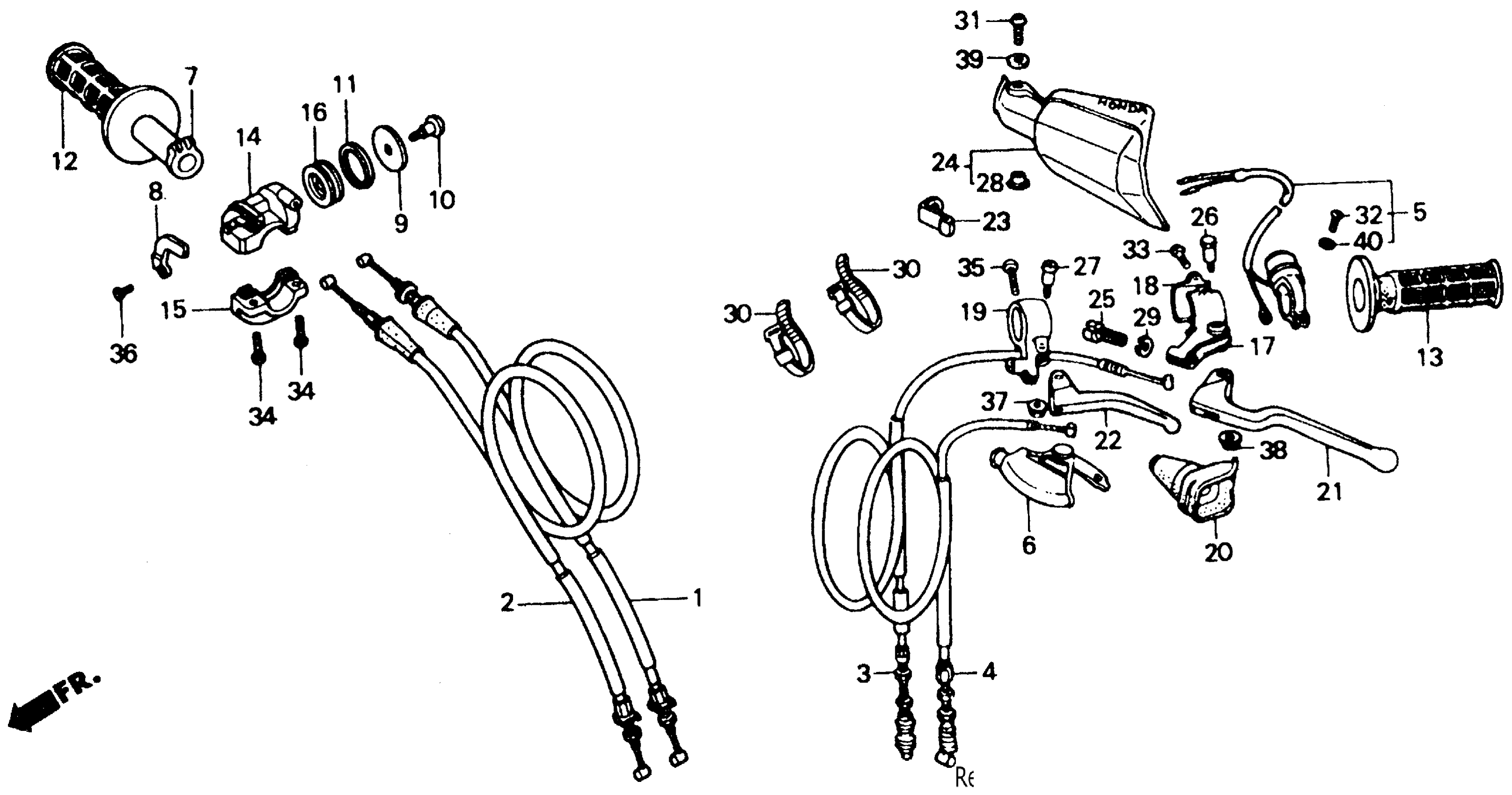

Honda XR600RA (90) MOTORCYCLE, JPN, VIN# JH2PE040-LK500001 TO JH2PE040-LK500786 HANDLE SWITCH 88-92 Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-MN1-670.

17910-MN1-680

$44.16

1

CABLE A, THROTTLE

17910-MN1-680

$44.16

2

CABLE B, THROTTLE | Use up to Frame SN LK500199 This part replaces 17920-MN1-670.

17920-MN1-671

$37.23

2

CABLE B, THROTTLE

17920-MN1-671

$37.23

3

CABLE, CLUTCH

22870-MN1-000

$31.00

3

CABLE, CLUTCH This part replaces 22870-MN1-670.

22870-MN1-000

$31.00

4

CABLE, DECOMPRESSION

22890-MN1-670

Unavailable

5

SWITCH ASSY., STOP

35130-MN1-670

$36.72

6

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$15.79

7

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$22.40

7

PIPE, THROTTLE GRIP

53141-429-010

$22.40

8

SLIDER, THROTTLE

53162-MN1-670

$9.57

9

COVER, THROTTLE PULLEY

53163-MN1-670

$9.20

10

SCREW, THROTTLE PULLEY PIVOT

53164-MN1-670

$5.01

11

GASKET, THROTTLE PULLEY

53165-MN1-670

$2.89

12

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

13

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

14

HOUSING, THROTTLE (UPPER)

53167-MN1-670

$29.61

15

HOUSING, THROTTLE (LOWER)

53168-MN1-670

$19.00

16

PULLEY, THROTTLE

53169-MN1-670

$14.06

17

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

19

BRACKET, DECOMPRESSION LEVER

53173-435-730

$36.79

20

COVER, L. HANDLEBAR

53177-KN5-670

$9.41

21

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

22

LEVER, DECOMPRESSION

53180-MN1-670

Unavailable

23

PLATE, GUARD SETTING

53181-KN5-670

$6.58

24

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE)

53185-KN5-670ZB

$36.03

25

BOLT, CABLE ADJUSTING

53192-KA4-710

$10.51

26

BOLT, LEVER PIVOT

90114-KN5-670

$8.98

27

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

28

COLLAR (6X4)

90127-KF0-770

$3.42

29

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

29

NUT, FIXING

90321-KF0-000

$9.76

30

BAND, WIRE

90650-KV6-003

$3.12

31

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

32

SCREW, PAN (4X12)

93500-04012-0A

$1.49

32

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

33

SCREW, PAN (5X20)

93500-05020-0G

$1.49

34

SCREW, PAN (6X16)

93500-06016-0G

$1.49

35

SCREW, PAN (6X25)

93500-06025-0G

$1.49

36

SCREW, OVAL (4X10)

93700-04010-0G

$1.49

36

SCREW, OVAL (4X10) This part replaces 93700-04010-1G.

93700-04010-0G

$1.49

37

NUT, FLANGE (5MM)

94050-05000

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

WASHER, PLAIN (5MM)

94103-05000

$1.49

40

WASHER, SPRING (4MM)

94111-04000

$1.49
