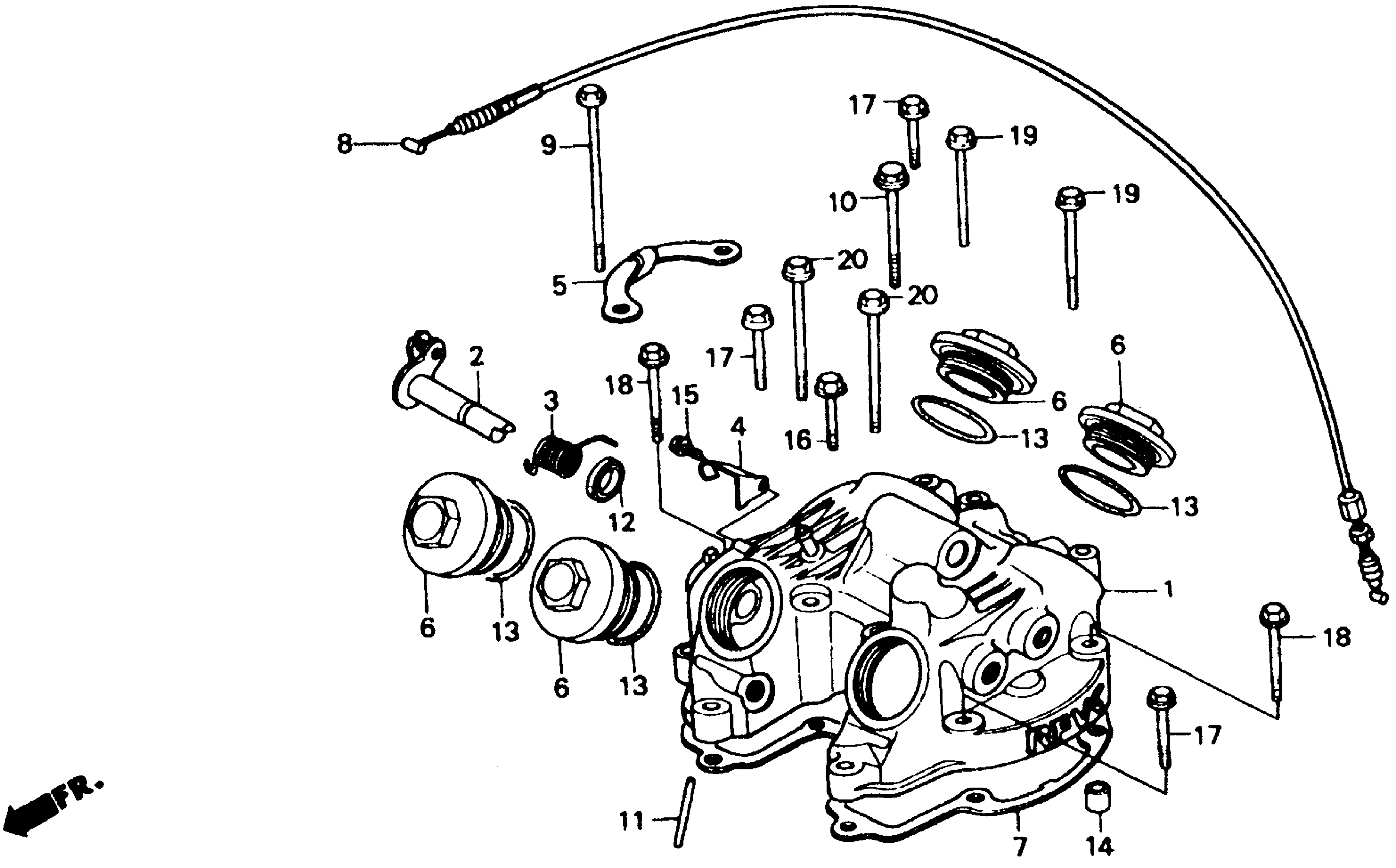

Honda XR600RA (89) MOTORCYCLE, JPN, VIN# JH2PE040-KK400001 TO JH2PE040-KK402027 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12311-MN1-670

Unavailable

2

LIFTER, VALVE (B)

12319-MN1-670

Unavailable

3

SPRING, VALVE LIFTER

12321-MN1-670

Unavailable

4

RECEIVER, DECOMPRESSION (B)

12324-MN1-670

Unavailable

6

CAP, TAPPET ADJUSTING HOLE

12361-KF0-010

$19.90

7

GASKET, HEAD COVER

12391-MG2-790

$46.10

9

BOLT, FLANGE (6X115)

90025-MK4-600

$7.53

10

BOLT, FLANGE (8X70)

90044-MK4-600

$5.01

11

PIN, DOWEL (4X44)

91101-MG3-000

Unavailable

12

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$4.88

12

OIL SEAL (11X16X5) (ARAI) This part replaces 91202-MG3-005.

91202-MG3-003

$4.88

13

O-RING (39.5X2.6)

91352-MG2-792

$7.97

14

PIN, DOWEL (8X20)

94301-08200

$2.76

15

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.97

15

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

16

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.29

16

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

17

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.29

17

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

18

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.75

18

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

19

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.69

19

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

20

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

Unavailable

20

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
