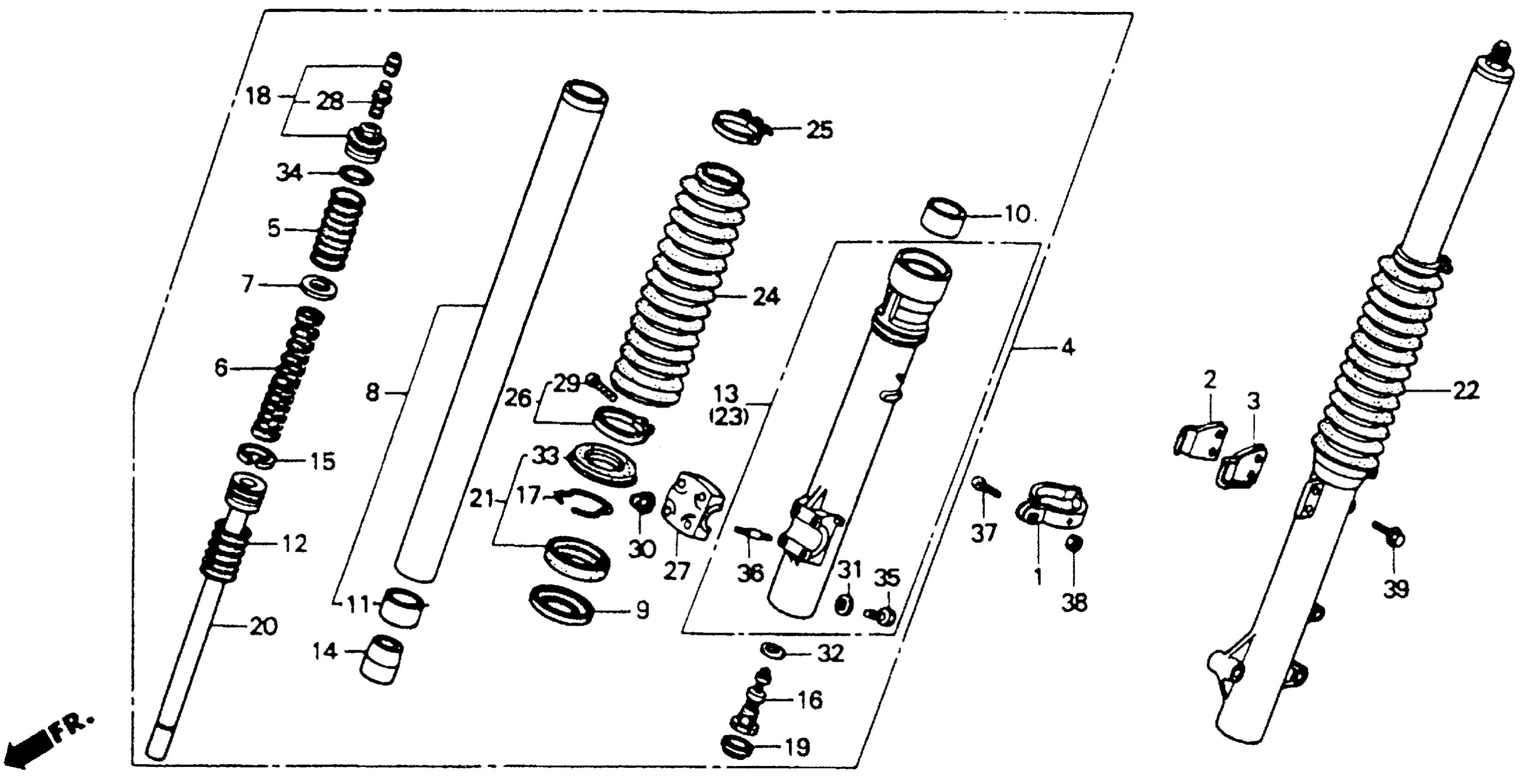

Honda XR600RA (88) MOTORCYCLE, JPN, VIN# JH2PE040-JK300009 TO JH2PE040-JK301886 FRONT FORK 88-90 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KT1-670

Unavailable

2

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

3

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

4

FORK ASSY., R. FR. (SHOWA)

51400-MN1-671

Unavailable

4

FORK ASSY., R. FR. *R119* (SHOWA) (FLASH RED)

51400-MN1-671ZA

Unavailable

5

SPRING A, FR. FORK

51401-MN1-671

Unavailable

6

SPRING B, FR. FORK

51402-MN1-671

Unavailable

7

SEAT, SPRING

51405-KA4-711

$6.23

8

PIPE, FR. FORK

51410-MN1-671

Unavailable

9

RING, BACK-UP

51412-KA4-711

$9.65

10

BUSH, GUIDE

51414-MAZ-751

$7.14

10

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

11

BUSH, SLIDER

51415-MN1-671

$15.97

12

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$14.15

13

CASE, R. (LOWER)

51420-MN1-671

Unavailable

14

PIECE, OIL LOCK (SHOWA)

51432-KA4-831

Unavailable

15

RING, PISTON (SHOWA)

51437-KA4-711

Unavailable

16

BOLT, CENTER

51441-MN1-671

Unavailable

17

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

18

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51450-KA4-711

Unavailable

19

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.48

20

PIPE, SEAT

51470-MN1-671

Unavailable

21

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$30.52

22

FORK ASSY., L. FR. *R119* (SHOWA) (FLASH RED) This part replaces 51500-MN1-671.

51500-MN1-671ZA

Unavailable

22

FORK ASSY., L. FR. *R119* (SHOWA) (FLASH RED)

51500-MN1-671ZA

Unavailable

23

CASE, L. (LOWER)

51520-MN1-671

Unavailable

24

BOOT, FR. FORK *R119* (FLASH RED) This part replaces 51611-MN1-671.

51611-MN1-671ZA

Unavailable

24

BOOT, FR. FORK *R119* (FLASH RED)

51611-MN1-671ZA

Unavailable

25

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

26

BAND, BOOT (LOWER) (SHOWA)

51613-MK2-003

$8.78

27

HOLDER, AXLE

51634-MA0-003

$37.46

28

CORE, VALVE

52426-381-771

Unavailable

29

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

30

NUT, U (6MM)

90301-473-003

$4.07

31

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

32

WASHER, SPECIAL (NOT AVAILABLE)

90544-KA4-831

Unavailable

33

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

34

O-RING (35.2X2.4)

91356-KA4-711

$3.76

35

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8) This part replaces 92201-06008-0A.

92101-06008-0A

$1.49

36

BOLT, STUD (6X25)

92900-06025-0E

$1.49

37

SCREW, PAN (5X20) | Use up to Frame SN JK301472

93500-05020-0A

$1.49

37

SCREW, PAN (5X25) | Use from Frame SN JK301473

93500-05025-0G

$1.49

38

NUT, HEX. (5MM)

94001-05070-0S

$1.49

39

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
