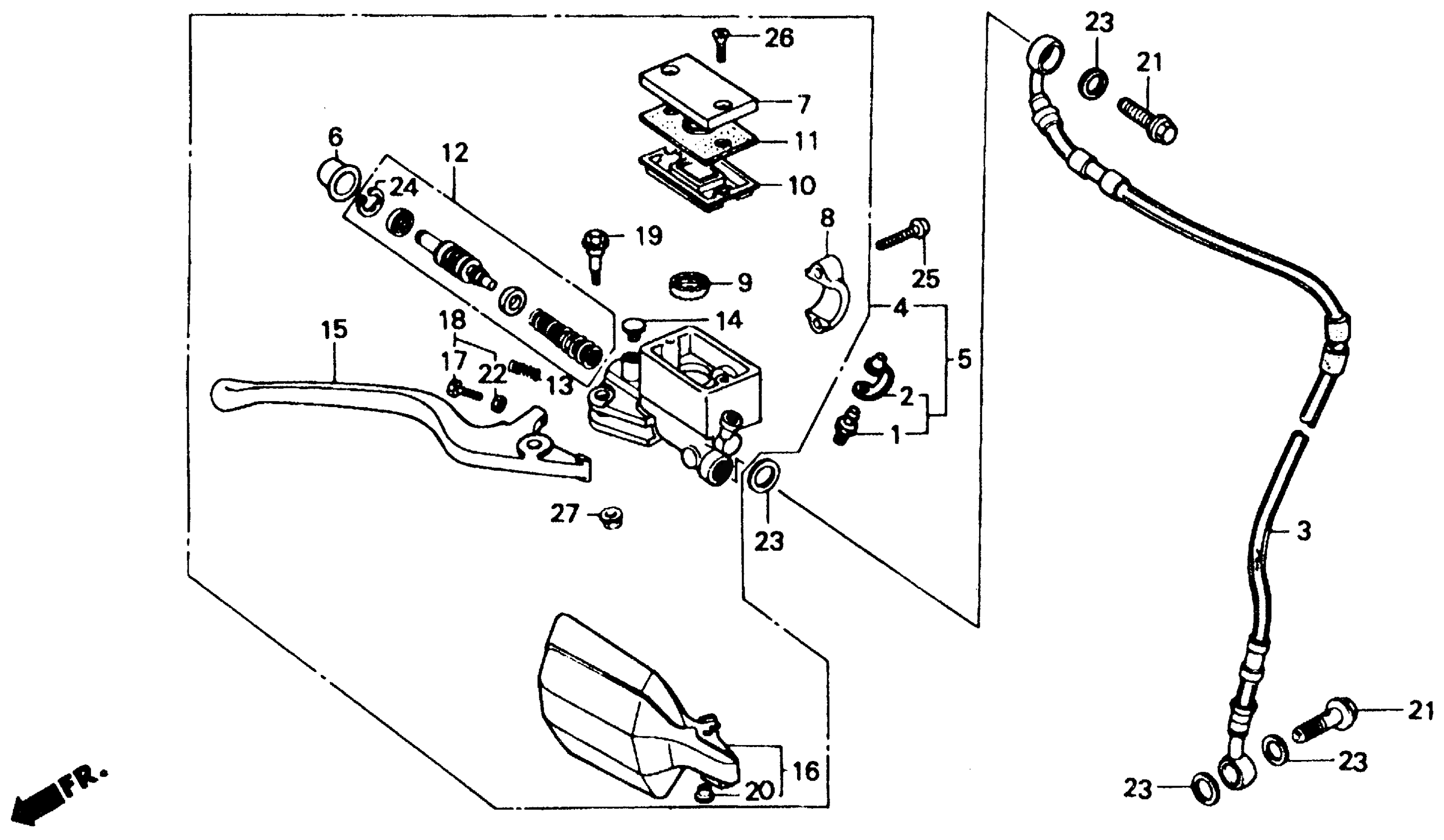

Honda XR600RA (88) MOTORCYCLE, JPN, VIN# JH2PE040-JK300009 TO JH2PE040-JK301886 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

HOSE, FR. BRAKE (NOT AVAILABLE)

45125-MN1-671

Unavailable

5

MASTER CYLINDER SUB-ASSY., FR. This part replaces 45500-MK2-771ZB.

45510-MK2-405

Unavailable

5

MASTER CYLINDER SUB-ASSY., FR.

45510-MK2-405

Unavailable

6

BOOT

45504-KN5-006

$11.31

7

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

8

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

9

SEPARATOR

45518-MG3-016

$12.02

10

DIAPHRAGM

45520-MG7-006

$10.61

11

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

12

MASTER CYLINDER SET

45530-MK2-305

Unavailable

13

SPRING, BRAKE LEVER

53174-KN5-006

$2.97

14

PLUG, HANDLE LEVER BRACKET | Use up to Frame SN JK301472 This part replaces 53174-463-770.

53174-116-670

$2.48

14

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

15

LEVER, R. HANDLEBAR

53175-MK2-770

$21.71

16

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE)

53180-KN5-000ZB

Unavailable

18

BOLT SET, ADJUSTER This part replaces 90111-KS6-000.

90111-ML3-791

$6.60

19

BOLT, HANDLE LEVER PIVOT

90113-KF0-770

$5.73

20

COLLAR (6X4)

90127-KF0-770

$3.42

21

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

21

BOLT, OIL (10X22)

90145-KM3-751

$11.02

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

CIRCLIP

90651-MA5-671

$2.66

25

SCREW, PAN (6X25)

93500-06025-0G

$1.49

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

27

NUT, FLANGE (6MM)

94050-06000

$1.49
