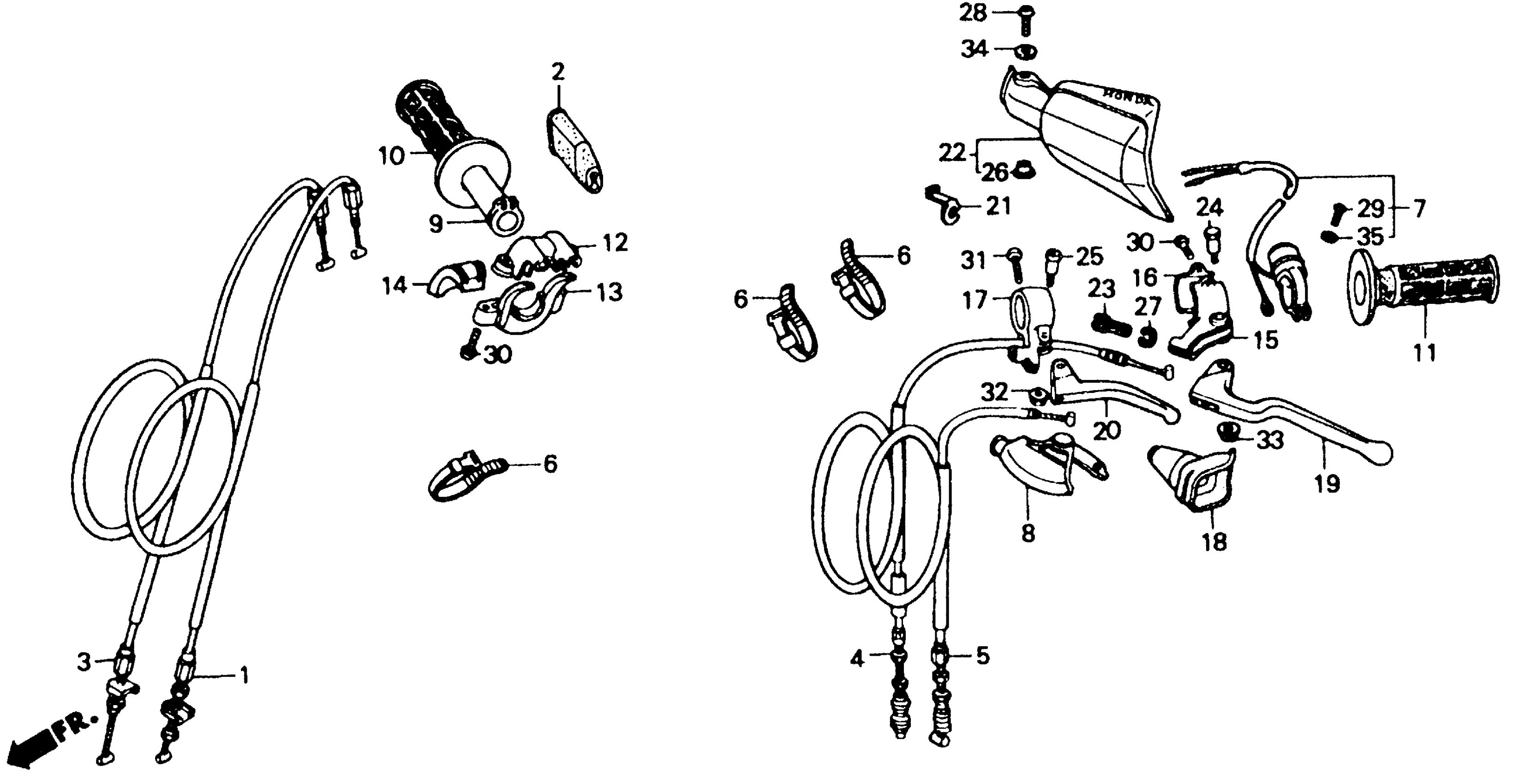

Honda XR600RA (86) MOTORCYCLE, JPN, VIN# JH2PE040-GK100003 TO JH2PE040-GK104177 HANDLE SWITCH 85-87 Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MK2-670

Unavailable

1

CABLE A, THROTTLE This part replaces 17910-MK2-770.

17910-MK2-670

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

3

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17920-MK2-770.

17920-MK2-670

Unavailable

4

CABLE, CLUTCH This part replaces 22870-MK2-670.

22870-MN1-000

$31.00

4

CABLE, CLUTCH

22870-MN1-000

$31.00

4

CABLE, CLUTCH This part replaces 22870-MN1-670.

22870-MN1-000

$31.00

5

CABLE, DECOMPRESSION

22890-MG3-000

Unavailable

6

BAND B1, WIRE

32161-404-000

$2.23

7

SWITCH ASSY., STOP This part replaces 35130-KA2-003.

35130-KT0-670

Unavailable

7

SWITCH ASSY., STOP

35130-KT0-670

Unavailable

8

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$15.79

9

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$22.40

9

PIPE, THROTTLE GRIP

53141-429-010

$22.40

10

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

11

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

12

HOUSING, THROTTLE (UPPER)

53167-KF0-000

Unavailable

13

HOUSING, THROTTLE (LOWER)

53168-KF0-000

Unavailable

14

SLIDER, THROTTLE CABLE

53169-KF0-000

Unavailable

15

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

16

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

16

HOLDER, LEVER BRACKET

53173-376-000

$10.95

17

BRACKET, DECOMPRESSION LEVER

53173-435-730

$36.79

18

COVER, L. HANDLEBAR

53177-KN5-670

$9.41

19

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

20

LEVER, DECOMPRESSION

53180-MAG-670

$27.22

20

LEVER, DECOMPRESSION This part replaces 53180-435-730.

53180-MAG-670

$27.22

21

PLATE, GUARD SETTING

53181-KN5-670

$6.58

22

GUARD, L. KNUCKLE *R119* (FLASH RED) (NOT AVAILABLE)

53185-KN5-670ZA

Unavailable

23

BOLT, CABLE ADJUSTING

53192-KA4-710

$10.51

24

BOLT, LEVER PIVOT

90114-KN5-670

$8.98

25

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

26

COLLAR (6X4)

90127-KF0-770

$3.42

27

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

27

NUT, FIXING

90321-KF0-000

$9.76

28

BOLT, RECESSED (5X8) This part replaces 92300-05008-0A.

92301-05008-0A

$1.49

28

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

29

SCREW, PAN (4X12)

93500-04012-0A

$1.49

29

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

30

SCREW, PAN (5X20)

93500-05020-0A

$1.49

31

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

32

NUT, FLANGE (5MM)

94050-05000

$1.49

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

WASHER, PLAIN (5MM)

94103-05000

$1.49

35

WASHER, SPRING (4MM)

94111-04000

$1.49
