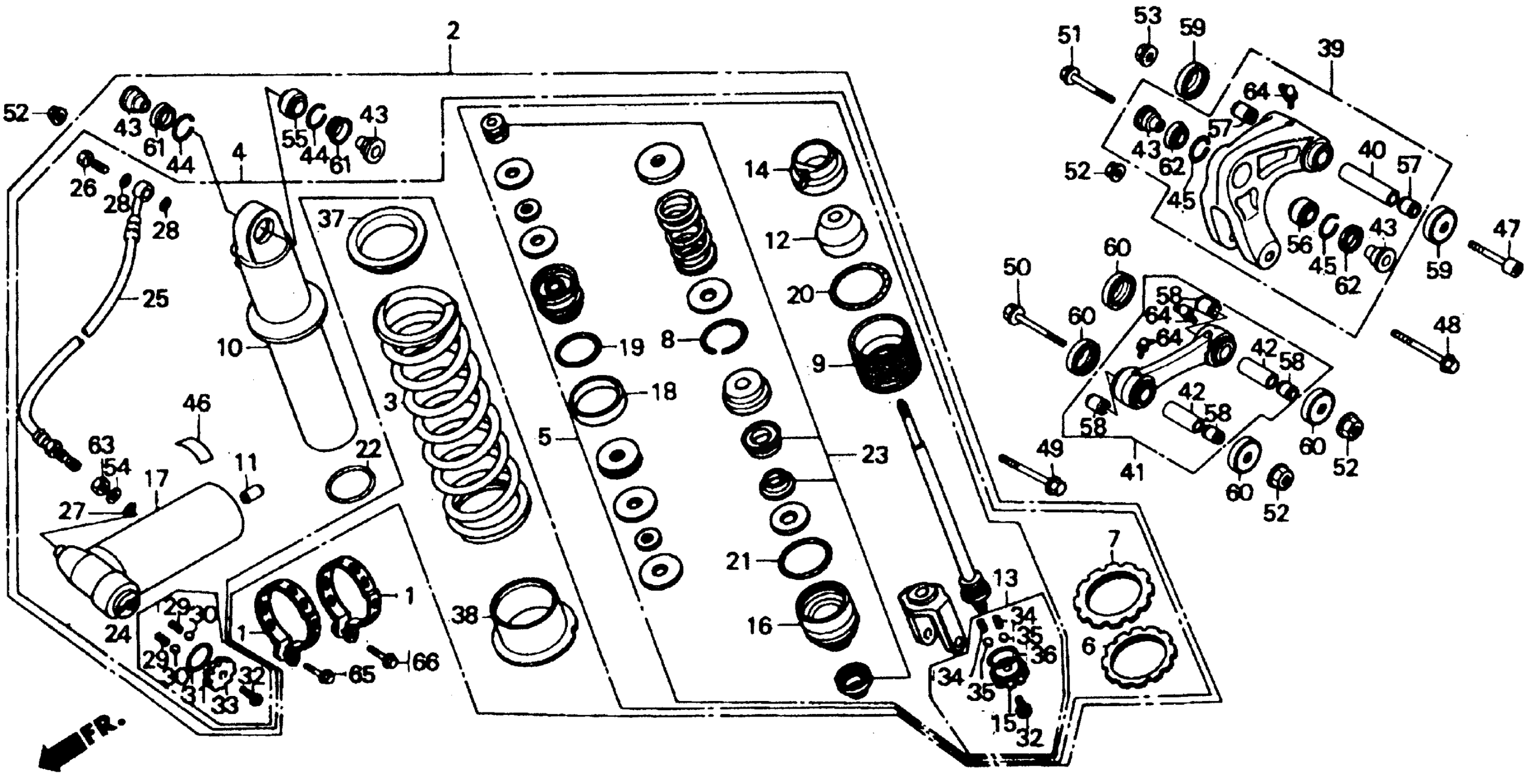

Honda XR600RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000024 TO JH2PE040-FK003185 SHOCK ABSORBER 85-87 Diagram

#

Description
Price

1

BAND, SUB-TANK (NOT AVAILABLE)

50252-MK2-670

Unavailable

2

SHOCK ABSORBER ASSY., RR.

52400-MK2-003

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-MK2-003

Unavailable

4

DAMPER, RR.

52410-MK2-003

Unavailable

5

ROD, PISTON

52421-MK2-003

Unavailable

6

ADJUSTER, SPRING

52422-KN5-003

Unavailable

7

NUT, ADJUSTER

52423-KA3-711

Unavailable

8

RING D, STOPPER

52423-MK2-771

Unavailable

9

SEAT, SPRING

52424-MK2-771

Unavailable

10

CASE, SHOCK ABSORBER

52425-MK2-003

Unavailable

11

CAP, AIR VALVE

52425-381-771

$5.05

12

RUBBER, STOPPER (NOT AVAILABLE)

52427-MK2-771

Unavailable

13

PLATE SET, ADJUSTING (NOT AVAILABLE)

52428-KN5-003

Unavailable

14

PLATE, END

52428-MK2-771

Unavailable

15

PLATE, ADJUSTING

52429-KN5-003

Unavailable

16

CASE, ROD GUIDE (NOT AVAILABLE)

52429-MK2-771

Unavailable

17

TANK ASSY., RESERVOIR (NOT AVAILABLE)

52430-MK2-003

Unavailable

18

RING, PISTON

52431-KF0-003

Unavailable

19

O-RING C (2.0X29.5)

52432-KF0-003

Unavailable

20

O-RING (2.0X47.5)

52432-MK2-771

Unavailable

21

O-RING D (3.5X29.7)

52434-KF0-003

Unavailable

22

RING, STOPPER

52435-KF0-003

Unavailable

23

OIL SEAL SET

52436-MK2-771

Unavailable

24

PLATE SET, ADJUSTING

52438-KN5-003

Unavailable

25

HOSE, JOINT

52440-MK2-003

Unavailable

26

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

27

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

28

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

29

SPRING, CLICK

52445-KN5-003

Unavailable

30

BALL (NOT AVAILABLE)

52446-KF0-003

Unavailable

31

O-RING (2X23.5)

52447-KF0-003

Unavailable

32

SCREW

52448-KF0-003

$2.90

33

PLATE, ADJUSTING (NOT AVAILABLE)

52449-KF0-771

Unavailable

34

SPRING, CLICK

52455-KF0-003

$4.97

35

BALL

52456-KF0-003

$3.28

36

SEAL, RING

52457-KN5-003

$7.18

37

SEAT B, SPRING

52458-KN5-003

Unavailable

38

SEAT C, SPRING (SHOWA)

52459-KN5-003

Unavailable

39

ARM ASSY., SHOCK ABSORBER This part replaces 52460-MK2-000.

52460-MK2-010

Unavailable

39

ARM ASSY., SHOCK ABSORBER

52460-MK2-010

Unavailable

40

COLLAR, CUSHION ARM PIVOT

52463-KN5-000

$20.30

41

ROD ASSY., RUBBER CONNECTING

52470-KN5-000

Unavailable

42

COLLAR, CUSHION CONNECTING ROD

52473-KN5-000

$12.90

43

COLLAR, SHOCK ABSORBER

52486-KN5-003

Unavailable

44

RING, STOPPER

52487-KA4-831

$3.92

45

RING, STOPPER

52487-KN5-000

$3.26

46

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

47

BOLT, SOCKET (12X100) This part replaces 90128-KN5-000.

90128-MV1-000

Unavailable

48

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

49

BOLT, FLANGE (10X72)

90150-KF0-000

$15.67

50

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

51

BOLT, FLANGE (10X48)

90153-KA3-730

Unavailable

52

NUT, U (10MM)

90304-GE8-003

$3.67

53

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

54

WASHER This part replaces 90401-KF0-003.

90501-MT2-000

$1.86

54

WASHER

90501-MT2-000

$1.86

55

BEARING, SPHERICAL (14MM) This part replaces 91077-KA4-831.

91077-KN5-004

$22.62

55

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

56

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

57

BEARING, CUSHION ARM (NTN)

91078-KN5-003

$28.44

58

BEARING, CONNECTING ROD

91079-KN5-003

$12.71

59

SEAL, CUSHION ARM

91261-KN5-003

$10.72

60

SEAL, CUSHION CONNECTING ROD PIVOT

91262-KN5-003

$10.10

61

DUST SEAL B

91351-KN5-003

Unavailable

62

DUST SEAL B

91351-KN5-004

$4.06

63

NUT, HEX. (12MM)

94002-12000-0S

$2.06

64

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56

65

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

66

BOLT, FLANGE (6X25)

96300-06025-00

$1.49
