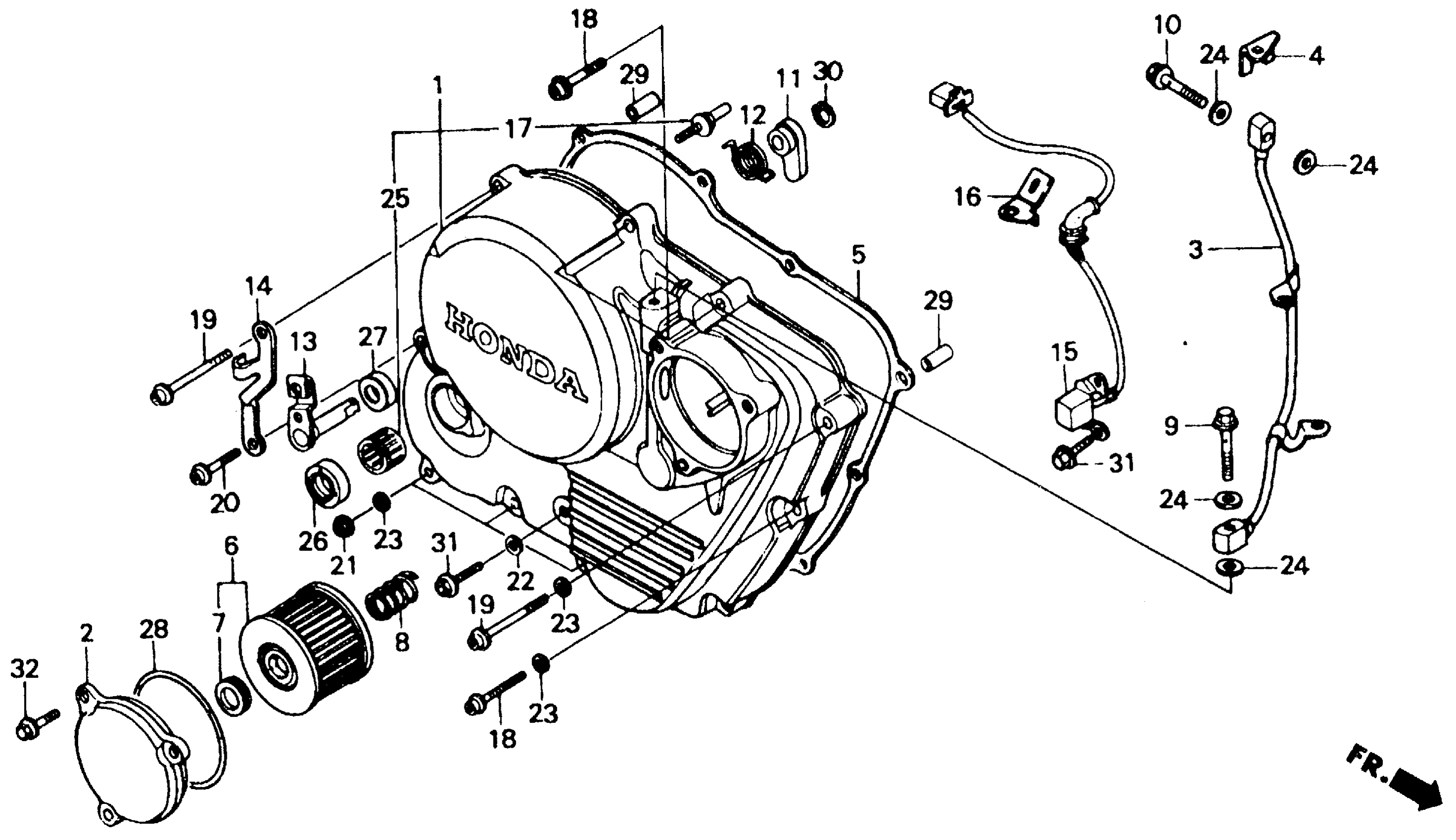

Honda XR600RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000024 TO JH2PE040-FK003185 RIGHT CRANKCASE COVER 85-87 Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-MG2-790.

11330-MG2-791

Unavailable

1

COVER, R. CRANKCASE

11330-MG2-791

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-MG3-000

Unavailable

3

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-MK2-000

Unavailable

4

STOPPER, OIL PIPE

11336-KN8-730

Unavailable

4

STOPPER, OIL PIPE This part replaces 11336-MK2-000.

11336-KN8-730

Unavailable

5

GASKET This part replaces 11394-MK2-000.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MK2-306.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MN1-880.

11394-MY2-624

$28.96

5

GASKET This part replaces 11394-MY2-621.

11394-MY2-624

$28.96

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

BOLT, FLANGE (8X30)

15532-MA6-000

$9.21

10

BOLT, FLANGE (8X30)

15531-KN8-730

$7.87

10

BOLT, FLANGE (8X30) This part replaces 15532-MG3-000.

15531-KN8-730

$7.87

11

FOLLOWER, CAM

28271-428-000

Unavailable

12

SPRING, FOLLOWER

28274-KF0-000

Unavailable

13

SHAFT, FOLLOWER

28280-MG3-000

Unavailable

14

RECEIVER, DECOMPRESSION (C)

28287-MG3-000

Unavailable

15

GENERATOR ASSY., PULSE This part replaces 30300-MK2-000.

30300-MK2-010

Unavailable

15

GENERATOR ASSY., PULSE

30300-MK2-010

Unavailable

16

CLIP, ALTERNATOR WIRE

32972-MK2-000

Unavailable

17

BOLT, SPECIAL (6MM)

90041-MG3-000

Unavailable

18

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

19

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

20

BOLT, FLANGE SOCKET (6X28)

90098-KF0-000

$3.85

21

NUT, U (6MM)

90301-MG3-000

$6.91

22

WASHER (11MM)

90425-300-000

$2.66

23

WASHER, SEALING (6MM)

90461-MG3-000

Unavailable

24

GASKET

90544-439-930

$2.13

25

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

26

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

26

OIL SEAL (20X32X6) (NOK) This part replaces 91201-360-013.

91201-360-005

$4.87

27

OIL SEAL (12X22X5)

91201-965-000

$4.06

28

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

29

PIN, DOWEL (8X20)

94301-08200

$2.25

30

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

31

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

31

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

32

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

32

BOLT, FLANGE (6X18)

96001-06018-07

$1.49
