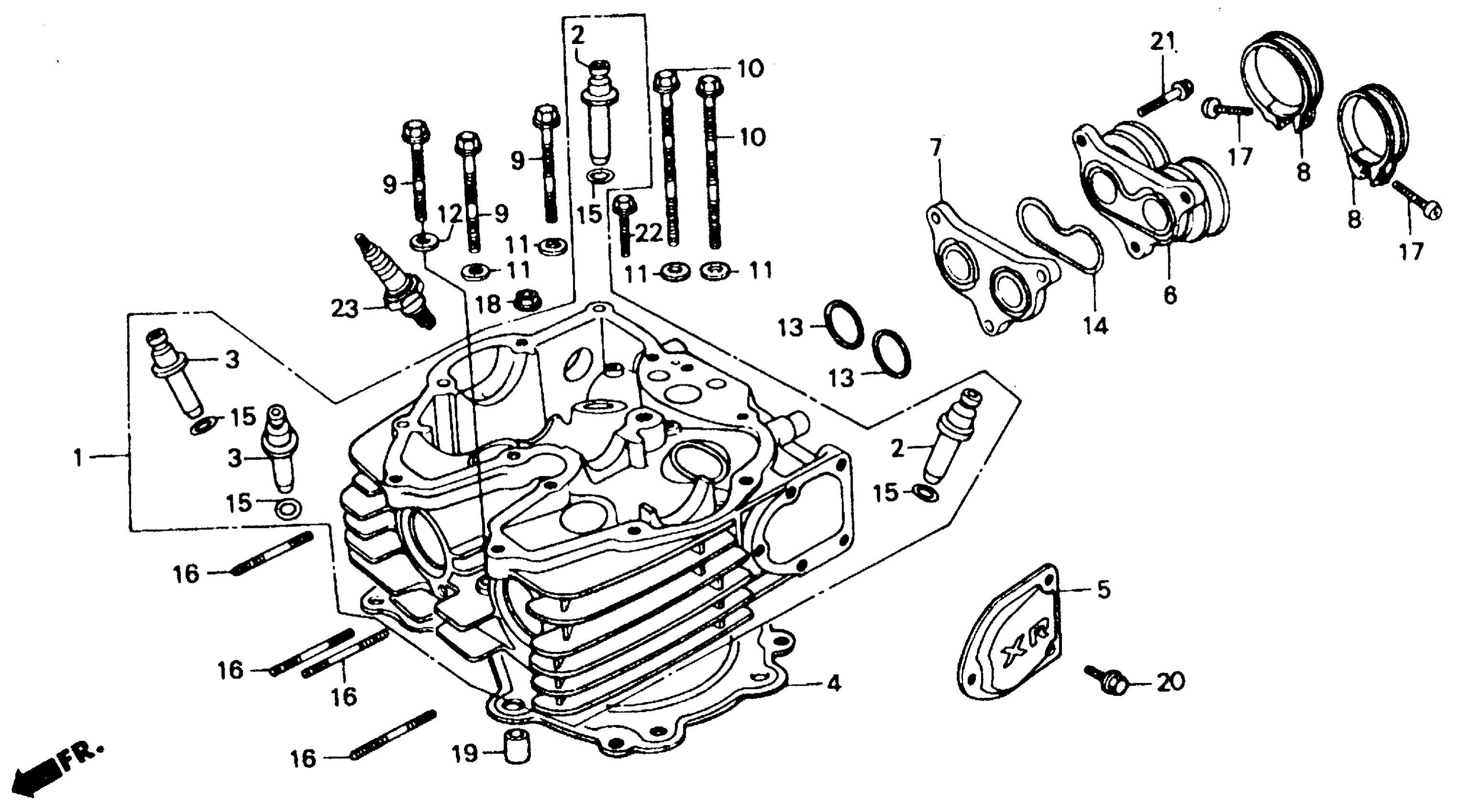

Honda XR600RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000024 TO JH2PE040-FK003185 CYLINDER HEAD 85-87 Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-MK2-000.

12200-MK2-315

Unavailable

1

CYLINDER HEAD This part replaces 12200-MK2-010.

12200-MK2-315

Unavailable

2

GUIDE, IN. VALVE (OS)

12231-MG2-306

$18.05

3

GUIDE, EX. VALVE (OS)

12241-MG2-306

$18.05

4

GASKET, CYLINDER HEAD This part replaces 12251-MK2-005.

12251-MK2-015

Unavailable

4

GASKET, CYLINDER HEAD

12251-MK2-015

Unavailable

5

COVER, DECOMPRESSION

12330-MK2-000

Unavailable

6

INSULATOR, CARBURETOR

16211-MG3-010

Unavailable

7

INSULATOR, HEAT

16215-MG2-306

Unavailable

7

INSULATOR, HEAT | Use up to Engine SN 5003125 This part replaces 16215-MG2-880.

16215-MG2-306

Unavailable

7

INSULATOR, HEAT This part replaces 16215-MG2-881.

16215-MG2-306

Unavailable

7

INSULATOR, HEAT This part replaces 16215-MG2-882.

16215-MG2-306

Unavailable

8

BAND, INSULATOR

16223-KS5-000

$14.20

8

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

9

BOLT, FLANGE (8X70)

90082-MG3-003

$10.21

10

BOLT, FLANGE (8X100)

90083-MG3-003

$11.08

11

WASHER, PLAIN (8MM) This part replaces 90501-MK2-000.

90501-MK4-600

$3.81

11

WASHER, PLAIN (8MM)

90501-MK4-600

$3.81

12

WASHER, PLAIN (8MM)

90501-MG3-000

Unavailable

12

WASHER, PLAIN (8MM) This part replaces 90502-MG2-790.

90501-MG3-000

Unavailable

13

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

13

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

14

O-RING, SPECIAL (NOK)

91301-MG3-003

$7.08

15

O-RING (10X1.6)

91301-200-000

$3.01

16

BOLT, STUD (8X40) This part replaces 92700-08040.

92700-08040-0B

$2.02

16

BOLT, STUD (8X40)

92700-08040-0B

$2.02

17

SCREW, PAN (5X28)

93500-05028-0G

$1.49

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

PIN, DOWEL (10X20)

94301-10200

$2.35

20

BOLT, FLANGE (6X12) This part replaces 96000-06012-07.

96001-06012-07

$1.72

20

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

21

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

21

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

22

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

22

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

23

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

23

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
