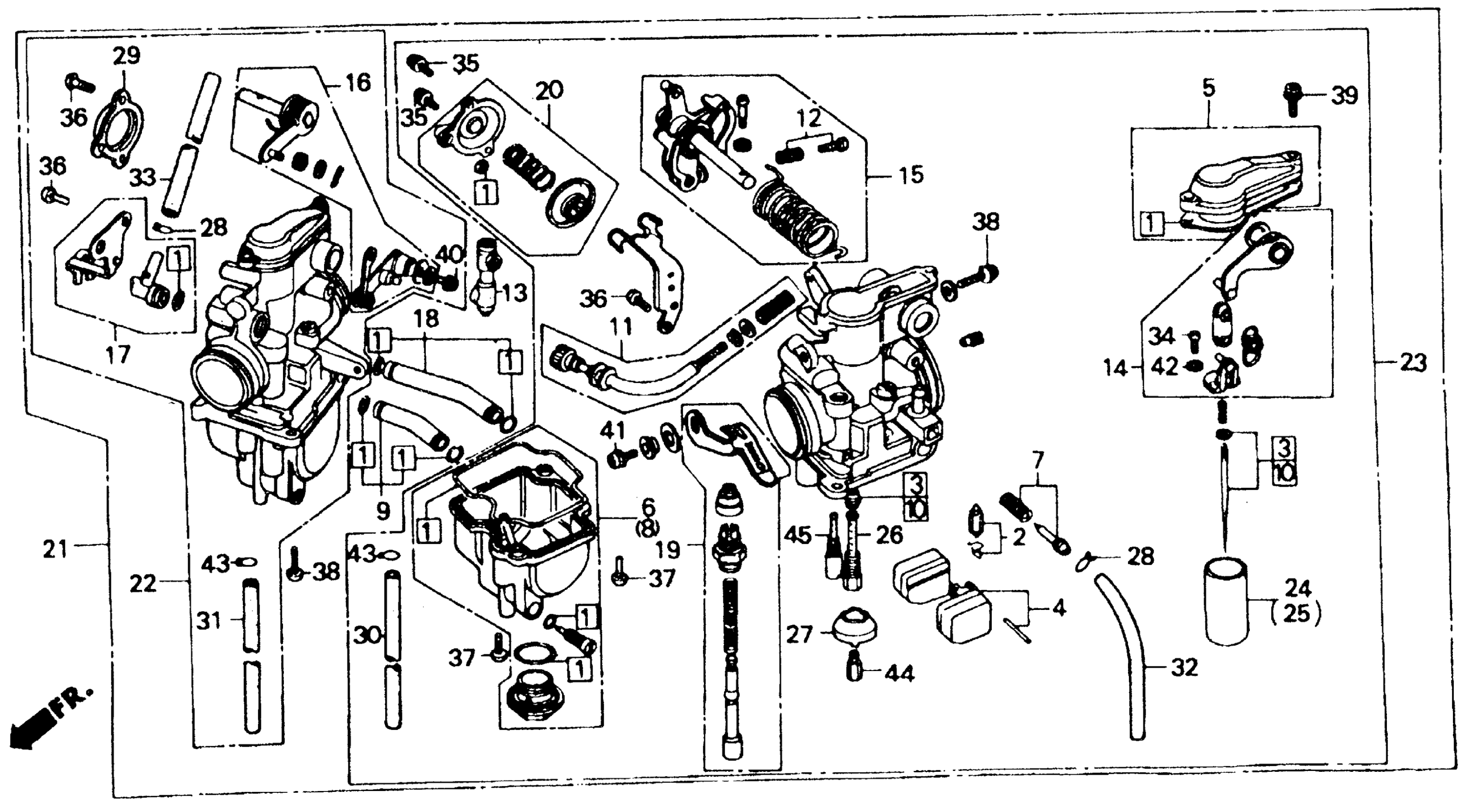

Honda XR600RA (85) MOTORCYCLE, JPN, VIN# JH2PE040-FK000024 TO JH2PE040-FK003185 CARBURETOR 85-87 Diagram

GASKET SET

16010-MG3-771

$46.01

VALVE SET, FLOAT This part replaces 16011-KG0-891.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

NEEDLE SET, JET

16012-MK2-004

Unavailable

FLOAT SET

16013-KG0-891

Unavailable

TOP SET

16014-MG2-601

Unavailable

CHAMBER SET, FLOAT This part replaces 16015-MK2-004.

16015-MK2-014

Unavailable

CHAMBER SET, FLOAT

16015-MK2-014

Unavailable

SCREW SET

16016-MG3-004

Unavailable

CHAMBER SET, FLOAT

16023-MK2-004

Unavailable

JOINT SET, FUEL

16026-KF0-004

Unavailable

NEEDLE SET, SECONDARY JET

16027-MK2-004

Unavailable

SCREW SET

16028-KF0-004

Unavailable

SCREW SET

16029-KG0-004

Unavailable

HOLDER SET, ADJ. (NOT AVAILABLE)

16030-KF0-004

Unavailable

ARM SET, PRIMARY LINK (NOT AVAILABLE)

16031-MG3-004

Unavailable

LINK SET, PRIMARY THROTTLE This part replaces 16032-MK2-004.

16032-MK2-014

Unavailable

LINK SET, PRIMARY THROTTLE

16032-MK2-014

Unavailable

LINK SET, LEVER This part replaces 16035-MK2-004.

16035-MK2-014

Unavailable

LINK SET, LEVER

16035-MK2-014

Unavailable

JOINT SET, FUEL

16037-MG3-004

Unavailable

JOINT SET, FUEL

16042-KK0-771

$14.52

VALVE SET, STARTER This part replaces 16046-MK2-004.

16046-MK2-014

Unavailable

VALVE SET, STARTER

16046-MK2-014

Unavailable

VALVE SET, AIR CUT

16048-KG0-891

Unavailable

CARBURETOR ASSY. This part replaces 16100-MK2-034.

16100-MK2-054

Unavailable

CARBURETOR ASSY., R.

16101-MK2-004

Unavailable

CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-MK2-004.

16102-MK2-034

Unavailable

CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-MK2-014.

16102-MK2-034

Unavailable

VALVE, PRIMARY THROTTLE

16111-MK2-004

Unavailable

VALVE, THROTTLE (A)

16112-MG3-004

Unavailable

HOLDER, NEEDLE JET

16165-MG2-761

Unavailable

HOLDER, JET

16168-KF0-004

Unavailable

CLIP, TUBE

16179-KE5-004

Unavailable

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

PIPE, OVERFLOW This part replaces 16198-MG3-004.

16198-ML4-405

Unavailable

PIPE, OVERFLOW

16198-ML4-405

Unavailable

TUBE, OVERFLOW (440MM)

16198-ML4-405

Unavailable

PIPE, OVERFLOW This part replaces 16199-KF0-004.

16198-ML4-405

Unavailable

TUBE, AIR VENT This part replaces 16199-KF0-771.

16199-MG3-405

Unavailable

TUBE, AIR VENT

16199-MG3-405

Unavailable

PIPE, AIR VENT (R)

16198-ML4-405

Unavailable

PIPE, OVERFLOW This part replaces 16199-KF0-004.

16198-ML4-405

Unavailable

PIPE, OVERFLOW This part replaces 16199-KM3-004.

16198-ML4-405

Unavailable

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW, PAN (4X10)

93500-04010-0H

$1.49

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

SCREW, PAN (4X14)

93500-04014-0H

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-1H.

93500-05012-0H

$1.49

SCREW, PAN (5X12)

93500-05012-0H

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

SCREW-WASHER (4X20)

93892-04020-08

Unavailable

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

SCREW-WASHER (5X14)

93892-05014-08

$1.49

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

JET, MAIN (#122)

99101-357-1220

$17.99

JET, SLOW (#45)

99103-GC8-0450

Unavailable
