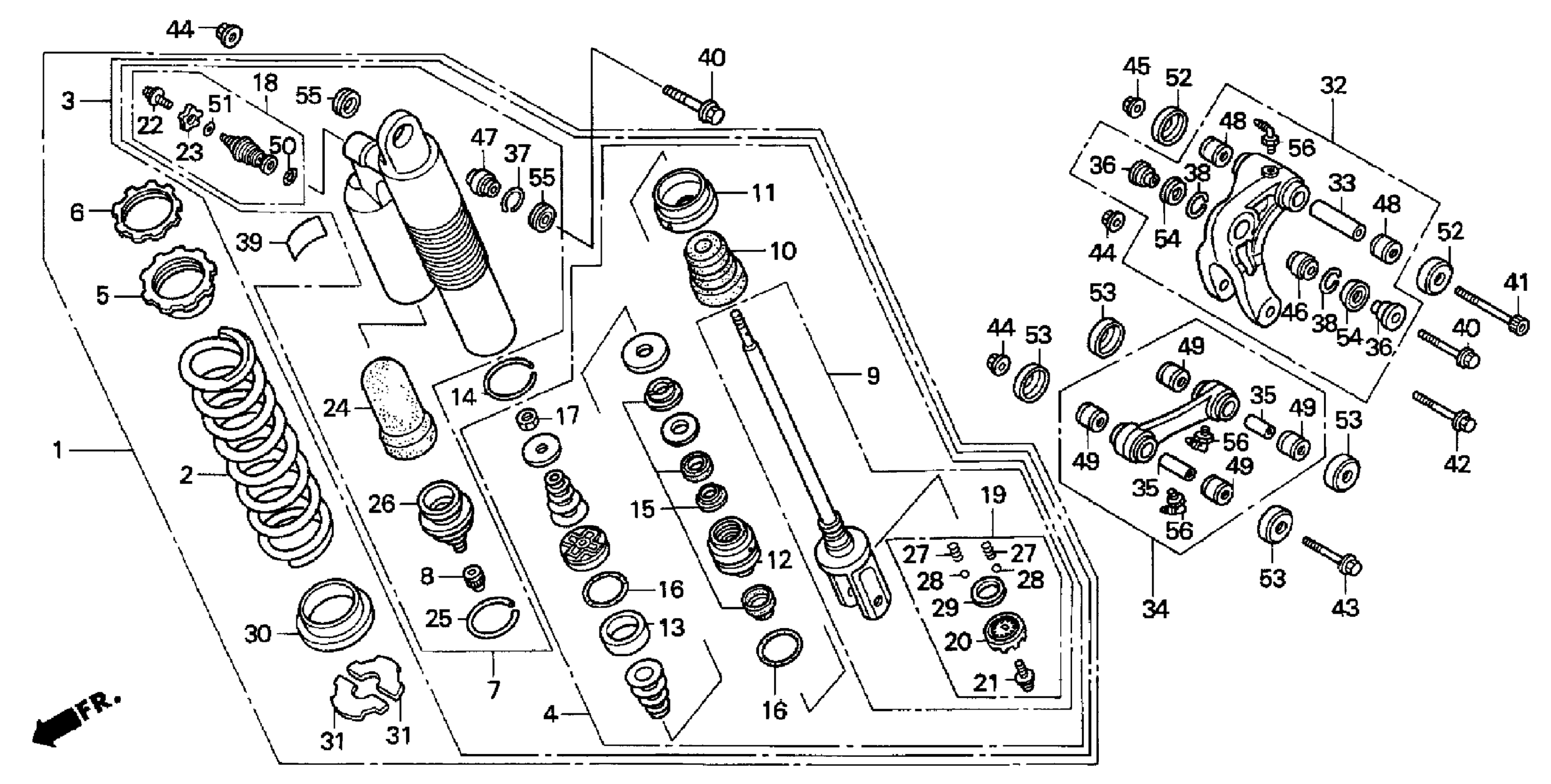

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR.

52400-MAG-861

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-MAG-861

Unavailable

3

DAMPER, RR. (SHOWA)

52410-MAG-701

Unavailable

4

ROD, PISTON

52421-MAG-701

Unavailable

5

ADJUSTER, SPRING

52422-KS7-701

$33.79

6

NUT, ADJUSTER

52423-KS7-701

$26.16

7

CASE, SHOCK ABSORBER

52425-MN1-681

Unavailable

8

CAP, AIR VALVE

52425-169-003

$4.94

9

ROD

52426-MAG-701

Unavailable

10

RUBBER, STOPPER

52427-MN1-671

$17.76

11

PLATE, END (SHOWA)

52428-KA4-832

Unavailable

12

CASE, ROD GUIDE

52429-MN1-681

Unavailable

13

RING, PISTON

52431-KA4-831

$15.90

14

RING, STOPPER

52435-KS7-831

Unavailable

15

OIL SEAL SET

52436-MN1-680

$46.95

16

O-RING SET

52437-KA4-841

$9.52

17

NUT, HEX. (12MM)

52438-KA4-741

$2.92

18

BOLT, PLUG

52440-MN1-681

Unavailable

19

PLATE SET, TENSION ADJUSTING

52442-MN1-671

$27.62

20

PLATE, TENSION ADJUSTING

52443-MN1-671

$11.30

21

SCREW

52448-KF0-003

$2.90

22

SCREW, CROSS-RECESSED HEAD MACHINE

52448-KS7-003

Unavailable

23

PLATE B, ADJUSTING (SHOWA)

52449-ML3-841

Unavailable

24

BLADDER (SHOWA)

52451-MN1-681

$25.74

25

RING, STOPPER

52452-MN1-681

Unavailable

26

CAP, CHAMBER (SHOWA)

52453-MN1-681

Unavailable

27

SPRING, CLICK

52455-KF0-003

$4.97

28

BALL

52456-KF0-003

$3.28

29

SEAL, RING

52457-KN5-003

$7.18

30

SEAT C, SPRING

52458-MN1-681

$20.41

31

STOPPER, SPRING SEAT

52459-MN1-681

$22.44

32

ARM ASSY., CUSHION

52460-KN5-000

Unavailable

33

COLLAR, CUSHION ARM PIVOT

52463-KN5-000

$20.30

34

ROD ASSY., CUSHION CONNECTING

52470-MN1-670

Unavailable

35

COLLAR, CUSHION CONNECTING ROD

52473-KN5-000

$12.90

36

COLLAR, DAMPER

52486-KN5-000

$8.57

37

RING, STOPPER

52487-KA4-831

$3.92

38

RING, STOPPER

52487-KN5-000

$3.26

39

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

40

BOLT, FLANGE (10X46)

90103-KE8-003

$8.67

41

BOLT, SOCKET (12X102)

90128-MN1-670

$16.38

42

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

43

BOLT, FLANGE (10X65)

90151-MG3-000

$12.61

44

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

45

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

46

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

47

BEARING, SPHERICAL (10.1MM)

91077-KS7-013

$40.64

48

BEARING, CUSHION ARM (NTN)

91078-KN5-003

$28.44

49

BEARING, CONNECTING ROD

91079-KN5-003

$12.71

50

O-RING (19.8X2.4)

91256-GE2-003

Unavailable

51

O-RING (13.5X1.5) (SHOWA)

91256-ML3-841

$3.07

52

SEAL, CUSHION ARM

91261-KN5-003

$10.72

53

SEAL, CUSHION CONNECTING ROD PIVOT

91262-KN5-003

$10.10

54

DUST SEAL B

91351-KN5-004

$4.06

55

DUST SEAL, RR. CUSHION (UPPER)

91351-KS7-003

$5.12

56

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
