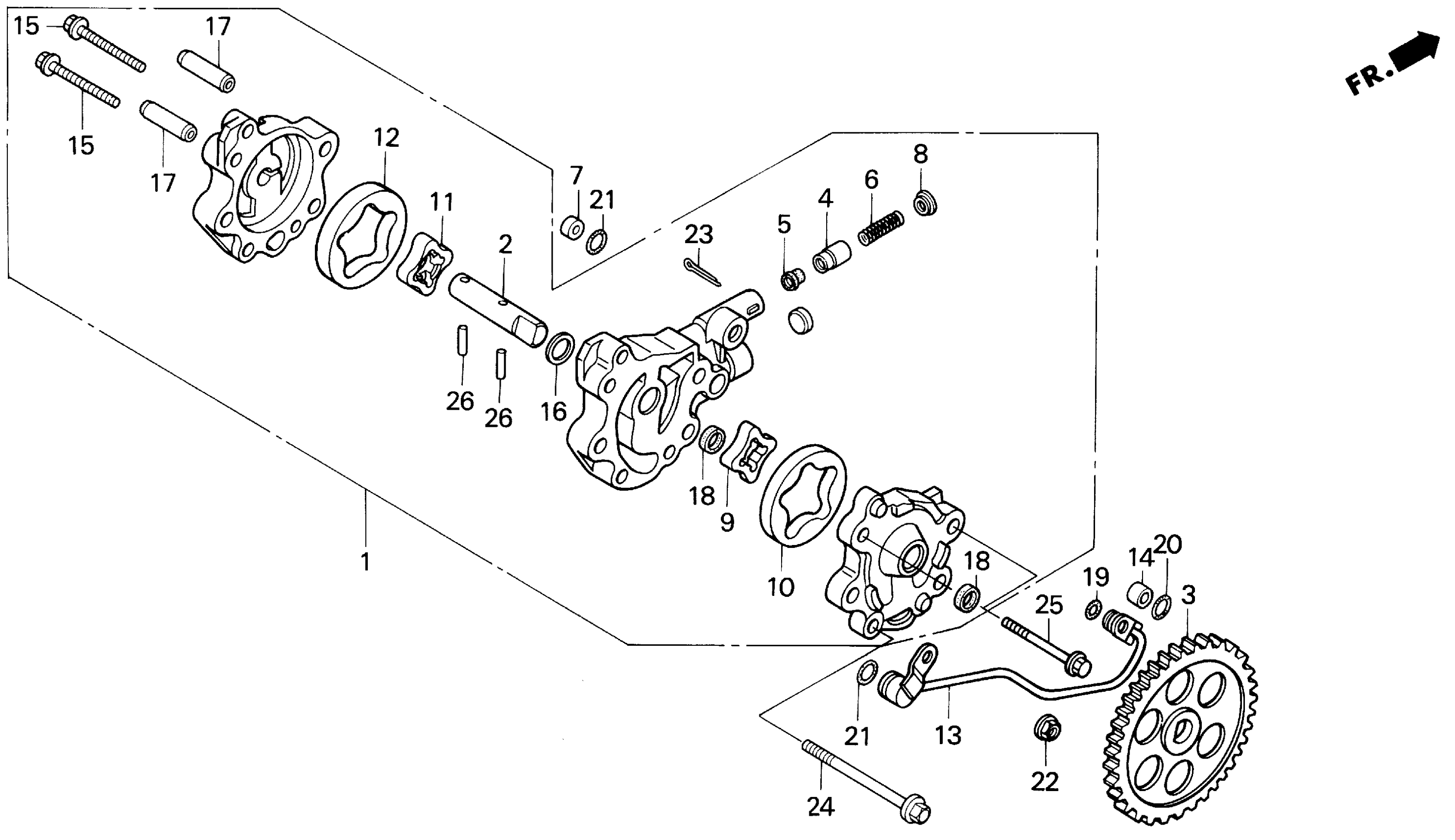

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-MY6-670

$171.90

SHAFT, OIL PUMP

15104-MN1-770

Unavailable

GEAR, OIL PUMP DRIVEN (47T)

15105-MN1-671

$76.79

VALVE, OIL LEAK STOPPER

15106-MG3-000

$16.97

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.53

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.80

ORIFICE (5.5MM)

15109-MG3-000

$12.02

SEAT B, SPRING

15111-MG3-000

$2.92

ROTOR A, OIL PUMP (INNER)

15115-MG3-000

$16.93

ROTOR A, OIL PUMP (OUTER)

15116-MG3-000

$27.30

ROTOR (INNER)

15121-MG3-000

$20.31

ROTOR (OUTER)

15122-MG3-000

$31.31

PIPE, OIL

15510-MK2-000

$51.33

HOLDER

17958-197-300

$3.85

BOLT, FLANGE (6X35) (CT200)

90014-ZE6-000

$2.07

WASHER, THRUST (11MM)

90456-333-000

$2.53

PIN, DOWEL (8X24)

90701-MG3-000

$3.80

OIL SEAL (11X15X3) (KOYO)

91208-MN1-771

$8.66

O-RING (7X1.7)

91301-473-003

$2.72

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.45

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.45

O-RING (9.8X1.9)

91305-PE2-003

$2.45

O-RING (1.5X9.5)

91306-MG3-000

$2.33

NUT, FLANGE (6MM)

94050-06080

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-03200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

ROLLER (4X15.8)

96220-40158

$1.49
