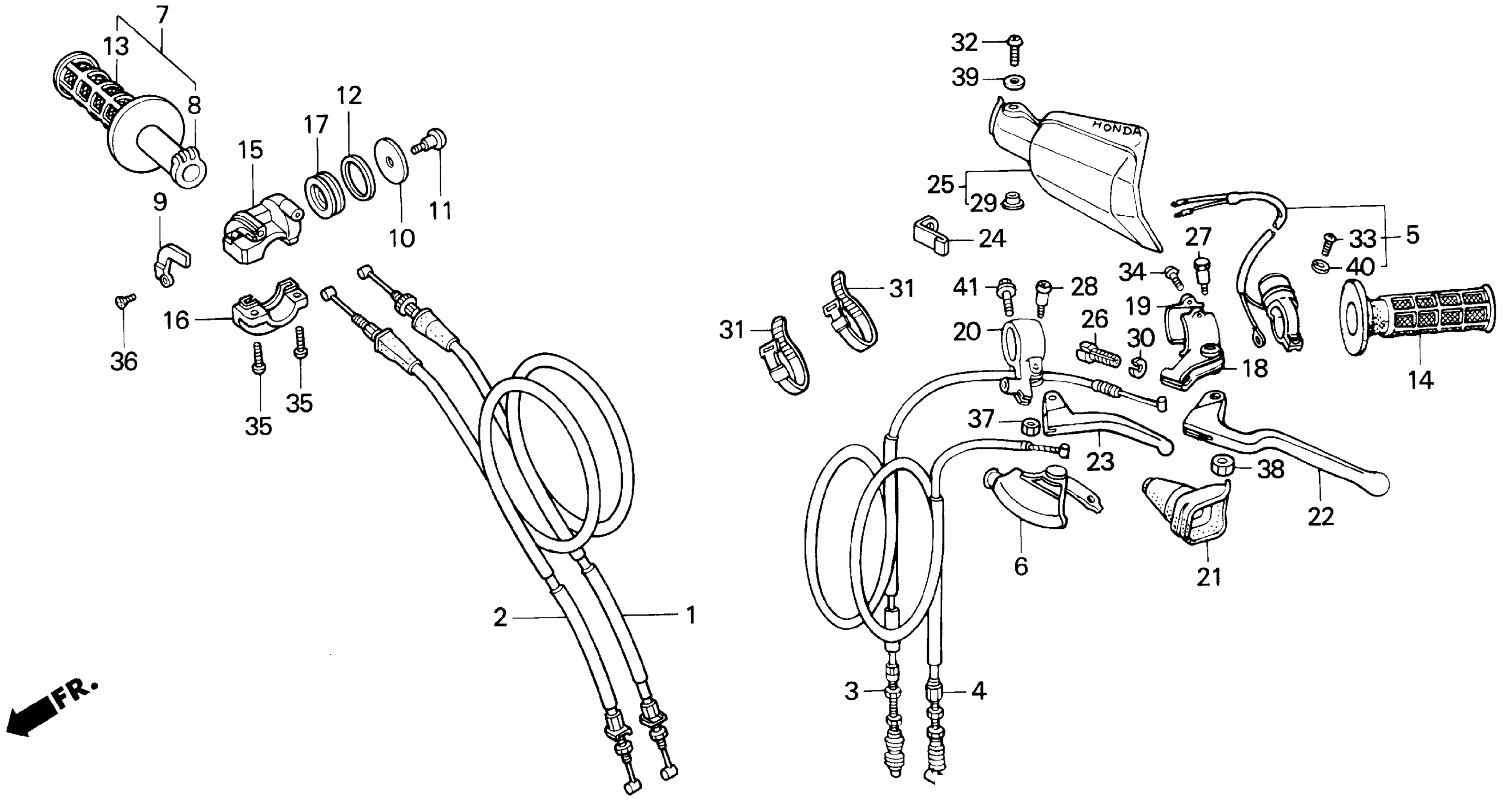

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MN1-680

Unavailable

2

CABLE B, THROTTLE

17920-MN1-671

Unavailable

3

CABLE, CLUTCH

22870-MN1-000

$27.84

4

CABLE, DECOMPRESSION

22890-MN1-650

Unavailable

5

SWITCH ASSY., STOP

35130-MN1-670

$32.97

6

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$14.19

7

GRIP ASSY., THROTTLE This part replaces 53140-429-000.

53140-429-010

$33.38

7

GRIP ASSY., THROTTLE

53140-429-010

$33.38

9

SLIDER, THROTTLE

53162-MN1-670

$8.58

10

COVER, THROTTLE PULLEY

53163-MN1-670

$8.27

11

SCREW, THROTTLE PULLEY PIVOT

53164-MN1-670

$4.66

12

GASKET, THROTTLE PULLEY

53165-MN1-670

$2.62

13

GRIP, R. HANDLE

53165-GFW-305

$10.87

13

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

14

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$8.47

14

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

15

HOUSING, THROTTLE (UPPER)

53167-MN1-670

$26.59

16

HOUSING, THROTTLE (LOWER)

53168-MN1-670

$17.06

17

PULLEY, THROTTLE

53169-MN1-670

$12.62

18

BRACKET, L. HANDLEBAR

53172-429-770

$29.75

19

HOLDER, LEVER BRACKET

53173-376-000

$9.82

20

BRACKET, DECOMPRESSION LEVER

53173-435-730

$33.49

21

COVER, L. HANDLE LEVER

53177-KN5-670

$8.45

22

LEVER, L. HANDLEBAR

53178-KF0-000

$34.98

23

LEVER, DECOMPRESSION

53180-MAG-670

Unavailable

24

PLATE, GUARD SETTING

53181-KN5-670

$6.13

25

GUARD, L. KNUCKLE *R134* (FIGHTING RED)

53185-KN5-670ZD

Unavailable

26

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

27

BOLT, LEVER PIVOT

90114-KN5-670

$8.08

28

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.48

29

COLLAR (6X4)

90127-KF0-770

$3.18

30

NUT, FIXING

90321-315-670

$6.80

31

BAND, WIRE

90650-KW3-000

$4.16

32

BOLT, RECESSED (5X8)

92301-05008-0A

$1.20

33

SCREW, PAN (4X12)

93500-04012-0A

$0.75

33

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

34

SCREW, PAN (5X20)

93500-05020-0G

$0.75

35

SCREW, PAN (6X16)

93500-06016-0G

$0.86

36

SCREW, OVAL (4X10)

93700-04010-0G

$0.43

36

SCREW, OVAL (4X10) This part replaces 93700-04010-1G.

93700-04010-0G

$0.43

37

NUT, HEX. (5MM)

94001-05000-0S

$2.42

38

NUT, FLANGE (6MM)

94050-06000

$0.59

39

WASHER, PLAIN (5MM)

94103-05000

$0.57

40

WASHER, SPRING (4MM)

94111-04000

$0.97

41

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
