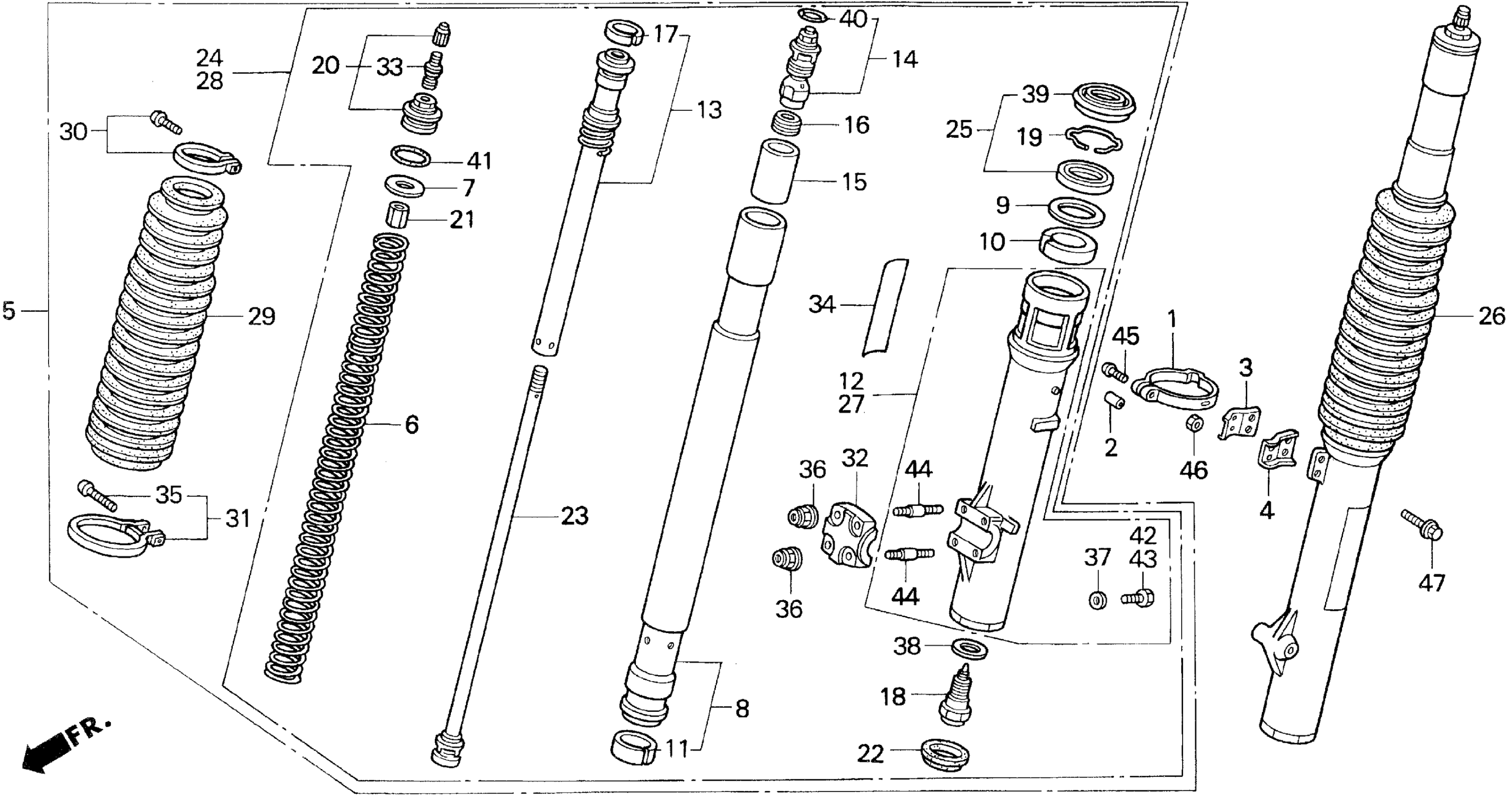

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KT1-670

Unavailable

2

COLLAR, SPEEDOMETER CABLE CLAMP

44833-MN1-680

$3.78

3

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

4

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

6

SPRING, FR. FORK

51401-MN1-681

Unavailable

7

SEAT, SPRING

51405-KA4-711

$5.80

8

PIPE, FR. FORK This part replaces 51410-MN1-681.

51410-MN1-682

$399.49

8

PIPE, FR. FORK

51410-MN1-682

$399.49

9

RING, BACK-UP

51412-KA4-711

$8.66

10

BUSH, GUIDE

51414-MAZ-751

$6.64

10

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$6.64

11

BUSH, SLIDER

51415-MN1-671

$14.34

12

CASE, R. (LOWER) (SHOWA)

51420-KS7-023

$453.06

13

CYLINDER

51430-MN1-681

Unavailable

14

PIECE (LOWER) (SHOWA)

51431-KS7-701

Unavailable

15

PIECE, OIL LOCK (SHOWA)

51432-KS7-003

$22.70

16

END, PIPE (SHOWA)

51433-KS7-003

Unavailable

17

BUSH, CYLINDER

51435-KS7-003

$19.47

18

BOLT, CENTER (SHOWA)

51441-KS7-003

$72.91

19

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

20

BOLT ASSY., FR. FORK (SHOWA)

51450-KS6-831

$65.59

21

NUT, LOCK (SHOWA)

51451-KS7-701

$14.23

22

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.16

23

ROD, PISTON (SHOWA)

51480-KS7-701

Unavailable

24

FORK SUB-ASSY., R. FR. (SHOWA)

51480-MAG-701

Unavailable

25

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$27.40

27

CASE, L. (LOWER)

51520-MN1-013

Unavailable

28

FORK SUB-ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51580-MAG-701

Unavailable

29

BOOT, FR. FORK This part replaces 51611-MN1-671ZD.

51611-MN1-673

$45.55

30

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$9.59

31

BAND, BOOT (LOWER) (SHOWA)

51613-MK2-003

$7.89

32

HOLDER, AXLE (SHOWA)

51634-KA4-831

$29.39

32

HOLDER, AXLE

51634-MV1-003

Unavailable

33

CORE, VALVE

52426-381-771

Unavailable

35

SCREW, PAN (3.5X25)

90202-MK2-003

$4.20

36

NUT, U (6MM)

90301-473-003

$3.79

38

WASHER, SPECIAL

90544-KS7-003

$2.80

39

DUST SEAL, FR. FORK

91254-KA4-831

$14.83

40

O-RING (15.5X1.5)

91256-GC5-003

$1.38

41

O-RING (35.2X2.4)

91356-KA4-711

$3.51

44

BOLT, STUD (6X25)

92900-06025-0E

$0.94

45

SCREW, PAN (5X28)

93500-05028-0G

$0.62

46

NUT, HEX. (5MM)

94001-05070-0S

$0.94

47

BOLT, FLANGE (6X16)

96300-06016-00

$0.86
