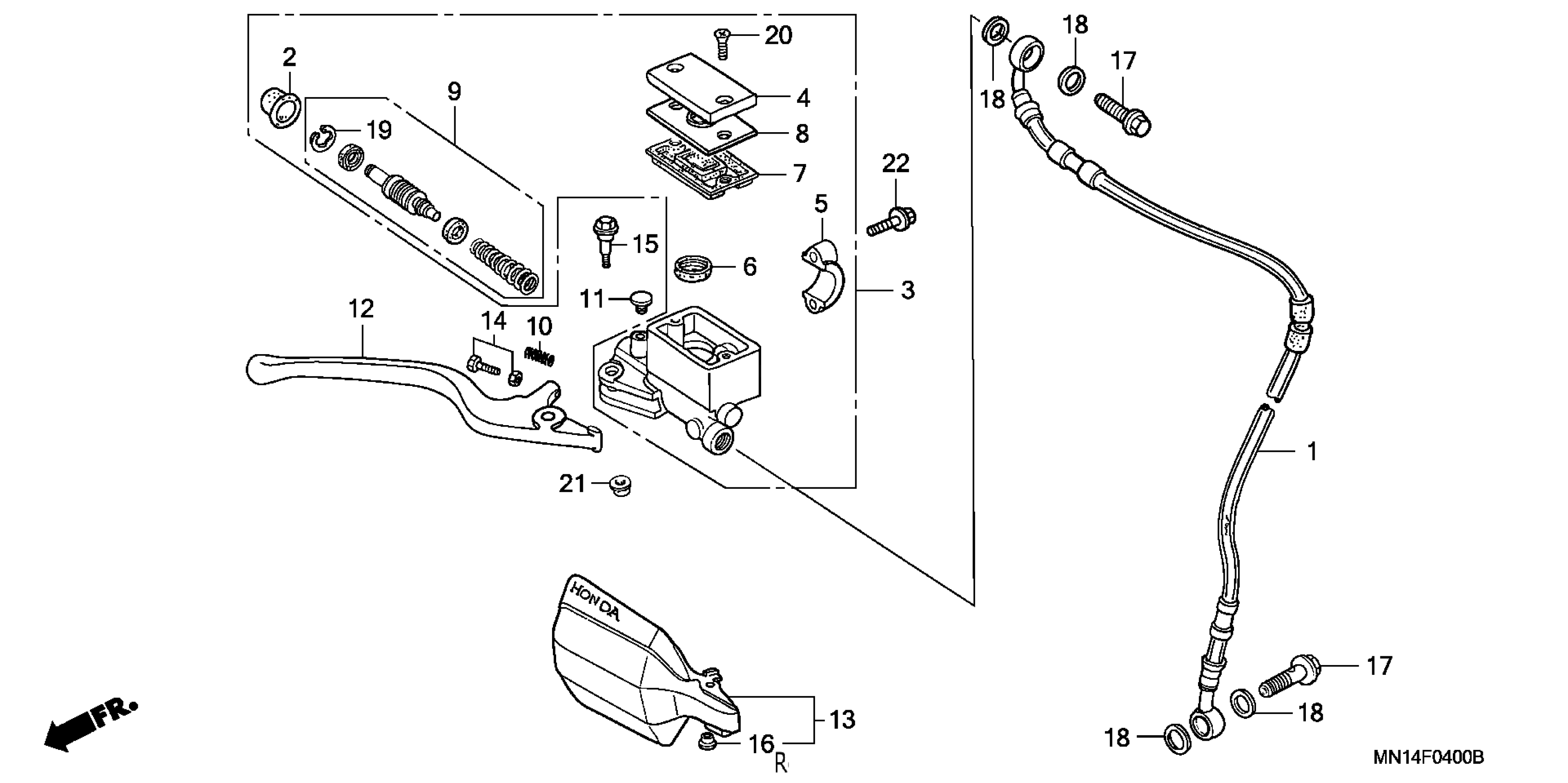

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, FR. BRAKE

45125-MN1-681

Unavailable

2

BOOT

45504-KN5-006

$10.46

3

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-KZ1-305

Unavailable

4

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.97

4

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.97

5

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

6

SEPARATOR

45518-MG3-016

$11.10

7

DIAPHRAGM

45520-MG7-006

$9.73

8

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

9

MASTER CYLINDER SET

45530-MK2-305

Unavailable

10

SPRING, BRAKE LEVER

53174-KN5-006

$2.83

11

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.29

11

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.29

12

LEVER, R. HANDLEBAR

53175-MK2-770

Unavailable

13

GUARD, R. KNUCKLE *R134* (FIGHTING RED)

53180-KN5-000ZD

Unavailable

14

BOLT SET, ADJUSTER This part replaces 90111-KS6-000.

90111-ML3-791

$6.30

14

BOLT SET, ADJUSTER

90111-ML3-791

$6.30

15

BOLT, HANDLE LEVER PIVOT

90113-KF0-770

$5.47

16

COLLAR (6X4)

90127-KF0-770

$3.26

17

BOLT, OIL (10X22)

90145-MS9-612

$6.99

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CIRCLIP

90651-MA5-671

$2.38

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

21

NUT, FLANGE (6MM)

94050-06000

$0.60

22

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
