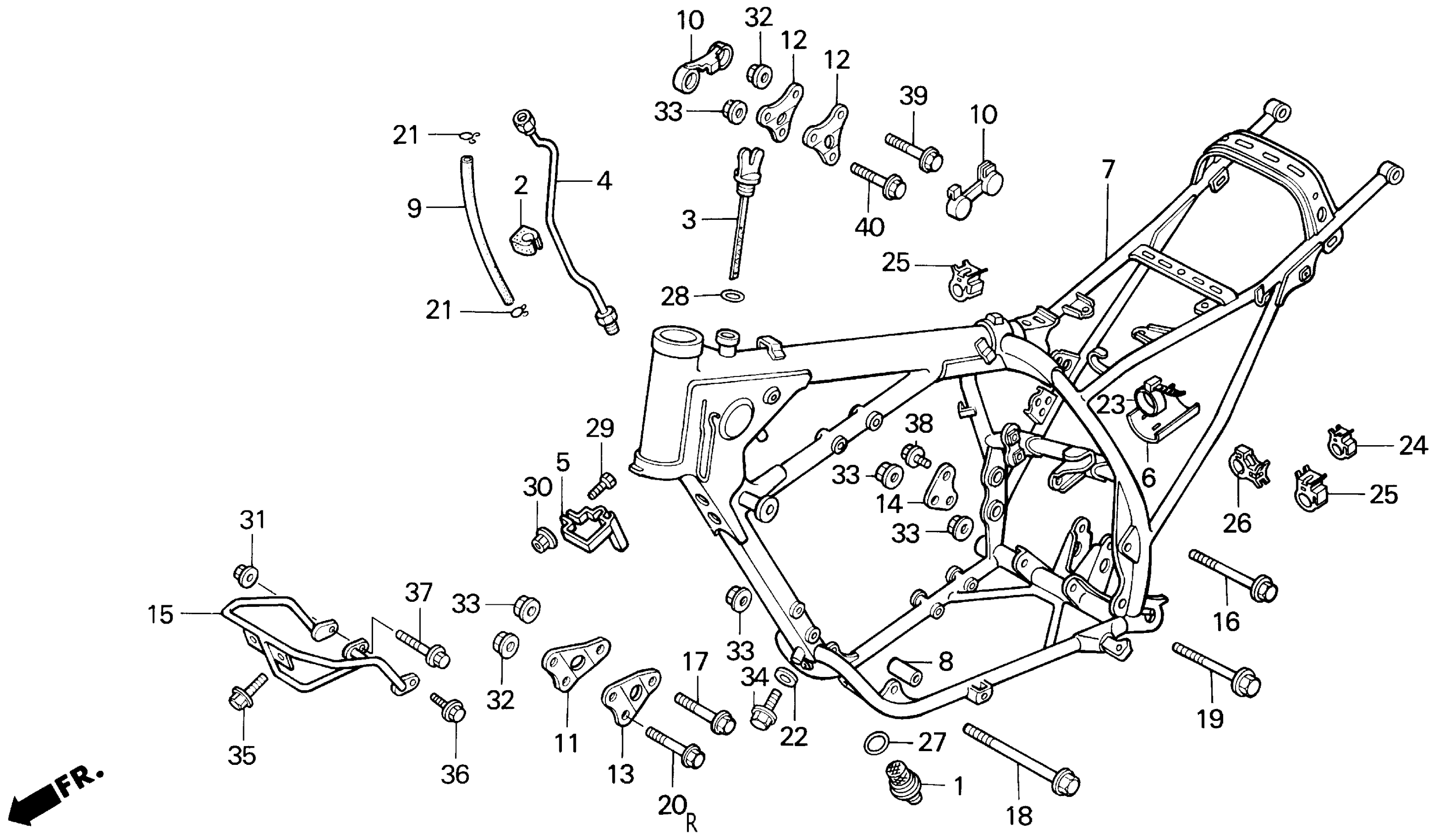

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 FRAME Diagram

STRAINER, OIL

15500-MN1-670

$46.90

RUBBER, OIL PIPE

15603-KT1-670

$5.62

DIPSTICK, OIL

15650-MG3-000

$28.90

PIPE, OIL

15710-MY6-670

$58.38

CLAMP, OIL PIPE

15711-MN1-700

$13.19

RUBBER, PROTECTOR

32618-MN1-650

$5.64

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MAG-670ZB

Unavailable

COLLAR, ENGINE HANGER (LOWER)

50140-KF0-000

Unavailable

TUBE, BREATHER (7.3X335)

50185-MN1-670

Unavailable

RUBBER, R. TANK GUARD

50211-KN5-670

$11.78

PLATE, R. FR. ENGINE HANGER

50221-MN1-670

$30.08

PLATE, ENGINE HANGER (UPPER)

50222-MN9-650

$30.08

PLATE, L. FR. ENGINE HANGER

50223-MN1-670

$30.08

PLATE, R. RR. ENGINE HANGER (UPPER)

50224-MN1-670

$30.08

PIPE, SKID

50360-MN1-670

Unavailable

BOLT, ALTERNATOR

90057-671-000

$20.77

BOLT, FLANGE (10X75)

90101-KZ1-600

Unavailable

BOLT, FLANGE (10X105)

90116-MN1-670

$8.25

BOLT, FLANGE (10X110)

90117-MN1-670

$7.50

BOLT, FLANGE (8X75)

90217-KJ2-000

Unavailable

CLAMP, TUBE (D12.5)

90311-MN1-670

Unavailable

WASHER, OIL BOLT

90545-300-000

$3.99

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

$2.92

O-RING (25X3)

91305-384-750

$2.92

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

BOLT, HEX. (5X22)

92101-05022-0G

$4.07

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, DRAIN PLUG

90131-ZE1-000

$2.43

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

BOLT, FLANGE (6X70)

96300-06070-00

$3.03

BOLT, FLANGE (8X18)

96300-08018-00

$1.80

BOLT, FLANGE (8X65)

96400-08065-00

$2.25

BOLT, FLANGE (10X65)

96400-10065-00

$2.90
