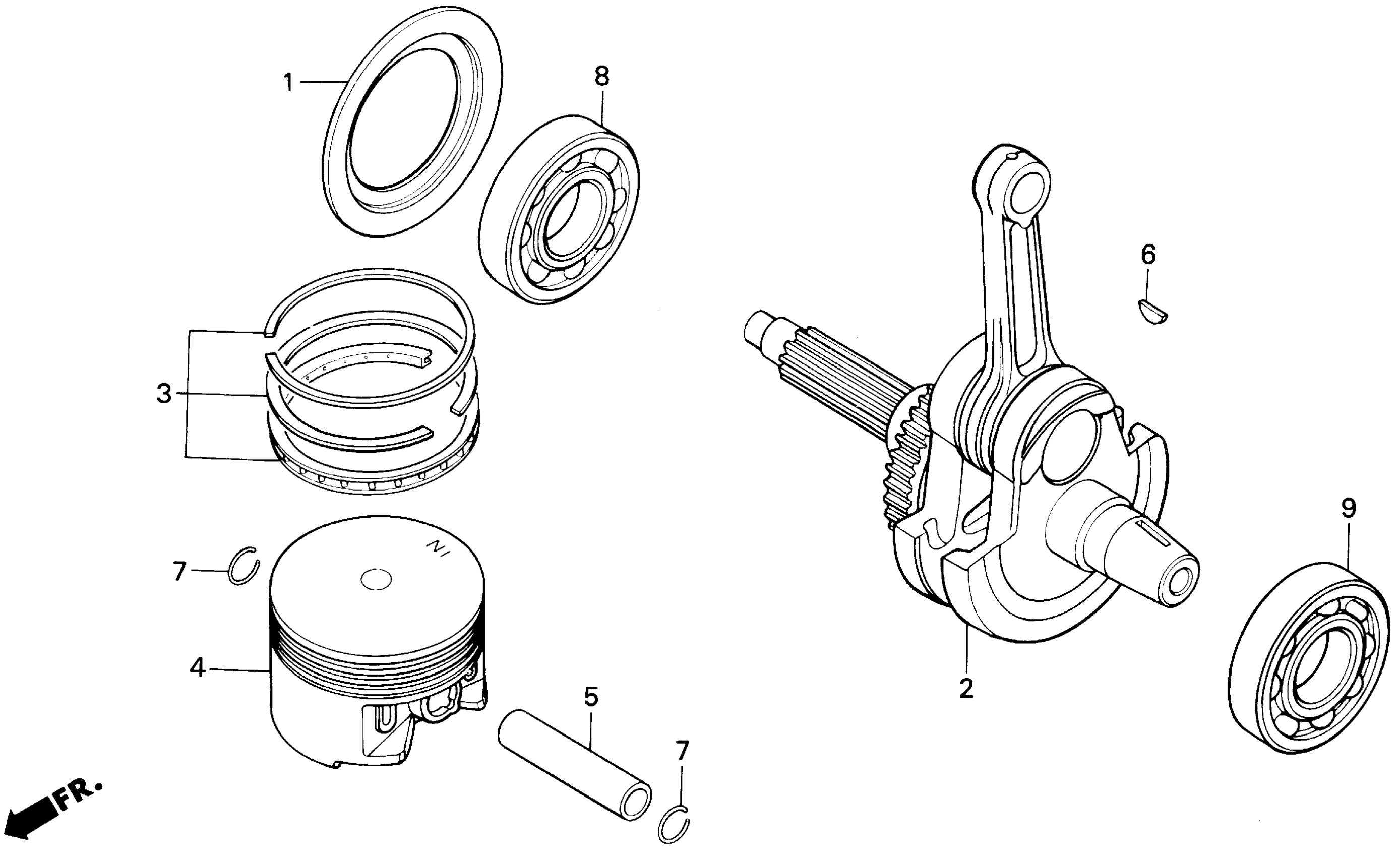

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 CRANKSHAFT Diagram

PLATE, MAIN BEARING

11215-MG2-000

Unavailable

CRANKSHAFT

13000-MN1-671

Unavailable

RING SET, PISTON (STD)

13011-MN1-305

Unavailable

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-MN1-305

Unavailable

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-MN1-305

Unavailable

PISTON (STD)

13101-MN1-680

Unavailable

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MN1-305

Unavailable

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MN1-305

Unavailable

PIN, PISTON

13111-MN1-670

Unavailable

KEY, SPECIAL WOODRUFF (25X18)

90701-KAS-900

$5.58

CLIP, PISTON PIN

90602-MN1-670

$1.54

BEARING, RADIAL BALL (6307)

91001-MK2-003

$92.86

BEARING, RADIAL BALL (6308)

91001-MN1-671

$55.64
