Description

Price

1

CRANKCASE, R.

11100-MN1-670

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-MN1-700.

11191-MN1-702

$21.60

3

CRANKCASE, L.

11200-MN1-670

Unavailable

4

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$9.90

5

HOSE A, OIL

15610-MN1-702

$109.57

6

HOSE B, OIL

15620-MN1-670

$108.25

7

PLATE

15630-MG3-010

$10.43

8

PLATE, BEARING SETTING

23521-MAN-690

$5.90

9

WASHER, LOCK (8MM)

23523-MG2-790

$2.80

10

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.59

11

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

12

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$3.92

13

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$3.95

14

BOLT, SPECIAL (8MM)

90088-MG3-000

$5.74

15

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

15

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.00

16

WASHER, OIL BOLT

90545-300-000

$3.72

17

GASKET, RUBBER (10.5MM)

91302-MG2-792

$3.77

18

BOLT, STUD (6X22)

92900-06022-0E

$1.32

19

BOLT, STUD (6X35)

92900-06035-0E

$1.48

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

21

PIN, DOWEL (14X20)

94301-14200

$2.25

22

BOLT, FLANGE (10X16)

95701-10016-00

$1.16

23

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

24

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

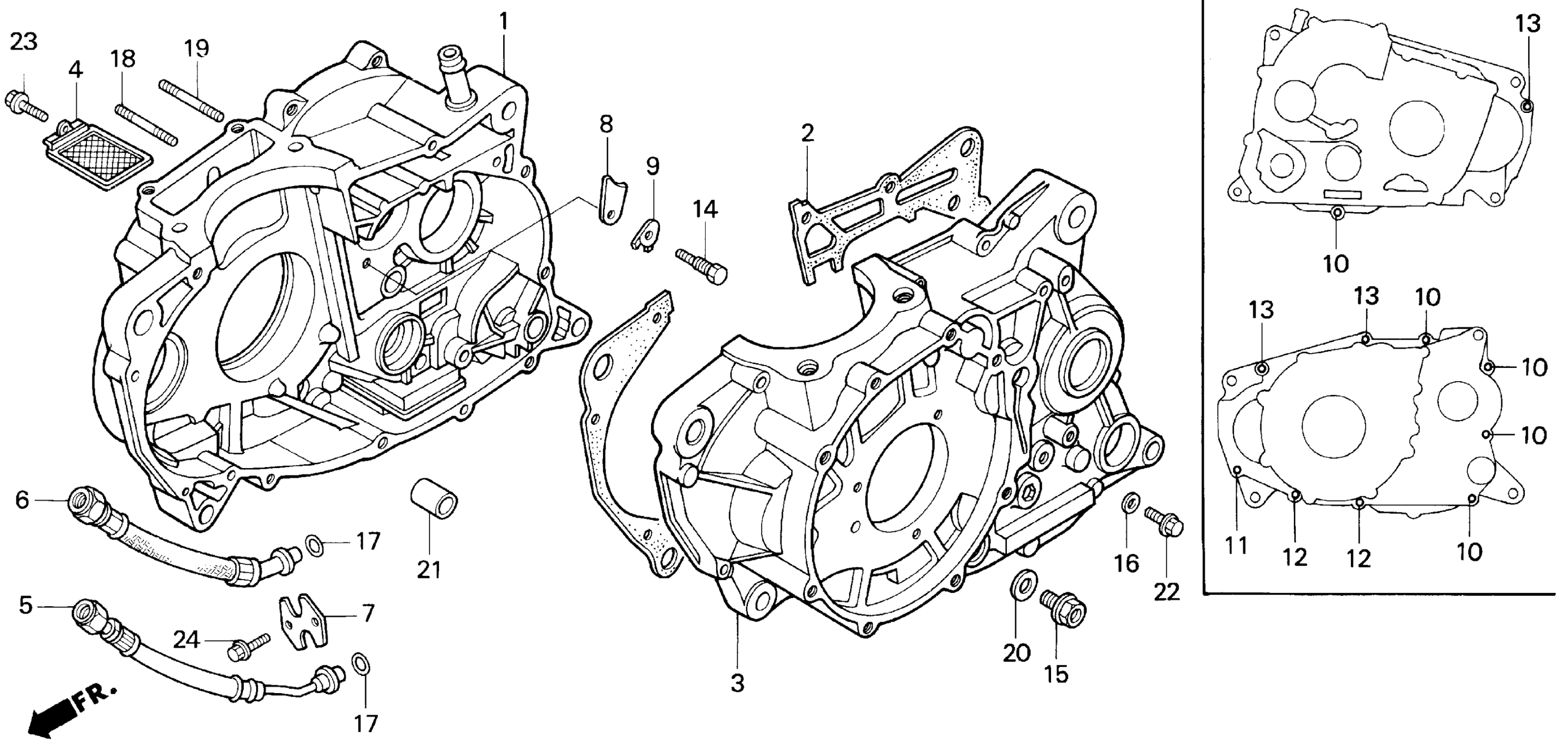

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 CRANKCASE Diagram
