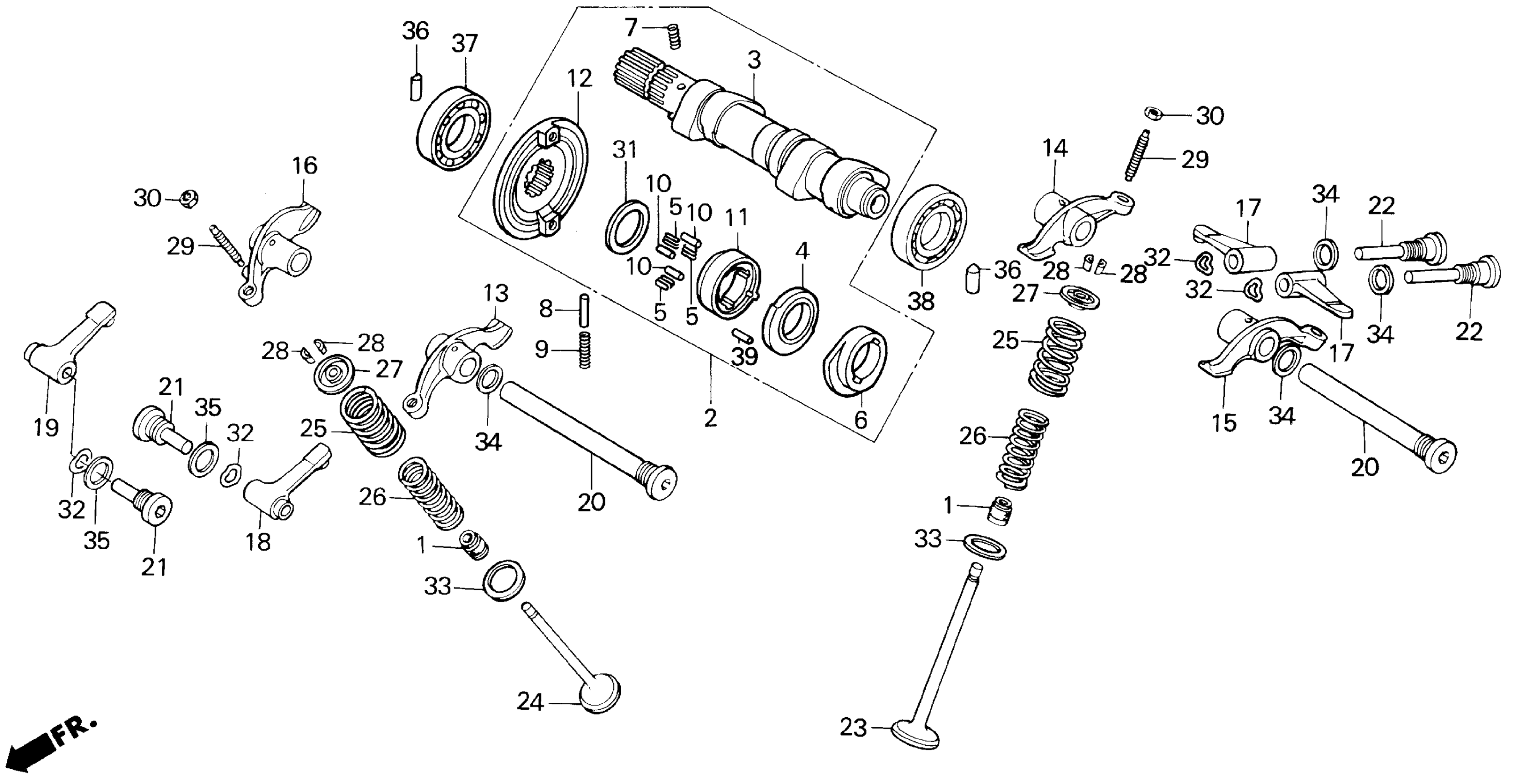

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MN1-671

$10.67

2

CAMSHAFT ASSY.

14000-MN9-020

Unavailable

3

CAMSHAFT

14100-MN9-020

Unavailable

4

CAM, REVERSE

14102-MN1-670

$66.31

5

SPRING, ROLLER

14103-MN1-670

$4.53

6

PLATE, DECOMPRESSION CAM

14105-MAN-690

$46.59

7

SPRING, DECOMPRESSION

14106-MN1-670

$2.97

8

PLUNGER, CAM SETTING

14108-MN1-670

$15.86

9

SPRING, PLUNGER

14109-MN1-670

$3.77

10

ROLLER (4X10)

14115-MN1-670

$5.28

11

CLUTCH OUTER, DECOMPRESSION

14121-MN1-670

$66.31

12

COLLAR, CAM SPROCKET

14325-MN1-670

$72.54

13

ARM A, VALVE ROCKER

14431-MG3-040

$58.84

14

ARM D, VALVE ROCKER

14431-MK4-861

$58.85

15

ARM B, VALVE ROCKER

14441-MG3-040

$58.84

16

ARM C, VALVE ROCKER

14442-MN1-671

$58.85

17

ARM, IN. VALVE SUB-ROCKER

14445-KF0-000

$31.43

18

ARM, L. EX. VALVE SUB-ROCKER

14446-MK5-000

$26.09

19

ARM, R. EX. VALVE SUB-ROCKER

14447-MK5-000

$26.09

20

BOLT, ROCKER ARM SHAFT

14451-MK2-000

$41.56

21

SHAFT A, SUB-ROCKER ARM

14455-MN1-670

$22.70

22

SHAFT B, SUB-ROCKER ARM

14456-MN9-000

$33.38

23

VALVE, IN.

14711-MG3-000

$52.34

24

VALVE, EX.

14721-MAN-620

Unavailable

25

SPRING, VALVE (OUTER) (NIPPON)

14751-MG3-003

$11.23

26

SPRING, VALVE (INNER) (NIPPON)

14761-MG3-003

$8.20

27

RETAINER, VALVE SPRING

14771-MK4-860

$11.26

28

COTTER, VALVE

14781-MB9-000

$4.95

29

SCREW, TAPPET ADJUSTING

90012-MK2-000

$7.93

30

NUT, TAPPET ADJUSTING

90206-657-000

$4.83

31

WASHER, THRUST (17X22X0.75)

90401-MN1-670

$3.64

32

WASHER, WAVE

90406-KF0-003

$2.92

33

WASHER, THRUST (21MM)

90453-473-000

$4.82

34

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

35

WASHER (12MM)

90545-KF0-000

$3.26

36

PIN, DOWEL (10X20)

90702-MN1-670

$5.26

37

BEARING, RADIAL BALL (18X37X9) (NTN)

91002-MN1-671

$40.06

38

BEARING, RADIAL BALL (6904)

91003-KF0-008

$14.20

39

ROLLER (4X10)

96220-40100

$1.49
