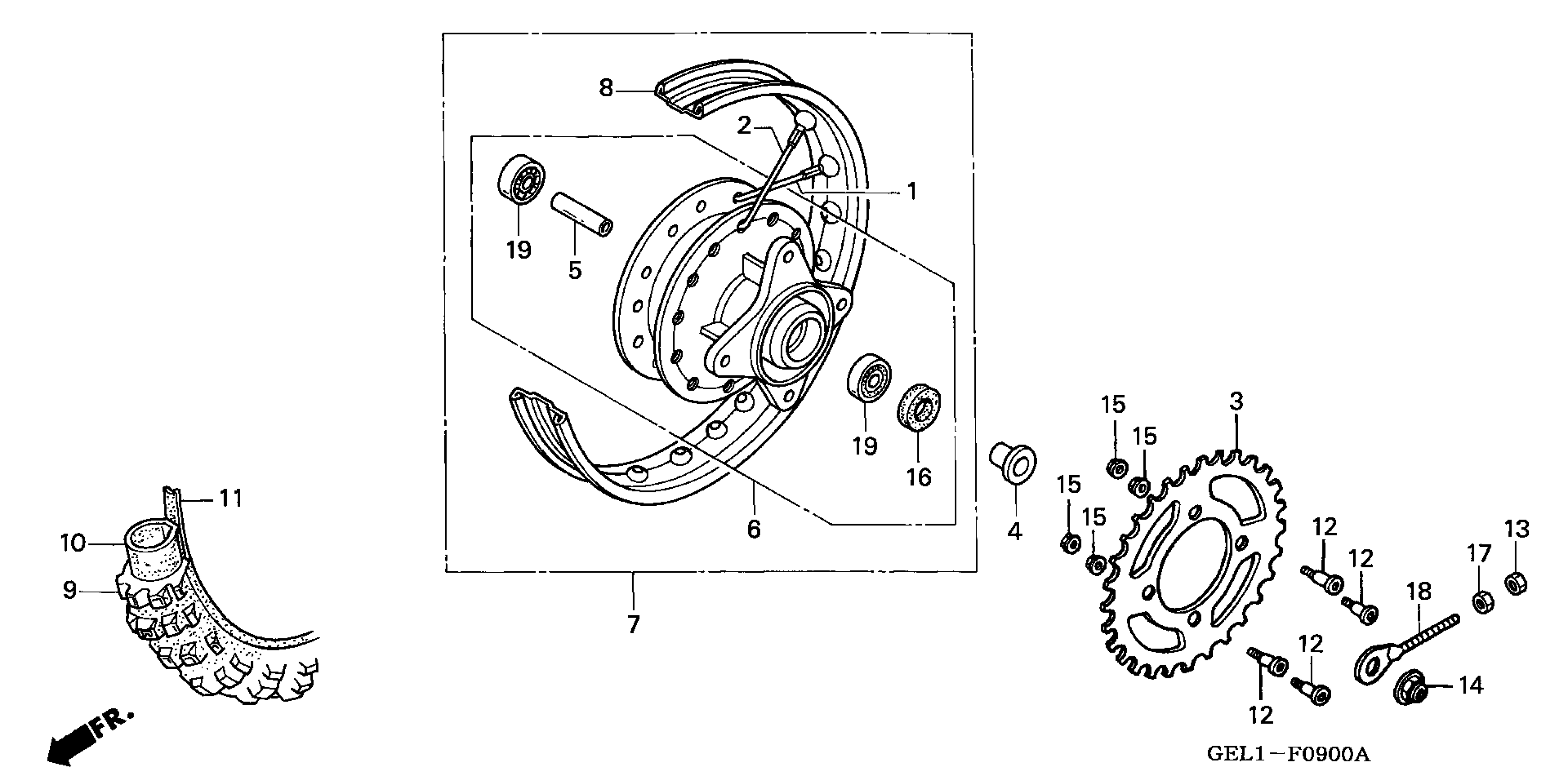

Honda XR50RA (03) MOTORCYCLE, JPN, VIN# JH2AE030-3K300001 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET A

06420-GEL-700

$2.17

2

SPOKE SET B

06421-GEL-700

$2.17

3

SPROCKET, FINAL DRIVEN (37T)

41201-GEL-700

$40.64

4

COLLAR, L. RR. WHEEL SIDE

42312-120-000

$8.40

5

COLLAR, RR. AXLE DISTANCE

42620-GEL-700

$9.25

6

HUB SUB-ASSY., RR.

42635-GEL-700

Unavailable

7

WHEEL SUB-ASSY., RR. (COO)

42650-GEL-305

$236.62

7

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-GEL-700.

42650-GEL-305

$236.62

8

RIM, WHEEL (GOUSHI)

42701-GEL-A01

Unavailable

8

RIM, WHEEL (GOUSHI) This part replaces 42701-GEL-700.

42701-GEL-A01

Unavailable

9

TIRE (2.50-10 4PR) (CHENG SHIN)

42711-GEL-701

$57.52

10

TUBE, TIRE (CHENG SHIN)

42712-GEL-701

$21.92

11

FLAP, TIRE (CHENG SHIN)

42713-GEL-701

$6.15

12

BOLT, SPROCKET FIXING

90128-GCF-670

$4.58

13

NUT, SPECIAL (6MM)

90302-KBP-900

$1.86

14

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

Unavailable

15

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

15

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

16

OIL SEAL (18X32X8)

91251-045-005

$4.70

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

17

NUT, HEX. (6MM)

94001-06200-0S

$1.19

18

ADJUSTER S, R. CHAIN

95014-10010

$4.03

19

BEARING, RADIAL BALL (6201U)

96140-62010-10

$9.22
