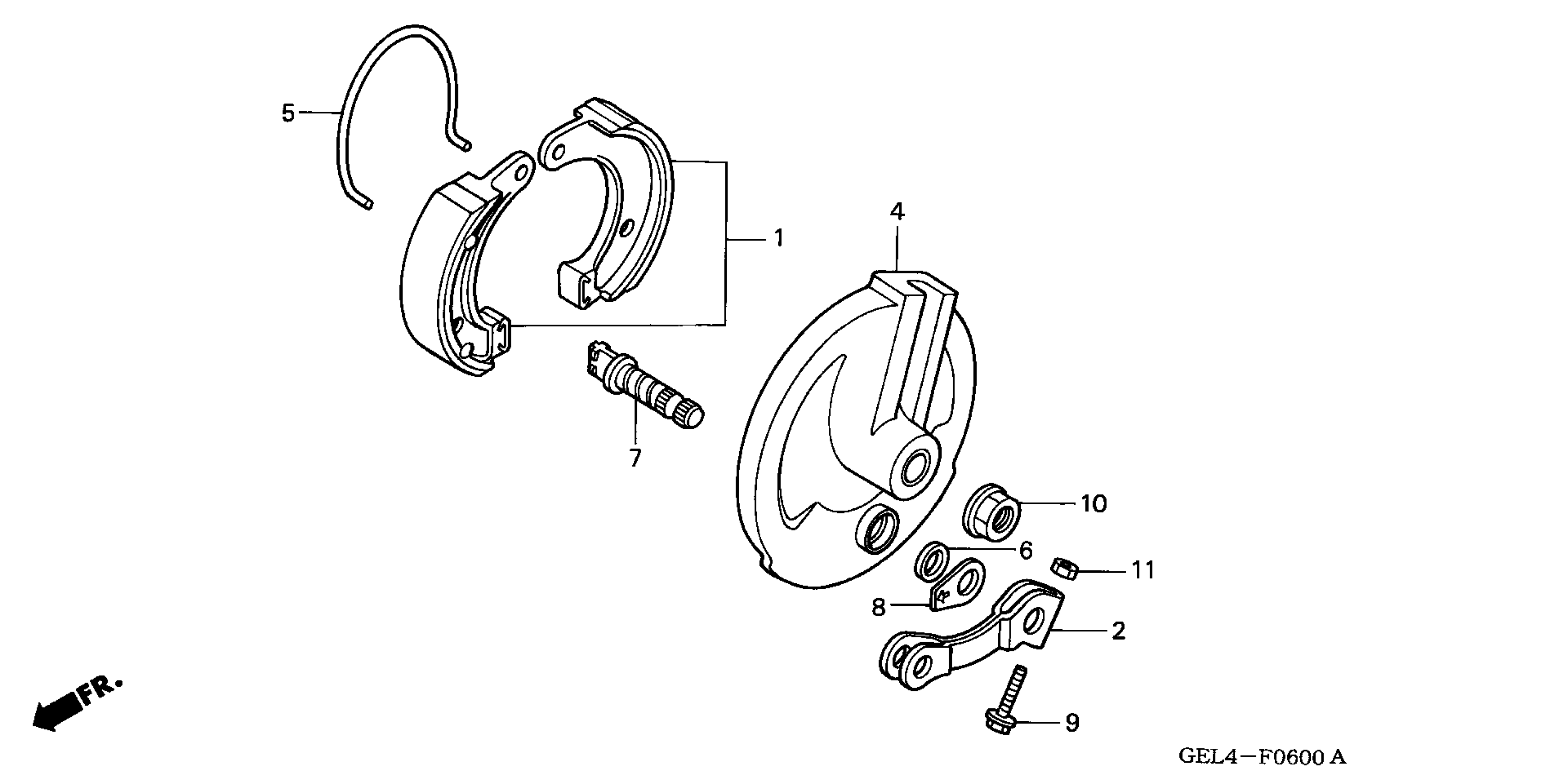

Honda XR50RA (03) MOTORCYCLE, JPN, VIN# JH2AE030-3K300001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE This part replaces 06430-GZ9-003.

06430-131-405

$13.66

SHOE SET, BRAKE

06430-131-405

$13.66

ARM, RR. BRAKE

43410-GEL-700

$7.41

PANEL, FR. BRAKE *NH146M* (ACCURATE SILVER METALLIC)

45100-181-831ZC

$48.28

SPRING, BRAKE SHOE

45133-044-000

$2.20

SEAL, BRAKE CAM

45134-165-890

$1.43

CAM, FR. BRAKE

45141-147-040

$10.11

INDICATOR, BRAKE

45145-GW8-670

$3.39

BOLT, FLANGE (5X25)

90112-GG2-900

$4.20

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

Unavailable

NUT, HEX. (5MM)

94001-05000-0S

$2.42
