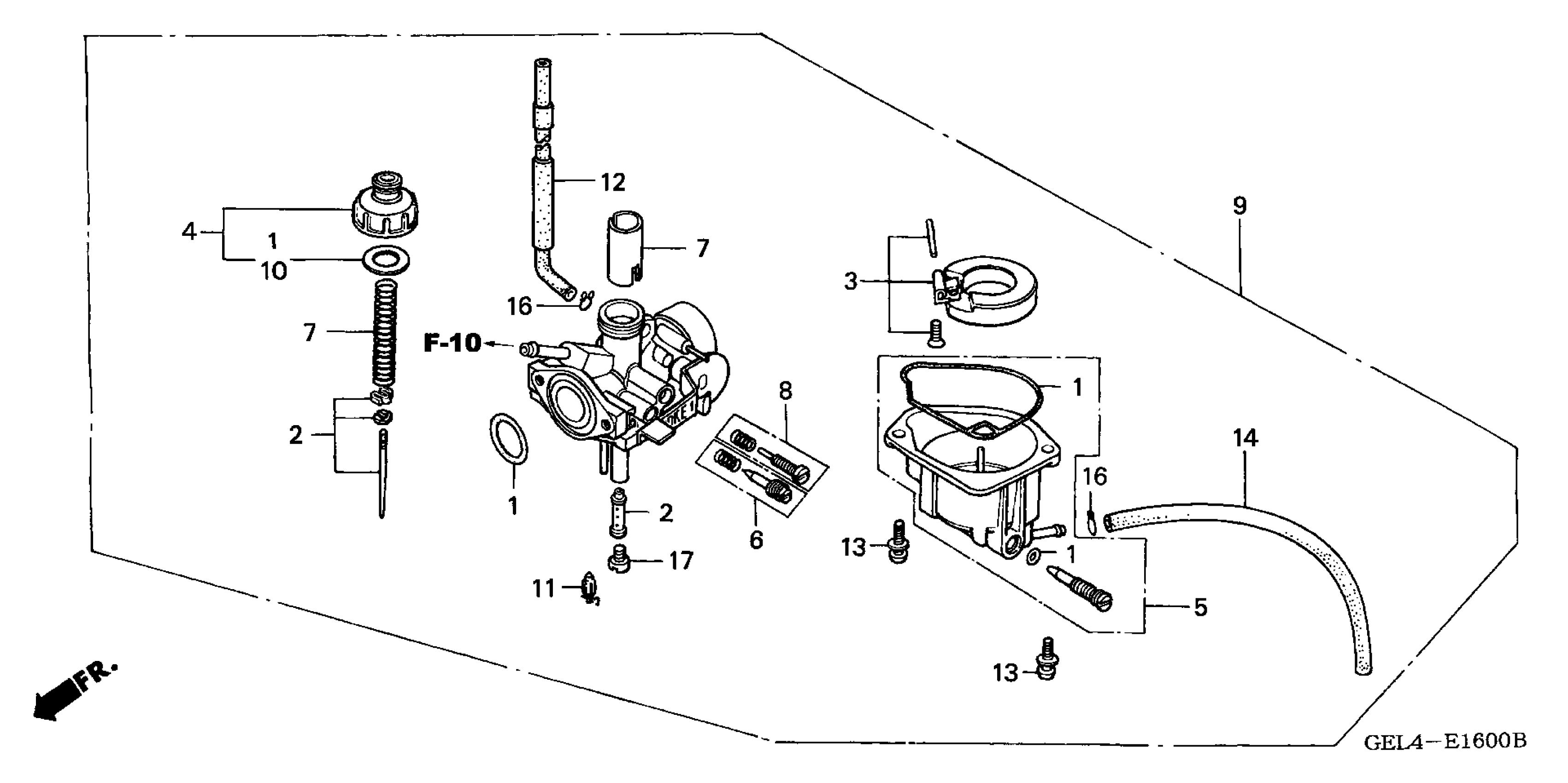

Honda XR50RA (03) MOTORCYCLE, JPN, VIN# JH2AE030-3K300001 CARBURETOR Diagram

GASKET SET

16010-181-305

$18.34

GASKET SET This part replaces 16010-181-831.

16010-181-305

$18.34

NEEDLE SET, JET

16012-GEL-701

$26.58

FLOAT SET

16013-147-004

$40.06

TOP SET

16014-181-831

Unavailable

CHAMBER SET, FLOAT

16015-099-691

$87.35

SCREW SET

16016-GEL-701

$11.53

VALVE SET, THROTTLE This part replaces 16022-GW8-671.

16022-GW8-672

$34.34

VALVE SET, THROTTLE

16022-GW8-672

$34.34

SCREW SET B

16028-GC8-004

$14.69

CARBURETOR ASSY. (PA42A B) (FRAME NO.) This part replaces 16100-GEL-701.

16100-GEL-702

$149.06

CARBURETOR ASSY. (PA42A B)

16100-GEL-702

$149.06

GASKET, TOP

16110-181-831

$4.48

VALVE, FLOAT

16155-883-005

$18.05

TUBE, AIR VENT

16199-GEL-701

$4.52

SCREW-WASHER (4X12)

93892-04012-08

$0.58

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

TUBE

16198-GEL-701

$4.41

CLIP, TUBE (B6.5)

95002-02659

$1.00

JET, MAIN (#58)

99101-187-0580

$7.52
