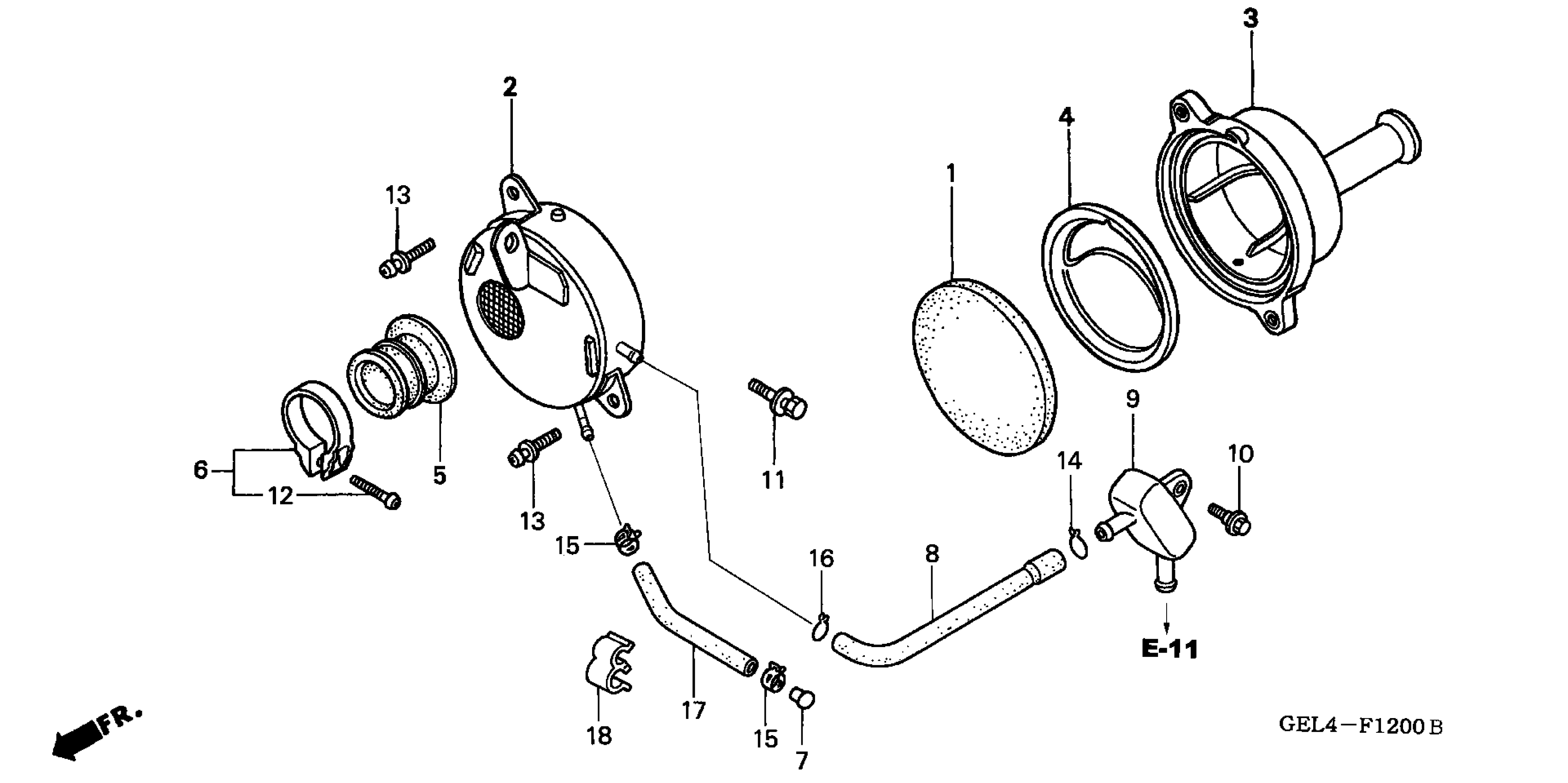

Honda XR50RA (03) MOTORCYCLE, JPN, VIN# JH2AE030-3K300001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17211-165-730

$4.57

HOUSING, AIR CLEANER

17221-GCF-A20

$24.96

COVER, AIR CLEANER HOUSING

17231-GCF-A20

$19.20

PLATE, AIR CLEANER BAFFLE

17241-GCF-670

$9.12

TUBE, AIR CLEANER

17253-GW8-670

$8.51

BAND, CARBURETOR INSULATOR

17256-KG4-000

$11.36

PLUG, BREATHER TUBE

17370-GCF-A20

$0.81

TUBE B, BREATHER

17372-GEL-700

$5.56

TANK, STORAGE

17551-GCF-A20

$25.11

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

BOLT, GROUND (6X16)

90149-SE0-003

$7.28

SCREW, PAN (4X20)

93500-04020-0A

$0.82

SCREW-WASHER (5X12)

93892-05012-07

$0.88

CLIP, TUBE (B10)

95002-02100

$1.75

CLAMP, TUBE (D8.5)

95002-40850-08

$2.31

CLIP, TUBE (C9)

95002-50000

$1.16

BULK HOSE, VINYL (5X9X1000) (5X9X210)

95003-11001-60M

$4.71

CLAMP, PIPE

11152-KS4-003

$6.80
