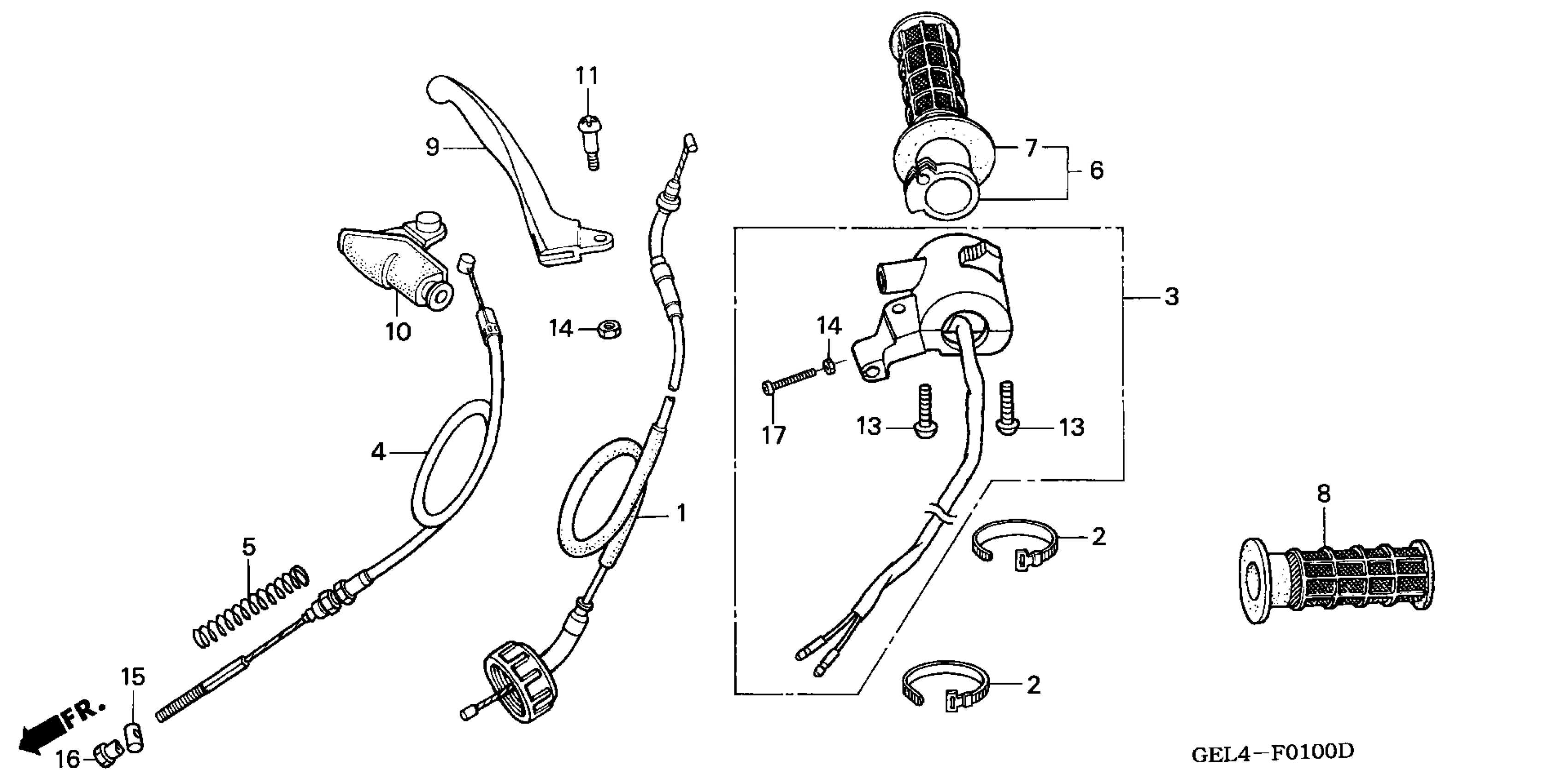

Honda XR50RA (02) MOTORCYCLE, JPN, VIN# JH2AE030-2K200001 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE SET, THROTTLE

17920-GEL-305

$57.55

BAND B1, WIRE

32161-404-000

$2.23

SWITCH SET, ENGINE STOP

35013-GEL-700

$60.04

CABLE, FR. BRAKE

45450-GEL-701

$18.95

SPRING, FR. BRAKE

45454-181-960

$3.78

GRIP, THROTTLE (COO)

53140-GEL-305

$18.42

GRIP, THROTTLE (COO) This part replaces 53140-GEL-700.

53140-GEL-305

$18.42

GRIP, THROTTLE (COO) This part replaces 53140-GEL-701.

53140-GEL-305

$18.42

GRIP,R HANDLE(COO) This part replaces 53165-GF8-000.

53165-GEL-305

$12.60

GRIP, L. HANDLE (COO) This part replaces 53166-GF8-000.

53166-GEL-305

$12.55

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GEL-305.

53175-GGA-305

$12.88

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GR2-010.

53175-GGA-305

$12.88

COVER, R. HANDLE LEVER

53176-170-700

$4.07

SCREW, HANDLE LEVER PIVOT

90115-170-700

$3.74

SCREW, PAN (5X20)

93500-05020-0A

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49
