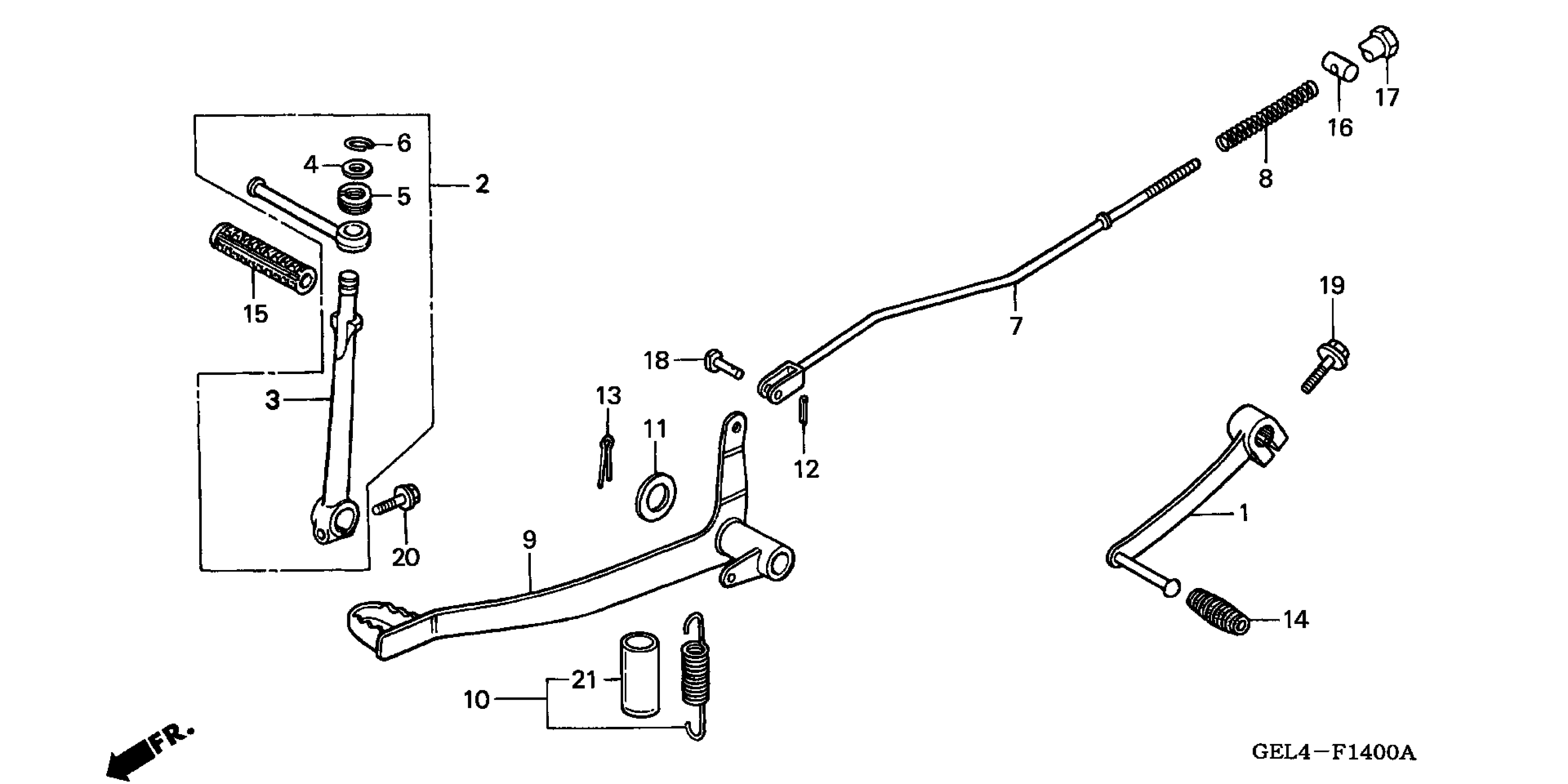

Honda XR50RA (00) MOTORCYCLE, JPN, VIN# JH2AE030-YK000001 BRAKE PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT

24701-181-770

$39.02

ARM ASSY., KICK STARTER

28300-GEL-700

Unavailable

ARM, KICK STARTER

28301-181-730

Unavailable

WASHER, KICK STARTER KNUCKLE

28303-197-000

$2.50

SPRING, KICK STARTER KNUCKLE

28322-197-000

Unavailable

CLIP, KICK STARTER KNUCKLE

28324-197-000

Unavailable

ROD, RR. BRAKE

43451-GEL-700

$14.26

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

PEDAL, BRAKE

46500-GAR-000

Unavailable

PEDAL, BRAKE This part replaces 46500-GW8-870.

46500-GAR-000

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46511-GEL-700

$5.57

WASHER, PLAIN (14MM)

94102-14700

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

RUBBER, CHANGE PEDAL

95011-40000

$1.49

RUBBER A, KICK STARTER

95011-51000

$3.69

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

PIN C, JOINT

95015-53000

$3.06

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

TUBE (12X14X2) (NA USE ALT:95003-39001-10M)

95003-39002-20

Unavailable
