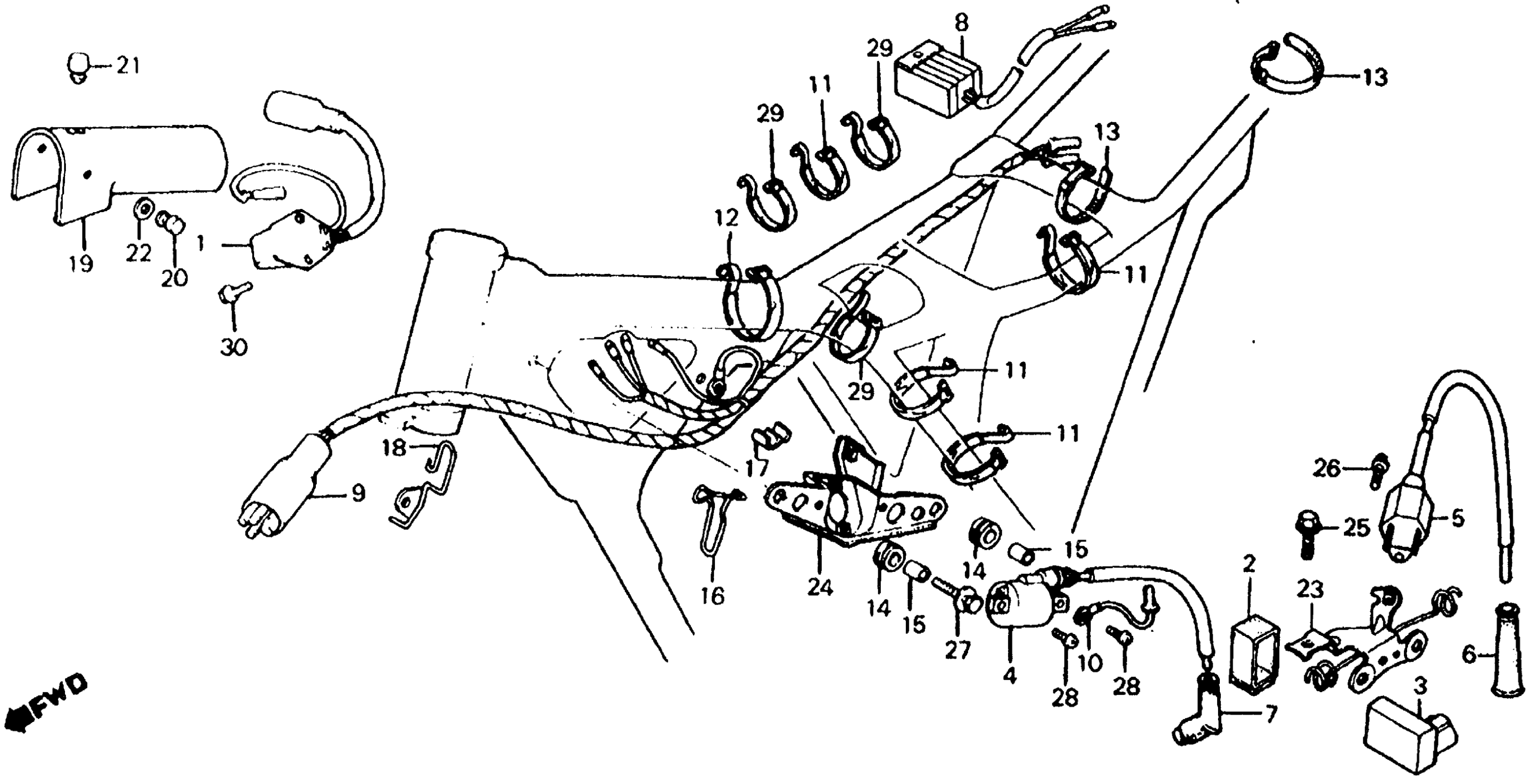

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 WIRE HARNESS + C.D.I. UNIT + IGNITION COIL Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

MODULE, IGNITION CONTROL (CDI)

30401-MG3-003

Unavailable

COIL, IGNITION This part replaces 30510-GR2-010.

30510-GR2-405

$74.70

COIL, IGNITION

30510-GR2-405

$74.70

COIL, IGNITION This part replaces 30510-MG3-003.

30510-GR2-405

$74.70

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$18.93

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$18.93

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$18.93

REGULATOR

31400-KA2-641

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-MG3-000

Unavailable

BAND, CABLE

32161-402-000

Unavailable

GUIDE, CABLE (NOT AVAILABLE)

45469-MG3-000

Unavailable

HEAT, INSULATOR (NOT AVAILABLE)

50180-MG3-000

Unavailable

RUBBER, MAIN PIPE HEAT COVER

50181-MG3-000

Unavailable

RUBBER, FR. TANK

50182-MG3-000

Unavailable

WASHER, HEAT COVER

50183-MG3-000

Unavailable

GUIDE, WIRE HARNESS

50290-MG3-000

Unavailable

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.49

BOLT-WASHER (5X20)

90189-MG3-000

Unavailable
