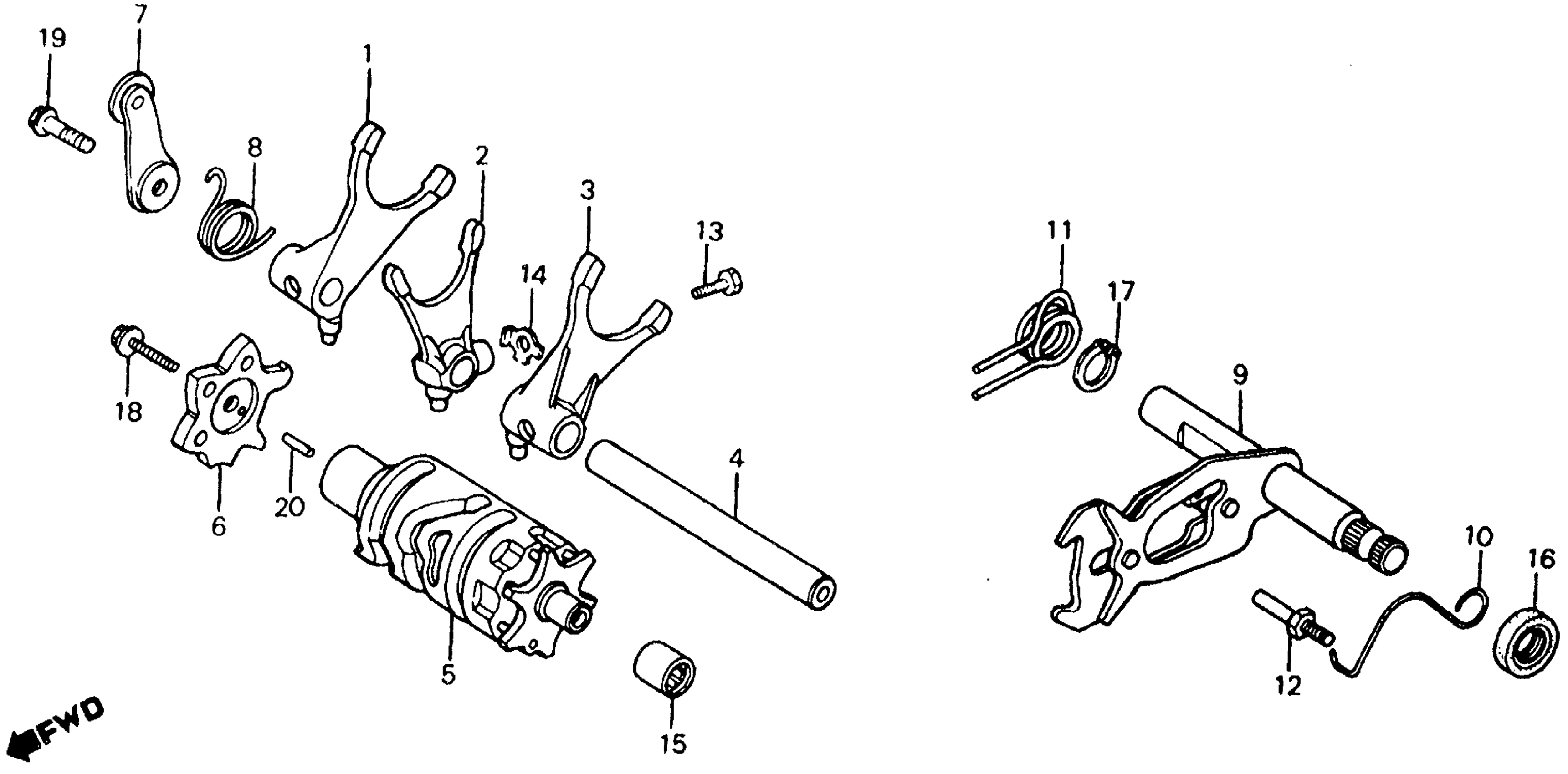

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 SHIFT DRUM + SHIFT FORK 83-84 Diagram

FORK, R. GEARSHIFT

24211-MG3-000

$121.72

FORK, CENTER GEARSHIFT

24212-MG3-000

$121.70

FORK, L. GEARSHIFT This part replaces 24213-MG3-000.

24213-MK2-680

$95.42

FORK, L. GEARSHIFT

24213-MK2-680

$95.42

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-MG3-000.

24241-MK2-000

$26.41

SHAFT, GEARSHIFT FORK GUIDE

24241-MK2-000

$26.41

DRUM, GEARSHIFT

24300-MG2-000

$180.31

DRUM, GEARSHIFT This part replaces 24300-MG3-000.

24300-MG2-000

$180.31

DRUM, GEARSHIFT This part replaces 24300-MN1-670.

24300-MG2-000

$180.31

CAM, GEARSHIFT This part replaces 24411-MG3-010.

24411-MG3-020

$18.62

CAM, GEARSHIFT

24411-MG3-020

$18.62

STOPPER, GEARSHIFT DRUM

24430-MG3-000

$22.21

SPRING, SHIFT DRUM STOPPER

24435-MG3-010

$5.48

SPINDLE, GEARSHIFT

24610-MG3-010

Unavailable

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.75

PIN, SHIFT RETURN SPRING | Use up to Engine SN 5106215

24652-259-000

$4.97

PIN, SHIFT RETURN SPRING | Use from Engine SN 5106216

24652-035-000

$4.01

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

WASHER, LOCK

90407-MB0-000

$2.66

WASHER, LOCK This part replaces 90407-MG3-000.

90407-MB0-000

$2.66

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (8X20) This part replaces 95800-08020-00.

95701-08020-00

$1.78

BOLT, FLANGE (8X20) This part replaces 95801-08020-00.

95701-08020-00

$1.78

ROLLER (3X8)

96220-30080

$1.49
