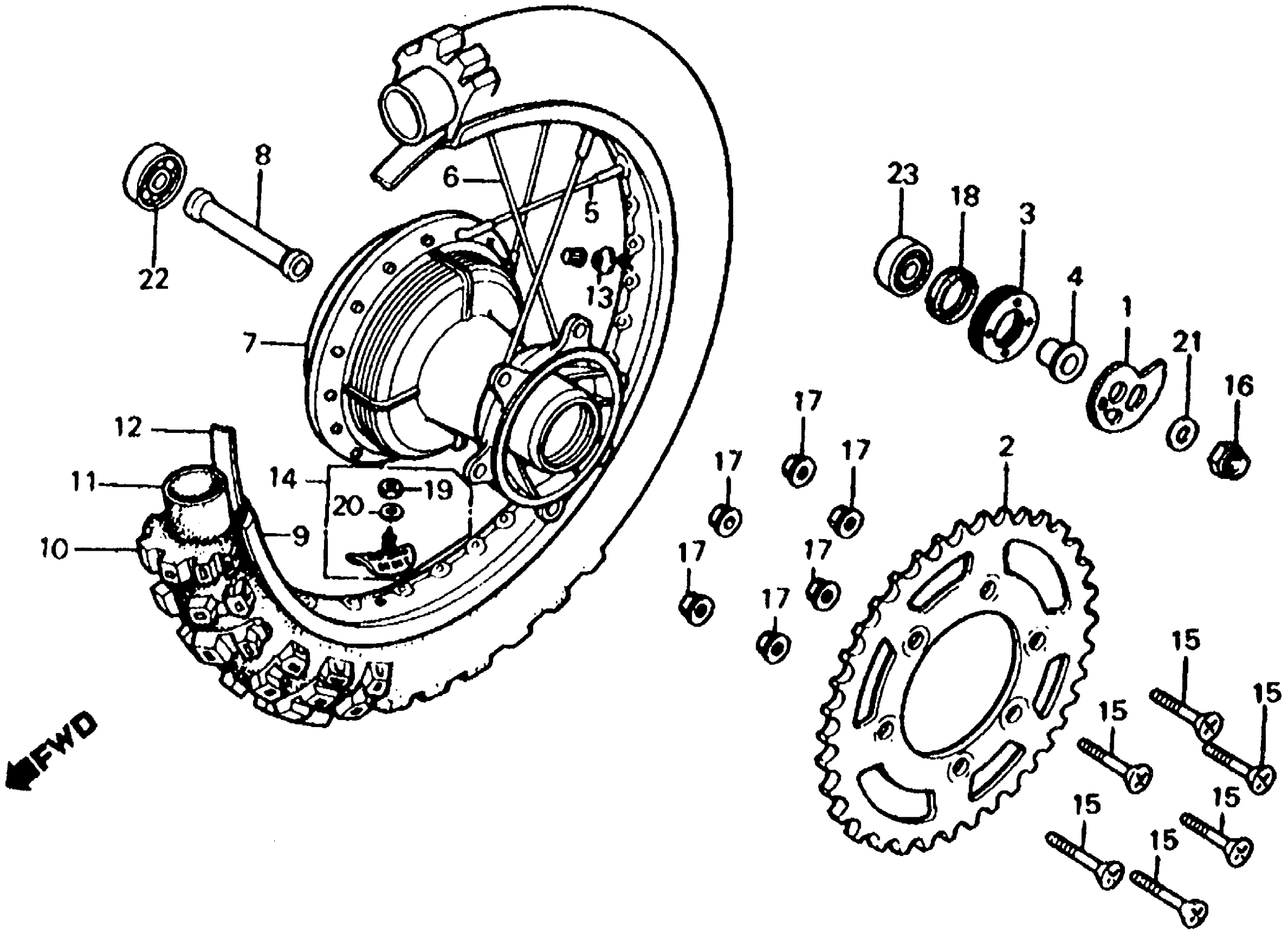

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 REAR WHEEL 83-84 Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN This part replaces 40545-KF0-000.

40545-MY6-670

$15.84

1

ADJUSTER, L. CHAIN

40545-MY6-670

$15.84

2

SPROCKET, FINAL DRIVEN (48T) This part replaces 41201-MG3-000.

41201-MG3-505

Unavailable

2

SPROCKET, FINAL DRIVEN (48T)

41201-MG3-505

Unavailable

3

RETAINER, BEARING

41231-429-000

$30.89

4

COLLAR, RR. WHEEL

42312-KF0-000

$25.87

5

SPOKE SET, RR.

426A0-KF0-000

$4.75

6

SPOKE SET, RR.

426B0-KF0-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KF0-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE

42620-KF0-000

Unavailable

9

RIM, RR. (2.15X17) This part replaces 42701-KF0-003.

42701-KF0-505

Unavailable

10

TIRE, RR. (5.10-17) (6PR) (INOUE)

42711-KN5-005

Unavailable

10

TIRE, RR. (5.10-17) (6PR) (INOUE) This part replaces 42711-MG3-005.

42711-KN5-005

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

12

FLAP, TIRE (2.15X17) (INOUE)

42713-MA0-005

Unavailable

13

CAP, VALVE

42714-KA3-710

$10.46

14

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

15

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

16

NUT, AXLE (16MM)

90305-MA0-003

$7.31

17

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

17

NUT, FLANGE (8MM)

90309-428-731

$3.35

18

OIL SEAL (25X40X7)

91216-729-921

$7.46

18

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.46

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

WASHER, SPRING (16MM)

94111-16000

$1.49

22

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

23

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
