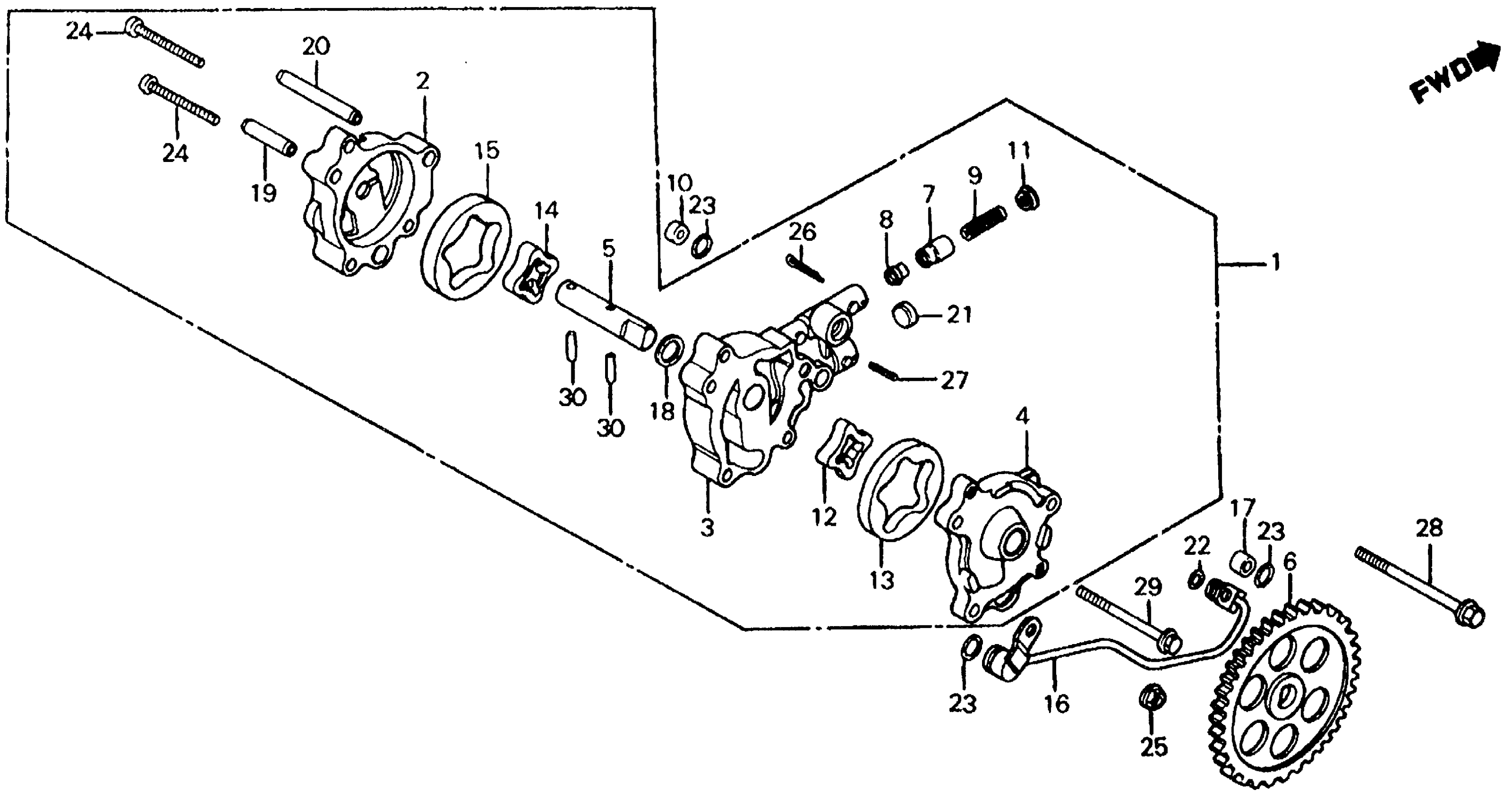

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 OIL PUMP 83-84 Diagram

#

Description
Price

1

PUMP ASSY., OIL This part replaces 15100-MG3-000.

15100-MN1-771

Unavailable

1

PUMP ASSY., OIL This part replaces 15100-MN1-770.

15100-MN1-771

Unavailable

1

PUMP ASSY., OIL

15100-MN1-771

Unavailable

2

BASE, OIL PUMP

15101-MG3-000

Unavailable

3

SPACER

15102-MG3-000

Unavailable

4

BODY, OIL PUMP

15103-MG3-000

Unavailable

5

SHAFT, OIL PUMP

15104-MG3-000

Unavailable

6

GEAR, OIL PUMP DRIVEN (48T) (NOT AVAILABLE)

15105-MG3-000

Unavailable

7

VALVE, OIL LEAK STOPPER

15106-MG3-000

$16.97

8

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.53

9

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.80

10

ORIFICE (5.5MM)

15109-MG3-000

$12.02

11

SEAT B, SPRING

15111-MG3-000

$2.92

12

ROTOR A, OIL PUMP (INNER)

15115-MG3-000

$16.93

13

ROTOR A, OIL PUMP (OUTER)

15116-MG3-000

$27.30

14

ROTOR (INNER)

15121-MG3-000

$20.31

15

ROTOR (OUTER)

15122-MG3-000

$31.31

16

PIPE, OIL (NOT AVAILABLE)

15510-MG3-000

Unavailable

17

HOLDER

17958-197-300

$3.85

18

WASHER, THRUST (11MM)

90456-333-000

$2.53

19

PIN, DOWEL (8X24)

90701-MG3-000

$3.80

20

PIN, DOWEL (8X44)

90702-MG3-000

Unavailable

21

PLUG, SEALING (11MM)

90802-MG3-000

Unavailable

22

O-RING (7X1.7)

91301-473-003

$2.72

22

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

23

O-RING (1.5X9.5)

91306-MG3-000

$2.33

24

SCREW, PAN (5X40)

93500-05040-0A

$1.49

25

NUT, FLANGE (6MM)

94050-06080

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-03200.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

PIN, COTTER (3.0X45)

94201-30450

$1.49

27

PIN, SPRING (2.5X18)

94305-25182

Unavailable

28

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

28

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

29

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

30

ROLLER (4X15.8)

96220-40158

$1.49
