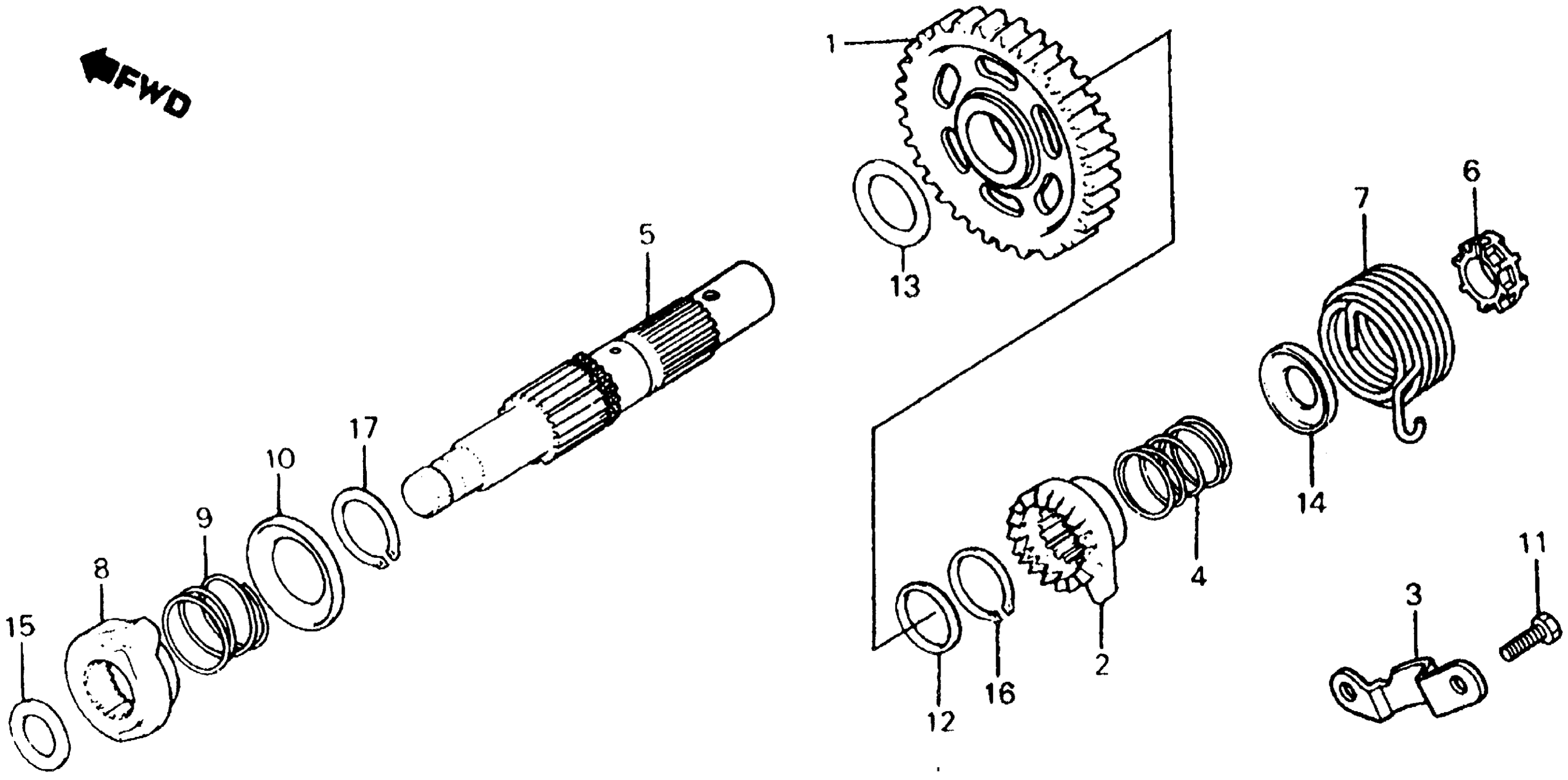

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 KICK STARTER SPINDLE 83-84 Diagram

PINION (36T) (NOT AVAILABLE)

28211-MG3-000

Unavailable

RATCHET, KICK STARTER This part replaces 28213-KF0-000.

28213-KF0-010

Unavailable

RATCHET, KICK STARTER

28213-KF0-010

Unavailable

PLATE, KICK STOPPER

28215-MG3-000

Unavailable

SPRING, KICK STARTER RATCHET

28223-KF0-004

Unavailable

SPINDLE, KICK STARTER

28250-MG3-000

Unavailable

COLLAR, KICK STARTER This part replaces 28255-MG3-000.

28255-MG3-010

Unavailable

COLLAR, KICK STARTER

28255-MG3-010

Unavailable

SPRING, KICK STARTER This part replaces 28261-MG3-000.

28261-MK2-000

$13.29

SPRING, KICK STARTER

28261-MK2-000

$13.29

CAM, KICK SHAFT (NOT AVAILABLE)

28272-MG3-003

Unavailable

SPRING, CAM RESET

28283-428-000

Unavailable

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

BOLT, SOCKET (8X20)

90131-MA7-000

Unavailable

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, THRUST (22MM)

90456-323-000

Unavailable

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable
