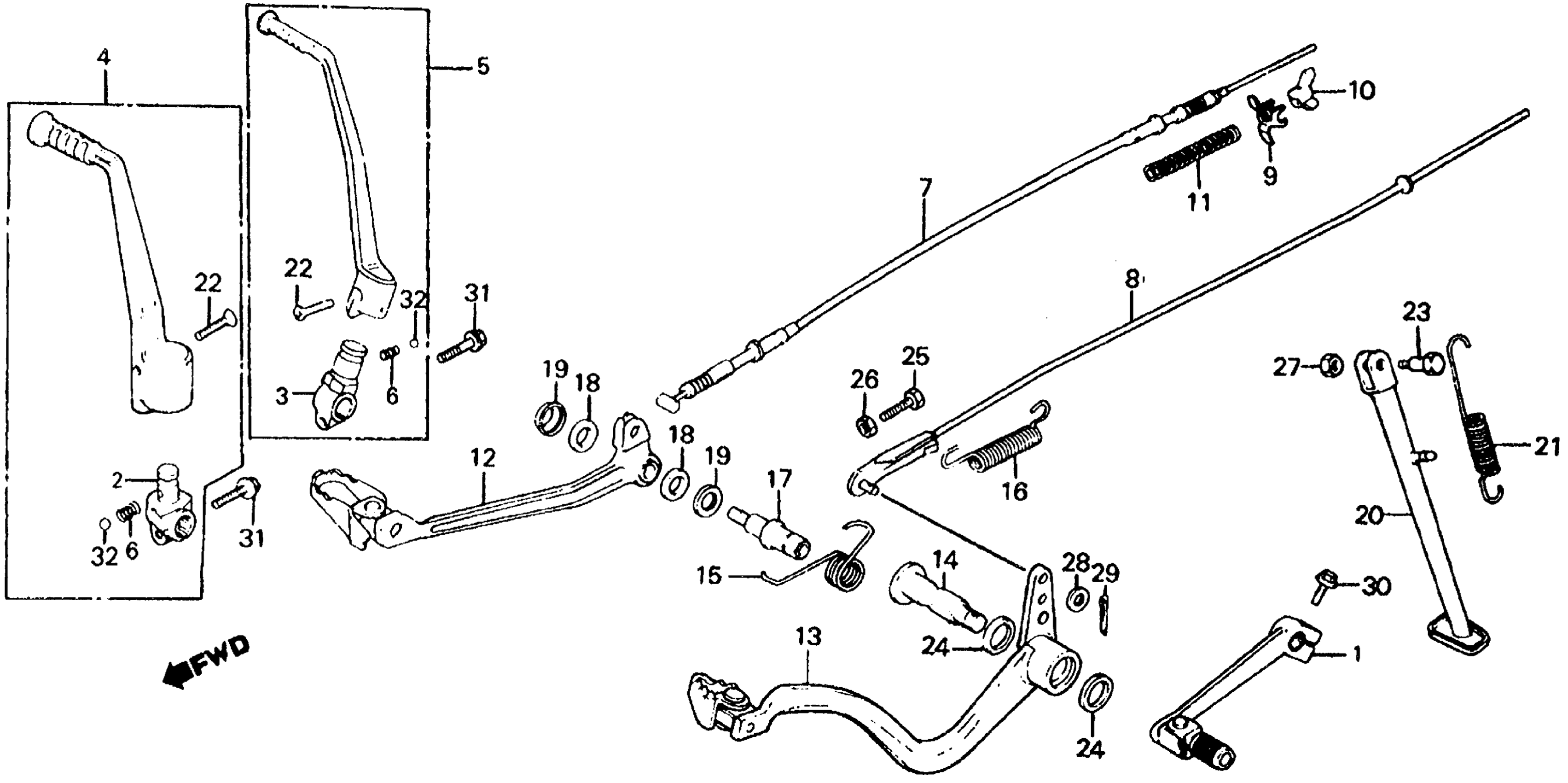

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 GEARSHIFT PEDAL + KICK STARTER ARM + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-MG3-770

Unavailable

2

JOINT, KICK ARM

28241-KF0-000

Unavailable

2

JOINT, KICK ARM This part replaces 28241-MG3-770.

28241-KF0-000

Unavailable

4

ARM ASSY., KICK STARTER This part replaces 28300-KF0-000.

28300-KF0-010

Unavailable

4

ARM ASSY., KICK STARTER

28300-KF0-010

Unavailable

4

ARM ASSY., KICK STARTER This part replaces 28300-MG3-000.

28300-KF0-010

Unavailable

4

ARM ASSY., KICK STARTER This part replaces 28300-MG3-770.

28300-KF0-010

Unavailable

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

8

ROD, RR. BRAKE

43451-MG2-600

Unavailable

8

ROD, RR. BRAKE This part replaces 43451-MG3-000.

43451-MG2-600

Unavailable

9

PLATE, BRAKE CABLE FIXING

43454-MA0-000

Unavailable

10

NUT, BRAKE ADJUST

43459-434-000

$15.27

11

SPRING A, BRAKE ROD

95014-73100

$1.49

13

PEDAL, BRAKE

46500-MG3-000

Unavailable

14

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-MG3-000

Unavailable

16

SPRING, BRAKE PEDAL

46514-MG3-000

Unavailable

20

BAR, SIDE STAND (NOT AVAILABLE)

50530-MG3-000

Unavailable

21

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

22

BOLT, KICK ARM

90101-329-000

$3.67

23

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

24

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

25

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

25

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

25

BOLT, HEX. (6X25) This part replaces 92225-06025-00.

92025-06025-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, U (10MM)

90304-GE8-003

$3.67

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

PIN, COTTER (2.5X18)

94201-25180

Unavailable

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

30

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

30

BOLT, FLANGE (6X14) This part replaces 90173-MG3-000.

95701-06014-00

$1.49

30

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

31

BOLT, FLANGE (8X28) This part replaces 90215-KF0-000.

96400-08028-00

$1.85

31

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
