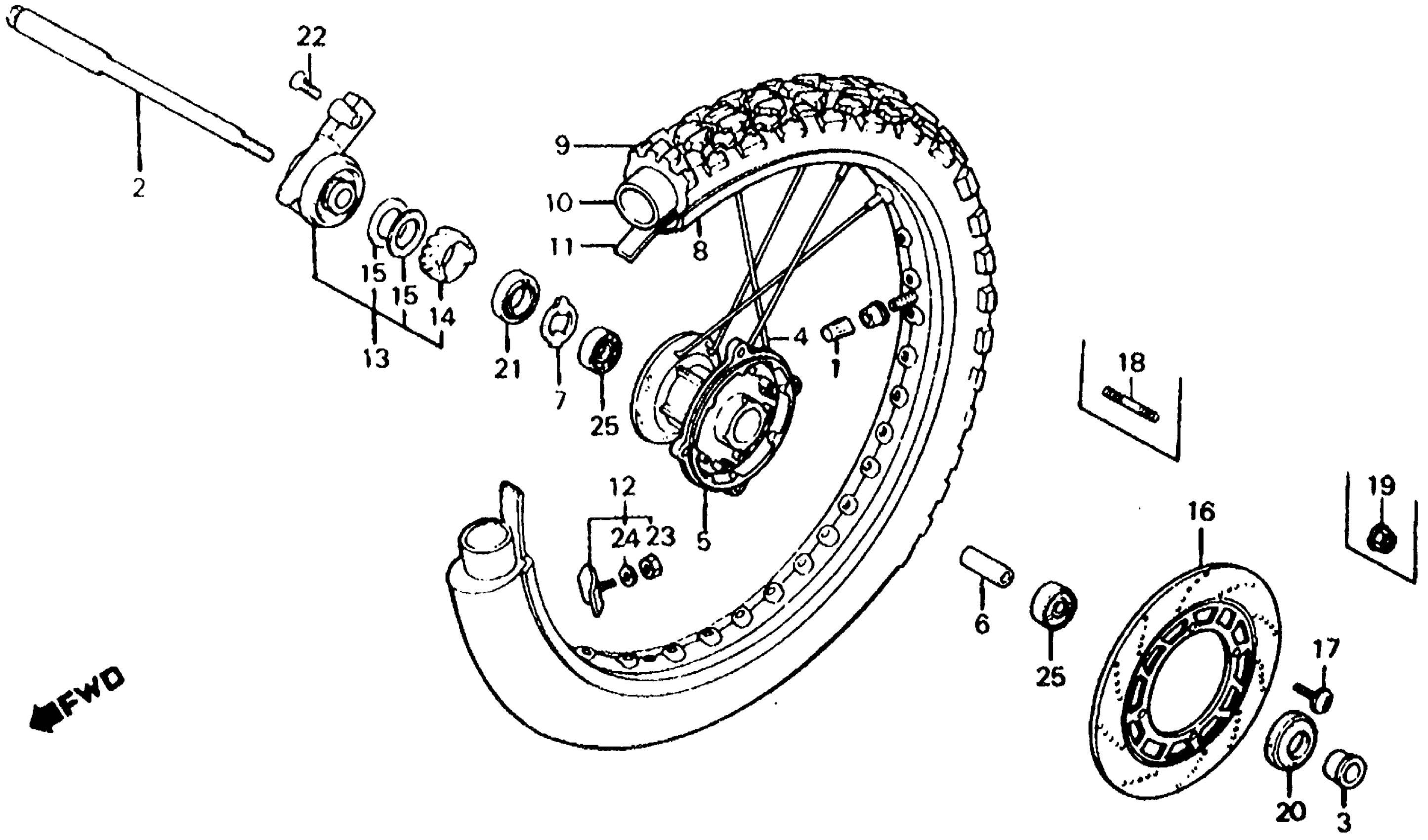

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 FRONT WHEEL 83-84 Diagram

#

Description
Price

1

CAP, VALVE

42714-KA3-710

$10.46

2

AXLE, FR. WHEEL This part replaces 44301-KF0-000.

44301-KBR-000

$62.80

3

COLLAR, FR. WHEEL

44311-MG3-000

$18.02

4

SPOKE SET A (9X228.5)

446A0-MG3-000

Unavailable

5

HUB, FR. WHEEL This part replaces 44601-MG3-000.

44601-ML3-600

Unavailable

5

HUB, FR. WHEEL

44601-ML3-600

Unavailable

6

COLLAR, FR. WHEEL DISTANCE

44620-MG3-000

$14.26

7

RETAINER, GEAR BOX

44680-MA0-000

$7.41

8

RIM, FR. WHEEL

44701-KS6-831

Unavailable

8

RIM, FR. WHEEL This part replaces 44701-MG3-003.

44701-KS6-831

Unavailable

9

TIRE, FR. (3.00-21) (VE32) (INOUE) This part replaces 44711-MG3-005.

44711-MG3-015

Unavailable

9

TIRE, FR. (3.00-21) (VE32) (INOUE)

44711-MG3-015

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

11

FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)

44713-446-631

Unavailable

12

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

13

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-KF0-013.

44800-KF0-023

$118.23

13

BOX ASSY., SPEEDOMETER GEAR

44800-KF0-023

$118.23

14

GEAR, SPEEDOMETER

44806-KF0-000

$35.39

15

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

16

DISK, FR. BRAKE This part replaces 45351-KE1-760.

45351-KBB-900

$250.82

16

DISK, FR. BRAKE This part replaces 45351-KN5-000.

45351-KBB-900

$250.82

16

DISK, FR. BRAKE This part replaces 45351-MG2-830.

45351-KBB-900

$250.82

16

DISK, FR. BRAKE This part replaces 45351-MG3-000.

45351-KBB-900

$250.82

17

BOLT, DISK (6X17) This part replaces 90105-KA3-730.

90105-KN5-000

$3.89

17

BOLT, DISK (6X17)

90105-KN5-000

$3.89

18

BOLT, STUD (6X28)

90135-107-720

$2.56

20

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

20

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

21

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

21

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

21

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

22

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
