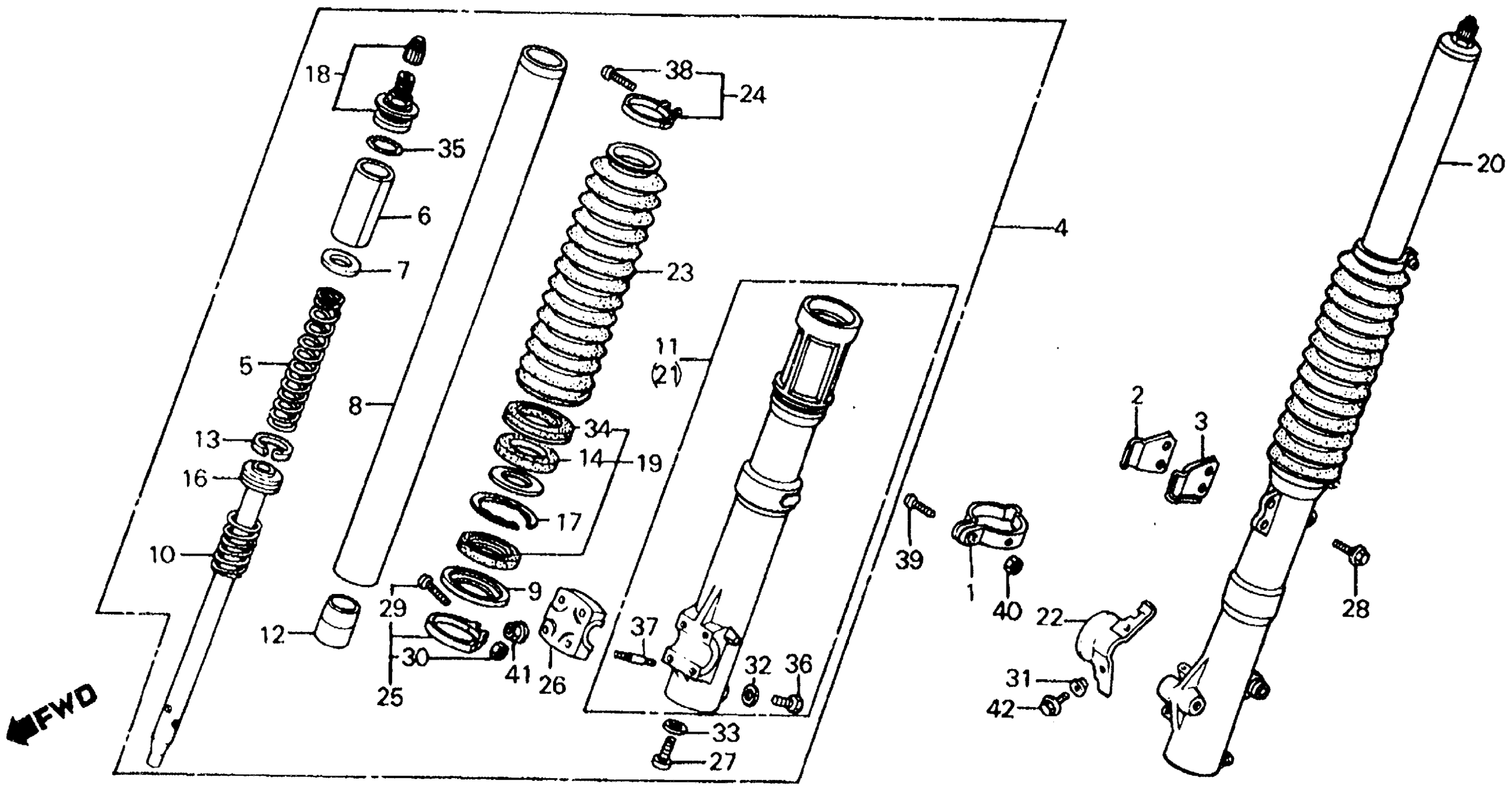

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 FRONT SHOCK ABSORBER 84 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MG3-000

Unavailable

2

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

3

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

4

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-MG3-771

Unavailable

5

SPRING, FR. FORK

51401-MG3-003

Unavailable

6

COLLAR, SPRING

51402-MG3-003

Unavailable

7

SEAT, SPRING

51405-KA4-711

$6.23

8

PIPE, FR. FORK (NOT AVAILABLE)

51410-MG3-013

Unavailable

9

RING, BACK-UP

51412-KA4-711

$9.65

10

SPRING, FR. REBOUND

51416-KA4-711

Unavailable

11

CASE, R. (LOWER)

51420-MG3-771

Unavailable

12

PIECE, OIL LOCK

51432-KF0-003

Unavailable

13

RING, PISTON (SHOWA)

51437-KA4-711

Unavailable

14

SEAL SET, FR. FORK This part replaces 51438-KF0-771.

51490-KAE-003

$35.90

14

SEAL SET, FR. FORK

51490-KAE-003

$35.90

14

SEAL SET, FR. FORK This part replaces 51490-KF0-772.

51490-KAE-003

$35.90

16

PIPE, SEAT

51440-MG3-003

Unavailable

17

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

18

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51450-KA4-711

Unavailable

19

SEAL SET, FR. FORK This part replaces 51490-KA4-711.

51490-KA4-731

Unavailable

19

SEAL SET, FR. FORK

51490-KA4-731

Unavailable

19

SEAL SET, FR. FORK This part replaces 51490-MG7-305.

51490-KA4-731

Unavailable

20

SHOCK ABSORBER ASSY., L. FR.

51500-MG3-771

Unavailable

21

CASE, L. (LOWER)

51520-MG3-771

Unavailable

22

GUARD, FR. FORK

51551-MG3-000

Unavailable

23

BOOT, FR. FORK

51611-MG3-003

Unavailable

24

BAND, BOOT (UPPER) (SHOWA) This part replaces 51612-KA4-711.

51612-KA4-831

$10.67

24

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

25

BAND B, FR. FORK BOOT (NOT AVAILABLE)

51613-KF0-003

Unavailable

26

HOLDER, AXLE

51634-MA0-003

$37.46

27

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

28

BOLT, FLANGE (6X16)

90172-MG3-000

Unavailable

29

SCREW, PAN (3X25)

90181-KF0-003

Unavailable

30

NUT, SQUARE (3MM)

90311-KF0-003

Unavailable

31

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

32

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

33

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

34

DUST SEAL, FR. FORK This part replaces 91254-KA4-711.

91254-KA4-731

Unavailable

35

O-RING (35.2X2.4)

91356-KA4-711

$3.76

36

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

36

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

37

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

37

BOLT, STUD (6X25)

92900-06025-0E

$1.49

38

SCREW, PAN (3X20)

93500-03020-0A

$1.49

39

SCREW, PAN (5X20)

93500-05020-0A

$1.49

40

NUT, HEX. (5MM)

94001-05000-0S

$2.74

41

NUT, FLANGE (6MM)

94050-06000

$1.49

42

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

42

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
