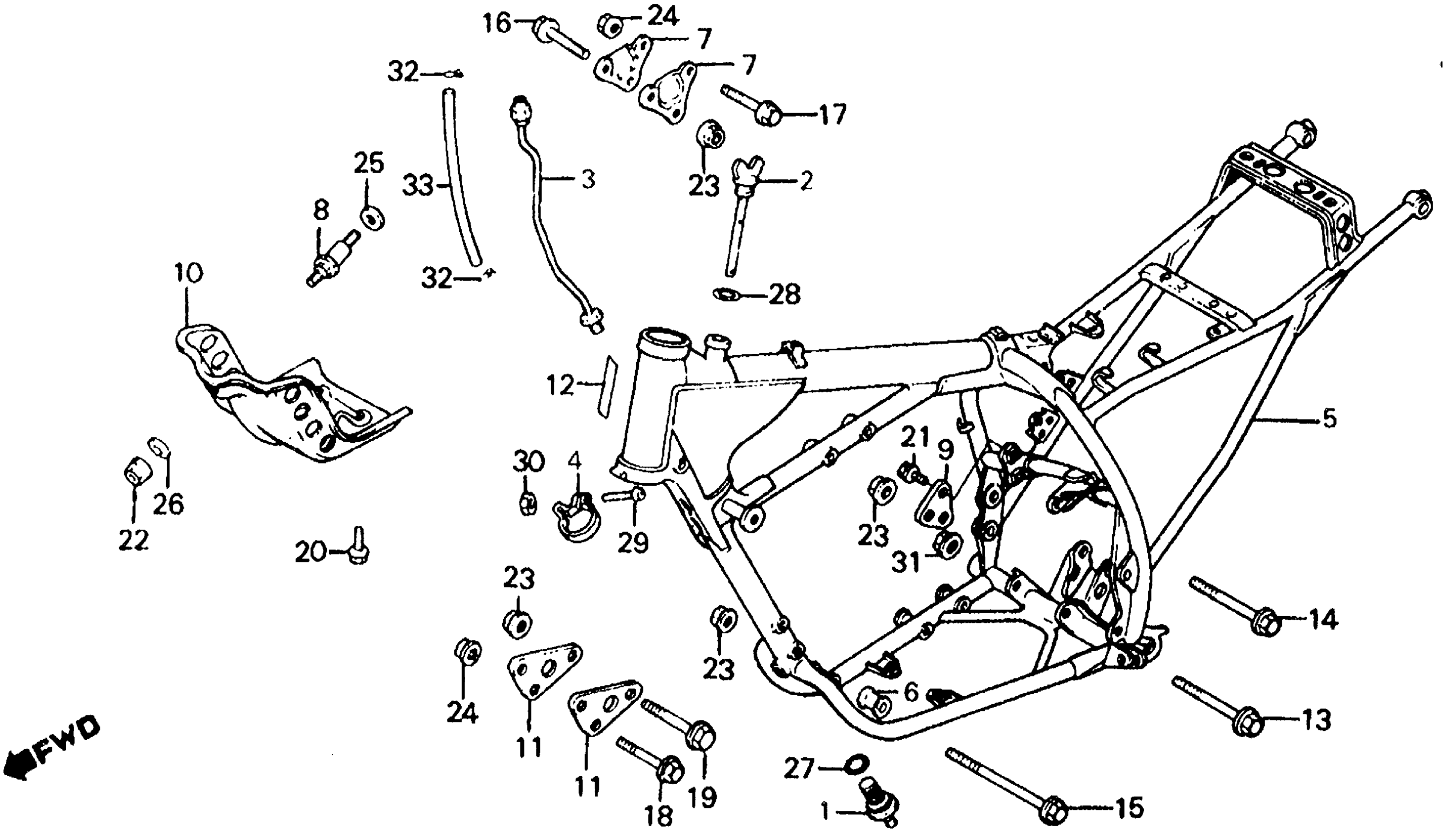

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 FRAME 83-84 Diagram

#

Description
Price

1

STRAINER, OIL

15500-MG3-000

Unavailable

2

DIPSTICK, OIL

15650-MG3-000

$26.32

3

PIPE, OIL

15710-MG3-000

Unavailable

4

CLAMP, OIL PIPE

15711-MG3-000

Unavailable

5

FRAME *R119* (FLASH RED)

50100-MG3-000ZA

Unavailable

6

COLLAR, ENGINE HANGER *R110* (MONZA RED) This part replaces 50130-MG3-000ZA.

50130-MG3-000ZC

Unavailable

6

COLLAR, ENGINE HANGER *R110* (MONZA RED)

50130-MG3-000ZC

Unavailable

7

PLATE, R. ENGINE HANGER (UPPER) *R119* (FLASH RED) (NOT AVAILABLE)

50138-MG3-000ZA

Unavailable

8

BOLT, DRAIN (LOWER)

50142-MG3-000

Unavailable

9

PLATE, R. RR. ENGINE HANGER

50157-MG3-000

Unavailable

10

PLATE, SKID (NOT AVAILABLE)

50351-MG3-000

Unavailable

11

PLATE, FR. ENGINE HANGER

50353-MG3-000

Unavailable

12

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

13

BOLT, FLANGE (10X110) This part replaces 90104-MG3-000.

90105-MG3-000

$8.41

13

BOLT, FLANGE (10X110)

90105-MG3-000

$8.41

14

BOLT, FLANGE (10X110)

90105-MG3-000

$8.41

15

BOLT, FLANGE (10X185) (NOT AVAILABLE)

90114-MG3-000

Unavailable

16

BOLT, FLANGE (10X55)

90153-KF0-000

$8.40

17

BOLT, FLANGE (8X55) This part replaces 90154-MG3-000.

90159-KA2-000

Unavailable

17

BOLT, FLANGE (8X55)

90159-KA2-000

Unavailable

18

BOLT, FLANGE (8X70)

90156-MG3-000

Unavailable

19

BOLT, FLANGE (10X70)

90158-MG3-000

$11.33

20

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.14

20

BOLT, FLANGE (6X10) This part replaces 90171-MG3-000.

95701-06010-00

$1.14

21

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.28

21

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

22

NUT, OPEN STAY (6MM)

90301-693-000

$5.91

22

NUT, FLANGE (6MM)

94050-06000

$0.59

23

NUT, FLANGE (10MM)

90308-382-670

$3.79

24

NUT, HEX. (8MM)

90309-357-000

$3.16

25

WASHER (10.2MM)

90481-463-000

$2.70

26

WASHER, PLAIN (8MM) This part replaces 90541-035-000.

94101-08000

$0.75

26

WASHER, PLAIN (8MM)

94101-08000

$0.75

27

O-RING (25X3)

91305-384-750

$2.80

28

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

28

O-RING (18X3)

91307-035-000

$2.71

29

SCREW-WASHER (5X18)

93891-05018-00

Unavailable

29

SCREW-WASHER (5X18) This part replaces 93891-05018-10.

93891-05018-00

Unavailable

30

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.42

30

NUT, HEX. (5MM)

94001-05000-0S

$2.42

31

NUT, HEX. (10MM)

94030-10200

$0.88

32

CLIP, TUBE (B12)

95002-02120

Unavailable

33

BULK HOSE, VACUUM (7.3X3000) (7.5X320)

95005-75003-10M

$85.23
