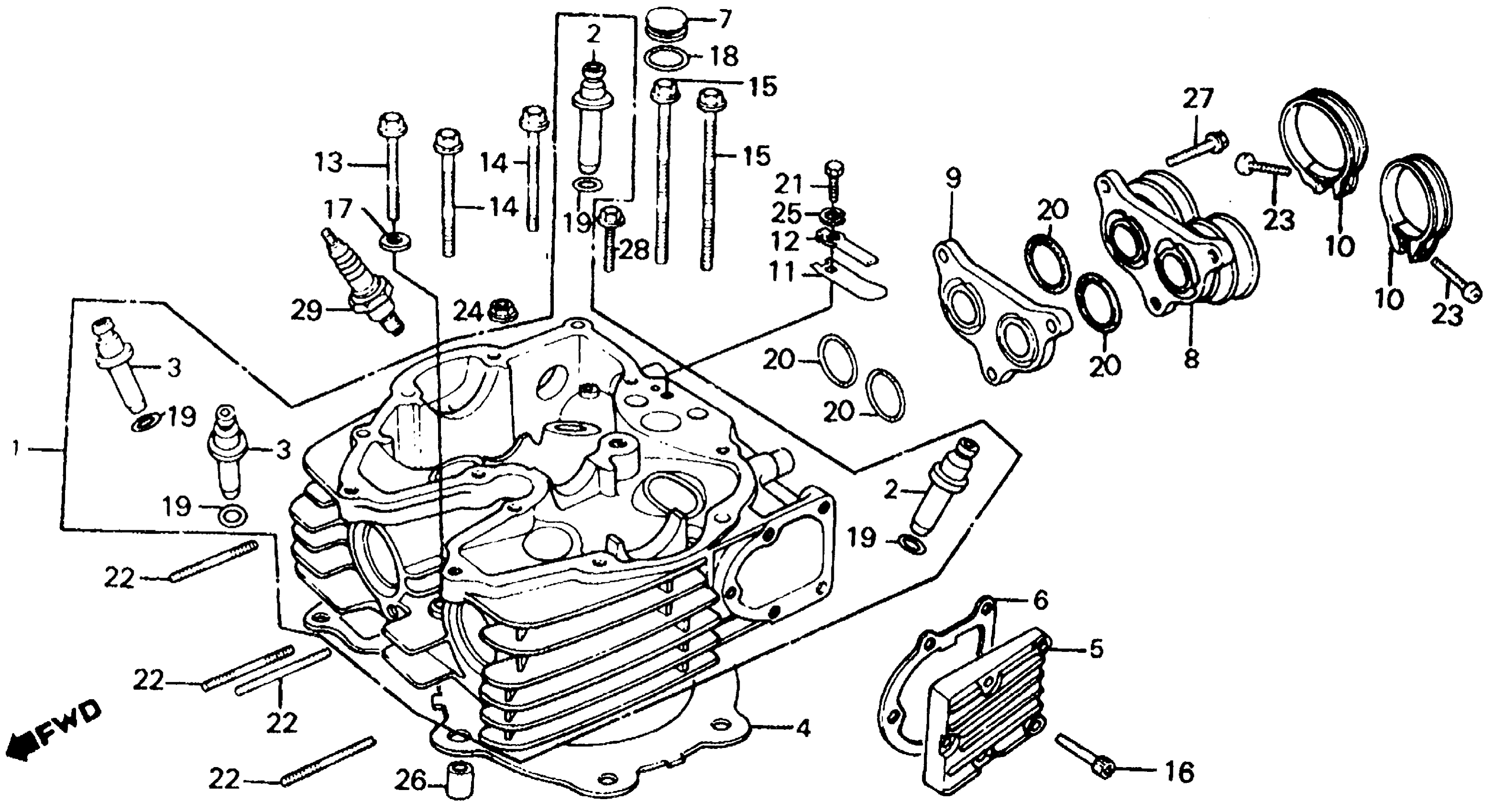

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 CYLINDER HEAD 83-84 Diagram

#

Description
Price

1

CYLINDER HEAD | Use up to Engine SN 5106901 This part replaces 12200-MG3-000.

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5106901 This part replaces 12200-MG3-010.

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5104355 This part replaces 12200-MG3-010.

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5106901 This part replaces 12200-MG3-305.

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5104355 This part replaces 12200-MG3-305.

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5106901

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use up to Engine SN 5104355

12200-MG3-315

Unavailable

1

CYLINDER HEAD | Use from Engine SN 5104356

12200-MG3-020

Unavailable

2

GUIDE, VALVE

12231-MG3-305

Unavailable

3

GUIDE, EX. VALVE

12241-MG3-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-MG3-004.

12251-MK4-602

Unavailable

4

GASKET, CYLINDER HEAD

12251-MK4-602

Unavailable

5

COVER, DECOMPRESSION

12330-MG3-000

Unavailable

6

GASKET, DECOMPRESSION COVER

12332-MG3-004

Unavailable

7

CAP

12345-MG3-000

Unavailable

8

INSULATOR, CARBURETOR | Use up to Engine SN 5100310

16211-MG3-000

Unavailable

8

INSULATOR, CARBURETOR | Use from Engine SN 5100311

16211-MG3-010

Unavailable

9

INSULATOR, HEAT (NOT AVAILABLE) This part replaces 16215-MG3-000.

16215-MG3-306

Unavailable

9

INSULATOR, HEAT (NOT AVAILABLE)

16215-MG3-306

Unavailable

10

BAND, INSULATOR

16223-KS5-000

$14.20

10

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

11

VALVE, REED | Use up to Engine SN 5104356

16311-MG3-000

Unavailable

12

STOPPER, REED VALVE | Use up to Engine SN 5104356

16312-MG3-000

Unavailable

13

BOLT, FLANGE (8X62) (NOT AVAILABLE) | Use up to Engine SN 5106901

90081-MG3-003

Unavailable

14

BOLT, FLANGE (8X70) | Use up to Engine SN 5106901

90082-MG3-003

$10.21

14

BOLT, FLANGE (8X70) | Use from Engine SN 5106902

90082-MG3-003

$10.21

15

BOLT, FLANGE (8X100)

90083-MG3-003

$11.08

16

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

17

WASHER, PLAIN (8MM)

90501-MG3-000

Unavailable

18

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

19

O-RING (10X1.6)

91301-200-000

$3.01

20

O-RING (35.5X3) (NOK) | Use up to Engine SN 5110555

91301-428-003

$2.21

20

O-RING (35.5X3) (NOK) | Use from Engine SN 5110556

91301-428-003

$2.21

21

BOLT, HEX. (5X12) | Use up to Engine SN 5104356 This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

21

BOLT, HEX. (5X12) | Use up to Engine SN 5104356 This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

21

BOLT, HEX. (5X12) | Use up to Engine SN 5104356

92101-05012-0G

$1.49

22

BOLT, STUD (8X40) This part replaces 92700-08040.

92700-08040-0B

$2.02

22

BOLT, STUD (8X40)

92700-08040-0B

$2.02

23

SCREW, PAN (5X28)

93500-05028-0G

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

WASHER, SPRING (5MM) | Use up to Engine SN 5104356

94111-05000

$1.49

26

PIN A, DOWEL (10X20)

94301-10200

$2.35

27

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

27

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

28

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

28

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

29

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

29

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

29

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

29

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

29

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

29

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
