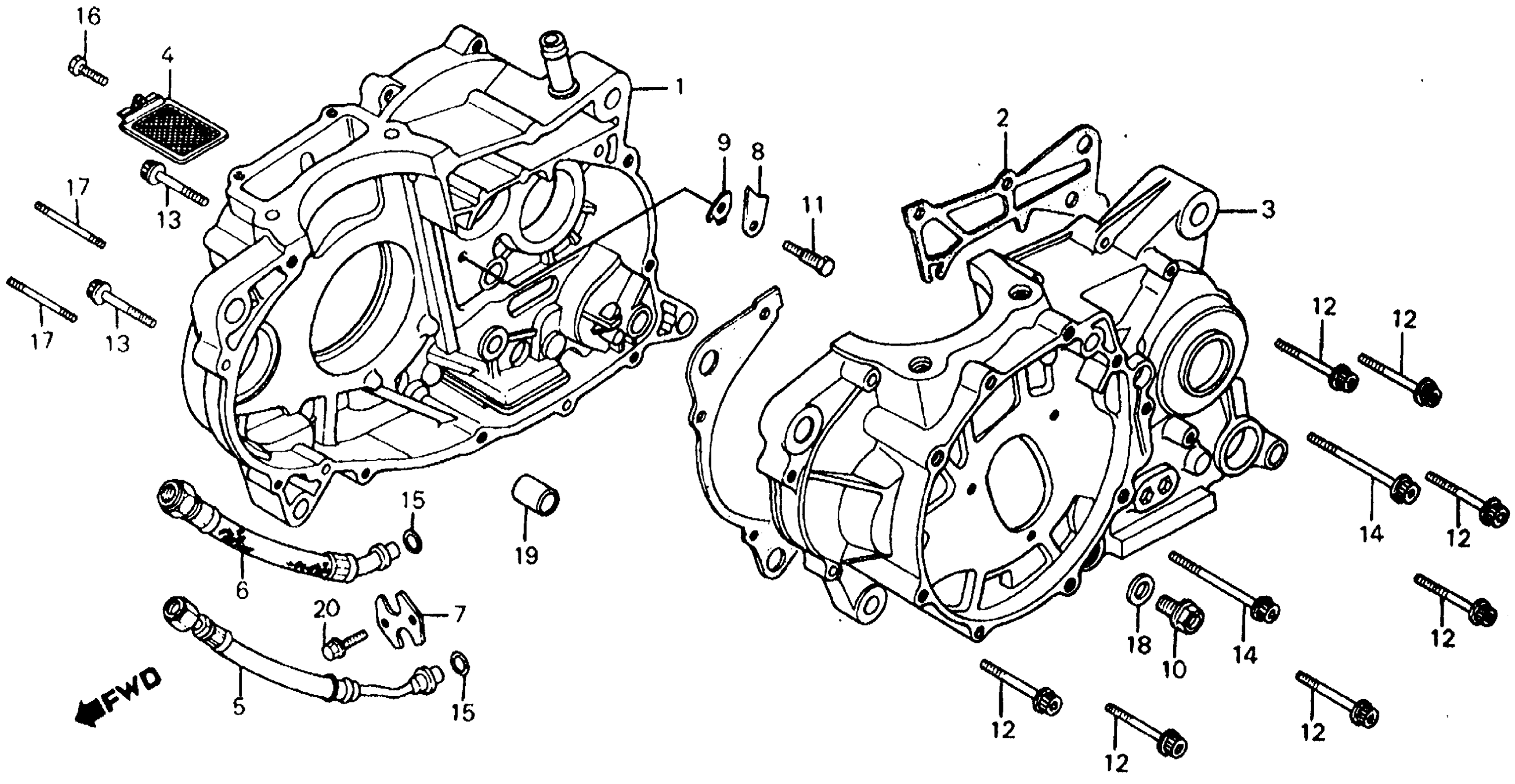

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 CRANKCASE 83-84 Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-MG3-010.

11100-MG3-305

Unavailable

1

CRANKCASE, R.

11100-MG3-305

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-MG3-000.

11191-MG3-306

Unavailable

2

GASKET, CRANKCASE

11191-MG3-306

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 5110010 This part replaces 11200-MG3-000.

11200-MG3-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 5110907 This part replaces 11200-MG3-010.

11200-MG3-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-MG3-020

Unavailable

4

SCREEN, OIL FILTER (KOYO) This part replaces 15421-MG3-000.

15421-MN1-671

$11.02

4

SCREEN, OIL FILTER (KOYO) This part replaces 15421-MG3-003.

15421-MN1-671

$11.02

4

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

5

HOSE, OIL (A) (NOT AVAILABLE)

15610-MG3-003

Unavailable

6

HOSE B

15620-MG3-003

Unavailable

7

PLATE

15630-MG3-000

Unavailable

8

PLATE

23521-MG3-000

Unavailable

9

WASHER, LOCK (8MM) | Use up to Engine SN 5110812

23523-MG3-000

Unavailable

9

WASHER, PLAIN (8MM) | Use from Engine SN 5110813

94102-08800

$1.49

10

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

11

BOLT, SPECIAL (8MM)

90088-MG3-000

$6.31

12

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

13

BOLT, FLANGE SOCKET (6X45)

90093-MG3-000

$4.89

14

BOLT, FLANGE SOCKET (6X50)

90094-MG3-000

Unavailable

15

GASKET, RUBBER (9.8MM)

91301-KF0-000

$3.92

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

17

BOLT, STUD (6X25)

92900-06025-0E

$1.49

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN A, DOWEL (14X20)

94301-14200

$2.28

20

BOLT, FLANGE (6X16) This part replaces 96000-06016-07.

96001-06016-07

$1.49

20

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
