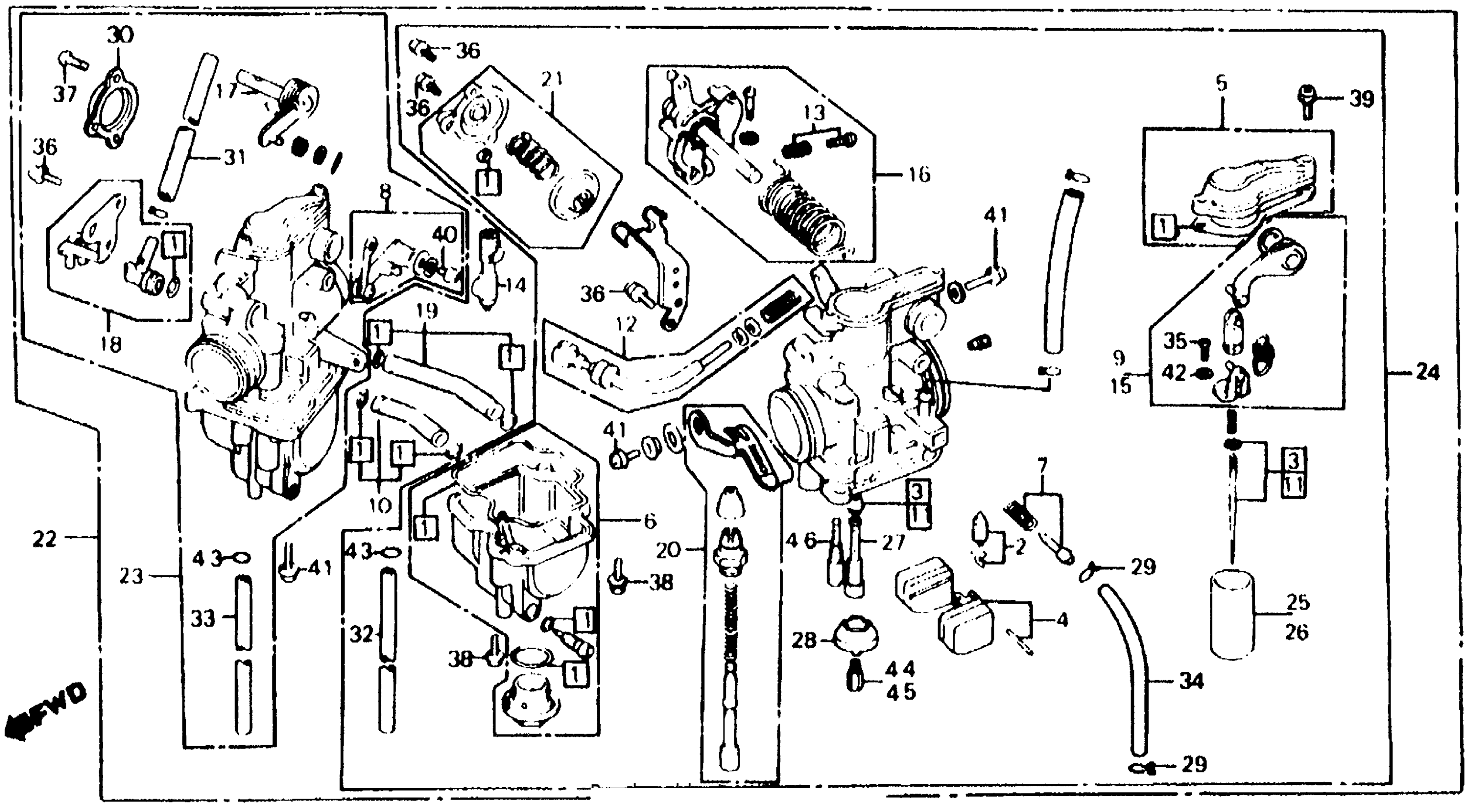

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 CARBURETOR 83-84 Diagram

GASKET SET This part replaces 16010-MG3-004.

16010-MG3-305

$43.84

GASKET SET

16010-MG3-305

$43.84

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

NEEDLE SET, PRIMARY (NOT AVAILABLE)

16012-MG3-004

Unavailable

FLOAT SET This part replaces 16013-GC4-701.

16013-KG0-891

Unavailable

FLOAT SET

16013-KG0-891

Unavailable

TOP SET, SECONDARY (NOT AVAILABLE)

16014-MG3-004

Unavailable

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KF0-004

Unavailable

SCREW SET

16016-MG3-004

Unavailable

LEVER SET, LINK

16017-KF0-004

Unavailable

ARM SET A, LINK

16018-MG3-004

Unavailable

JOINT SET, FUEL

16026-KF0-004

Unavailable

NEEDLE SET, SECONDARY LINK (NOT AVAILABLE)

16027-MG3-004

Unavailable

SCREW SET

16028-KF0-004

Unavailable

SCREW SET This part replaces 16029-KF0-004.

16029-KG0-004

Unavailable

SCREW SET

16029-KG0-004

Unavailable

HOLDER SET, ADJ.

16030-KF0-004

Unavailable

ARM SET, PRIMARY LINK (NOT AVAILABLE)

16031-MG3-004

Unavailable

LINK SET, THROTTLE

16032-MG3-004

Unavailable

LINK B SET, THROTTLE

16035-MG3-004

Unavailable

JOINT SET, FUEL

16037-MG3-004

Unavailable

JOINT SET, FUEL This part replaces 16042-KF0-004.

16042-KK0-771

$14.52

JOINT SET, FUEL

16042-KK0-771

$14.52

VALVE SET, STARTER (NOT AVAILABLE)

16046-KF0-004

Unavailable

VALVE SET, AIR CUT This part replaces 16048-KF0-004.

16048-MG2-305

Unavailable

VALVE SET, AIR CUT

16048-MG2-305

Unavailable

CARBURETOR ASSY. This part replaces 16100-MG3-771.

16100-MG3-772

Unavailable

CARBURETOR ASSY. This part replaces 16101-MG3-771.

16100-MG3-772

Unavailable

CARBURETOR ASSY. This part replaces 16102-MG3-771.

16100-MG3-772

Unavailable

VALVE SET, THROTTLE

16111-MG3-004

Unavailable

VALVE, THROTTLE (A)

16112-MG3-004

Unavailable

HOLDER, NEEDLE JET

16165-MG3-004

Unavailable

HOLDER, JET

16168-KF0-004

Unavailable

CLIP, TUBE

16179-KE5-004

Unavailable

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

PIPE, L. AIR VENT This part replaces 16195-KF0-004.

16195-KE8-405

Unavailable

PIPE, L. AIR VENT This part replaces 16199-KM9-405.

16195-KE8-405

Unavailable

PIPE, OVERFLOW This part replaces 16198-MG3-004.

16198-ML4-405

Unavailable

PIPE, OVERFLOW

16198-ML4-405

Unavailable

TUBE, OVERFLOW (440MM)

16198-ML4-405

Unavailable

PIPE, OVERFLOW This part replaces 16199-KF0-004.

16198-ML4-405

Unavailable

TUBE, AIR VENT This part replaces 16199-MG3-771.

16199-MG3-405

Unavailable

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

SCREW-WASHER (4X10)

93892-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

SCREW-WASHER (4X12)

93892-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

SCREW-WASHER (4X14)

93892-04014-08

$1.49

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

SCREW-WASHER (4X20)

93892-04020-08

Unavailable

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

SCREW-WASHER (5X14)

93892-05014-08

$1.49

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

JET, MAIN (#135)

99101-357-1350

$9.07

JET, MAIN (#108) This part replaces 99101-357-1080.

99113-GHB-1080

$9.32

JET, MAIN (#108) This part replaces 99102-357-1080.

99113-GHB-1080

$9.32

JET, MAIN (#108)

99113-GHB-1080

$9.32

JET, SLOW (#58)

99103-MG3-0580

Unavailable

JET, SLOW (#58) This part replaces 99103-943-0580.

99103-MG3-0580

Unavailable
