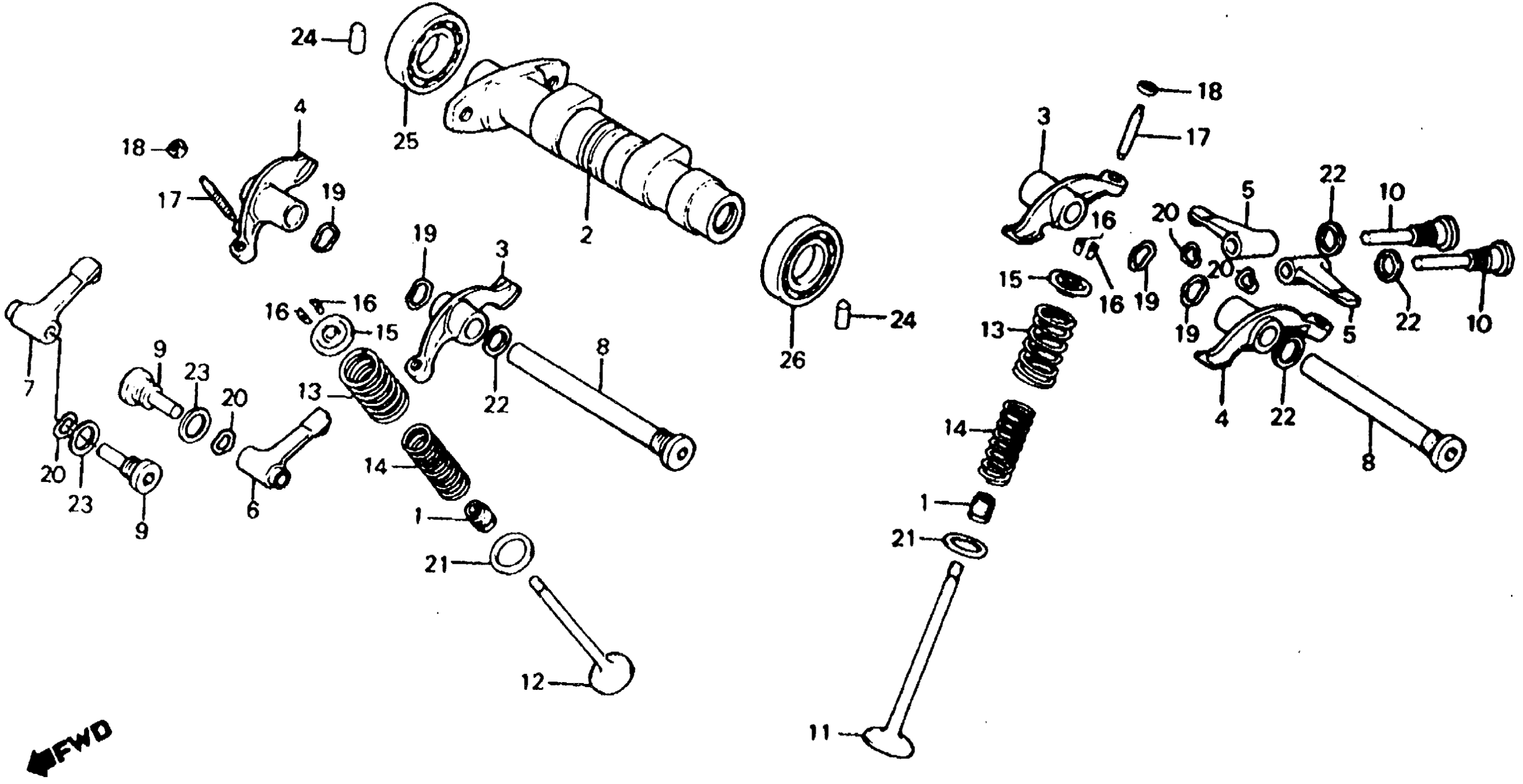

Honda XR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE030-EM100001 TO JH2PE030-EM104735 CAMSHAFT + VALVE 83-84 Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-MC8-005

Unavailable

2

CAMSHAFT

14100-MG2-020

Unavailable

2

CAMSHAFT This part replaces 14100-MG3-000.

14100-MG2-020

Unavailable

2

CAMSHAFT This part replaces 14100-MG3-010.

14100-MG2-020

Unavailable

3

ARM A, VALVE ROCKER

14431-MG3-000

Unavailable

4

ARM B, VALVE ROCKER

14441-MG3-000

Unavailable

5

ARM, IN. VALVE SUB-ROCKER

14445-KF0-000

$31.43

6

ARM, L. EX. VALVE SUB-ROCKER

14446-KF0-000

$35.34

7

ARM, R. EX. VALVE SUB-ROCKER

14447-KF0-000

$35.34

8

BOLT

14451-MG3-000

Unavailable

9

SHAFT A, SUB-ROCKER ARM This part replaces 14455-KF0-000.

14455-MN1-670

$22.70

9

SHAFT A, SUB-ROCKER ARM

14455-MN1-670

$22.70

10

SHAFT B, SUB-ROCKER ARM This part replaces 14456-KF0-000.

14456-KCY-670

$40.89

10

SHAFT B, SUB-ROCKER ARM This part replaces 14456-KF0-010.

14456-KCY-670

$40.89

11

VALVE, IN.

14711-MG3-000

$52.34

12

VALVE, EX.

14721-MG3-000

$78.59

13

SPRING, VALVE (OUTER) (NIPPON)

14751-MG3-003

$11.23

14

SPRING, VALVE (INNER) (NIPPON)

14761-MG3-003

$8.20

15

RETAINER, VALVE SPRING

14771-410-010

$8.75

15

RETAINER, VALVE SPRING This part replaces 14771-679-000.

14771-410-010

$8.75

16

COTTER, VALVE

14781-MB9-000

$4.95

17

SCREW, TAPPET ADJUSTING

90012-KR0-000

$9.07

17

SCREW, TAPPET ADJUSTING

90012-MG3-000

$9.89

18

NUT, TAPPET ADJ.

90206-590-000

$4.83

19

WASHER, ROCKER ARM SIDE WAVE

90405-KF0-003

Unavailable

20

WASHER, WAVE This part replaces 90406-KF0-000.

90406-KF0-003

$2.92

20

WASHER, SUB-ROCKER ARM SIDE WAVE

90406-KF0-003

$2.92

21

WASHER, THRUST (21MM)

90453-473-000

$4.82

22

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

23

WASHER (12MM)

90545-KF0-000

$3.26

24

PIN, DOWEL (10X18)

90701-KF0-000

$4.80

25

BEARING, RADIAL BALL (6904C)

91002-MK5-008

$39.28

26

BEARING, RADIAL BALL (6904)

91003-KF0-008

$14.20
