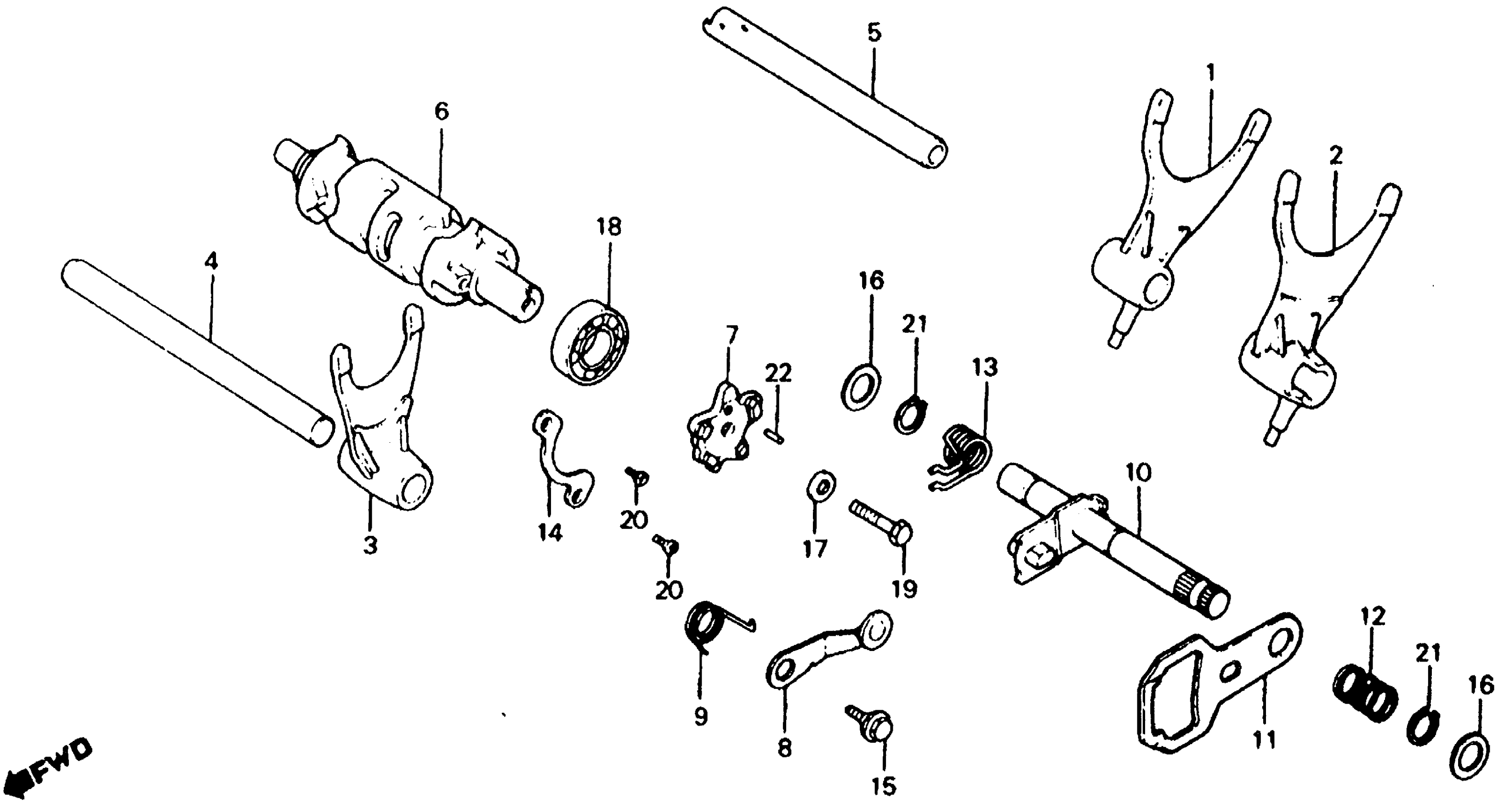

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 SHIFT DRUM + SHIFT FORK 81-82 Diagram

FORK, R. GEARSHIFT

24211-429-010

Unavailable

FORK, L. GEARSHIFT

24212-429-000

Unavailable

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-429-000

Unavailable

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

MAINSHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-429-020

Unavailable

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-471-000

Unavailable

CAM, GEARSHIFT (NOT AVAILABLE)

24410-471-305

Unavailable

CAM, GEARSHIFT (NOT AVAILABLE) This part replaces 24411-428-771.

24410-471-305

Unavailable

CAM, GEARSHIFT (NOT AVAILABLE) This part replaces 24411-428-772.

24410-471-305

Unavailable

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-428-000

Unavailable

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-428-000.

24435-413-000

Unavailable

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-471-000.

24435-413-000

Unavailable

SPINDLE, GEARSHIFT

24610-428-000

Unavailable

PLATE, GEARSHIFT (NOT AVAILABLE)

24621-428-000

Unavailable

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-428-000

Unavailable

PLATE, BEARING SETTING (NOT AVAILABLE)

24710-362-000

Unavailable

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, CHAIN GUIDE ROLLER THRUST

90452-500-000

Unavailable

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

BOLT, HEX. (6X28) (NOT AVAILABLE)

92200-06028

Unavailable

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

ROLLER (3X8.5)

96220-30085

$1.49
