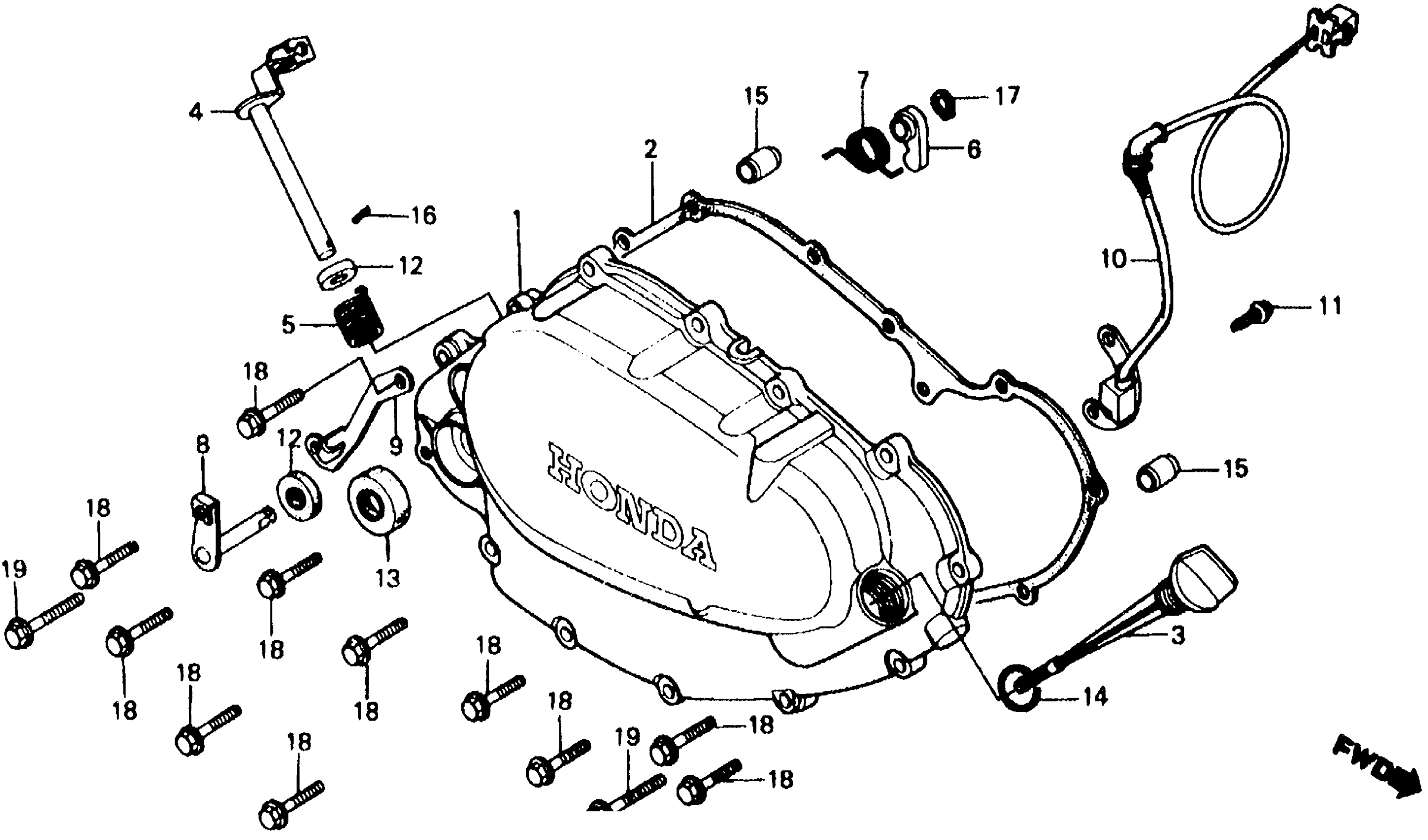

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 RIGHT CRANKCASE COVER 81-82 Diagram

COVER, R. CRANKCASE

11330-471-700

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-MA0-000.

11394-MA0-306

$19.89

GASKET, R. CRANKCASE COVER

11394-MA0-306

$19.89

DIPSTICK, OIL

15650-471-000

Unavailable

LEVER, CLUTCH (NOT AVAILABLE)

22810-429-000

Unavailable

SPRING, CLUTCH LEVER

22815-428-000

$3.28

FOLLOWER, CAM

28271-428-000

Unavailable

SPRING, FOLLOWER (NOT AVAILABLE)

28274-428-000

Unavailable

SHAFT, FOLLOWER (NOT AVAILABLE)

28280-428-000

Unavailable

RECEIVER B, DECOMPRESSION (NOT AVAILABLE)

28287-435-730

Unavailable

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-MA0-000

Unavailable

SCREW, TAPPING (6X16) (NOT AVAILABLE)

90190-663-671

Unavailable

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (18X29X7)

91204-286-003

$4.31

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

PIN A, DOWEL (10X16)

94301-10160

$2.28

PIN, SPRING (3X10)

94305-30102

$1.74

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
