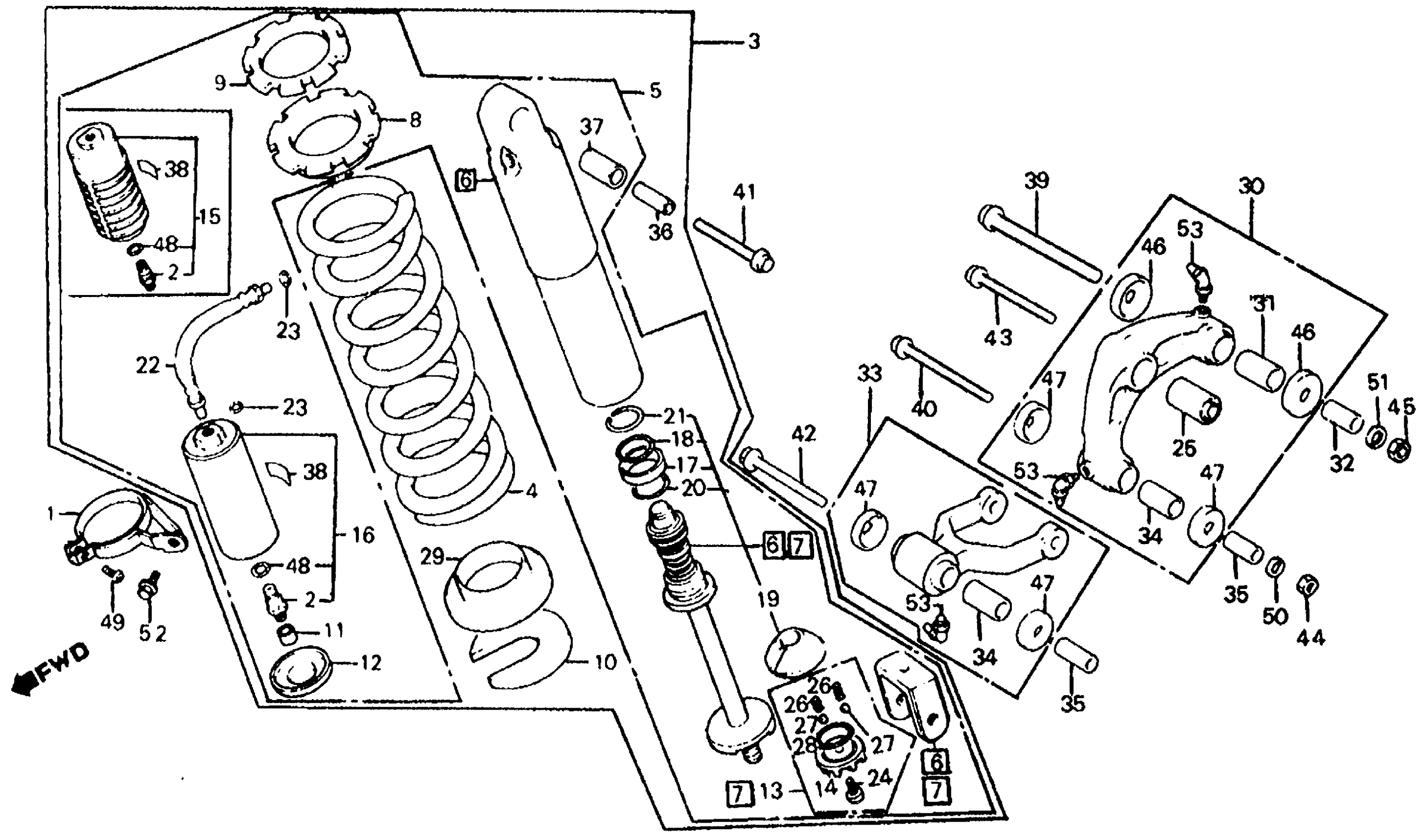

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 REAR SHOCK ABSORBER 81-82 Diagram

#

Description
Price

1

BAND, SUB-TANK (NOT AVAILABLE)

50175-MA0-770

Unavailable

2

VALVE, AIR (SHOWA)

51456-469-013

$33.69

3

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-MA0-771

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MA0-771

Unavailable

5

DAMPER, RR. (NOT AVAILABLE)

52410-MA0-771

Unavailable

6

DAMPER UNIT

52420-MA0-771

Unavailable

7

ROD, PISTON (NOT AVAILABLE)

52421-MA0-771

Unavailable

8

ADJUSTER, SPRING

52422-MA0-003

$39.25

9

NUT, ADJUSTER

52423-MA0-003

Unavailable

10

STOPPER, SPRING SEAT

52424-MA0-003

Unavailable

11

CAP, AIR VALVE

52425-381-771

$5.05

12

CAP, SUB-TANK (NOT AVAILABLE)

52427-MA0-771

Unavailable

13

PLATE SET, ADJUST

52428-KF0-003

Unavailable

14

PLATE, ADJUSTING

52429-KF0-003

Unavailable

16

SUB-TANK ASSY.

52430-MA0-771

Unavailable

17

RING, PISTON

52431-MA0-771

$16.40

18

O-RING (2.0X34.5) (NOT AVAILABLE)

52432-MA0-771

Unavailable

19

RUBBER, STOPPER (NOT AVAILABLE)

52433-MA0-771

Unavailable

20

O-RING (3.5X33.7)

52434-KA3-681

$5.36

20

O-RING (3.5X33.7) This part replaces 52434-MA0-771.

52434-KA3-681

$5.36

21

RING, STOPPER

52435-MA0-771

$4.97

22

HOSE, JOINT (NOT AVAILABLE)

52440-MA0-003

Unavailable

23

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

24

SCREW

52448-KF0-003

$2.90

25

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

26

SPRING, CLICK

52455-KF0-003

$4.97

27

BALL

52456-KF0-003

$3.28

28

SEAL, RING

52457-KF0-003

Unavailable

29

SEAT C, SPRING (NOT AVAILABLE)

52459-MA0-771

Unavailable

30

ARM ASSY., SHOCK ABSORBER

52460-MA0-010

Unavailable

31

BUSH, DAMPER ARM

52462-MA0-013

Unavailable

32

COLLAR, DAMPER ARM PIVOT

52463-MA0-010

Unavailable

33

ROD ASSY., DAMPER CONNECTING

52470-MA0-010

Unavailable

34

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

35

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

35

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

36

COLLAR, SHOCK ABSORBER (UPPER)

52486-MA0-013

Unavailable

37

BUSH, SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52489-MA0-003

Unavailable

38

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

39

BOLT, FLANGE (12X78) (NOT AVAILABLE)

90128-MA0-003

Unavailable

40

BOLT, FLANGE (10X69)

90129-MA0-003

Unavailable

41

BOLT, FLANGE (10X58) (NOT AVAILABLE)

90150-MA0-000

Unavailable

42

BOLT, FLANGE (10X71)

90129-KAS-900

$9.74

42

BOLT, FLANGE (10X71) This part replaces 90151-MA0-000.

90129-KAS-900

$9.74

43

BOLT, FLANGE (10X45) (NOT AVAILABLE)

90153-MA0-003

Unavailable

44

NUT, AXLE (10MM)

90304-GA6-003

$2.89

45

NUT, FLANGE (12MM)

90306-181-761

$6.08

46

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-003.

91261-964-671

$7.99

46

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-005.

91261-964-671

$7.99

46

SEAL, CUSHION ARM PIVOT

91261-964-671

$7.99

47

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-013.

91262-MA0-015

$11.15

47

SEAL, RR. SHOCK ABSORBER CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

48

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

48

O-RING (5.8X1.9)

91305-323-000

$2.92

48

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

49

SCREW, PAN (5X10)

93500-05010-0A

$1.49

50

WASHER, SPRING (8MM)

94111-10000

$1.49

51

WASHER, SPRING (12MM)

94111-12000

$1.49

52

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

52

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

53

FITTING, GREASE (B.76S)

96201-80000

$2.56
