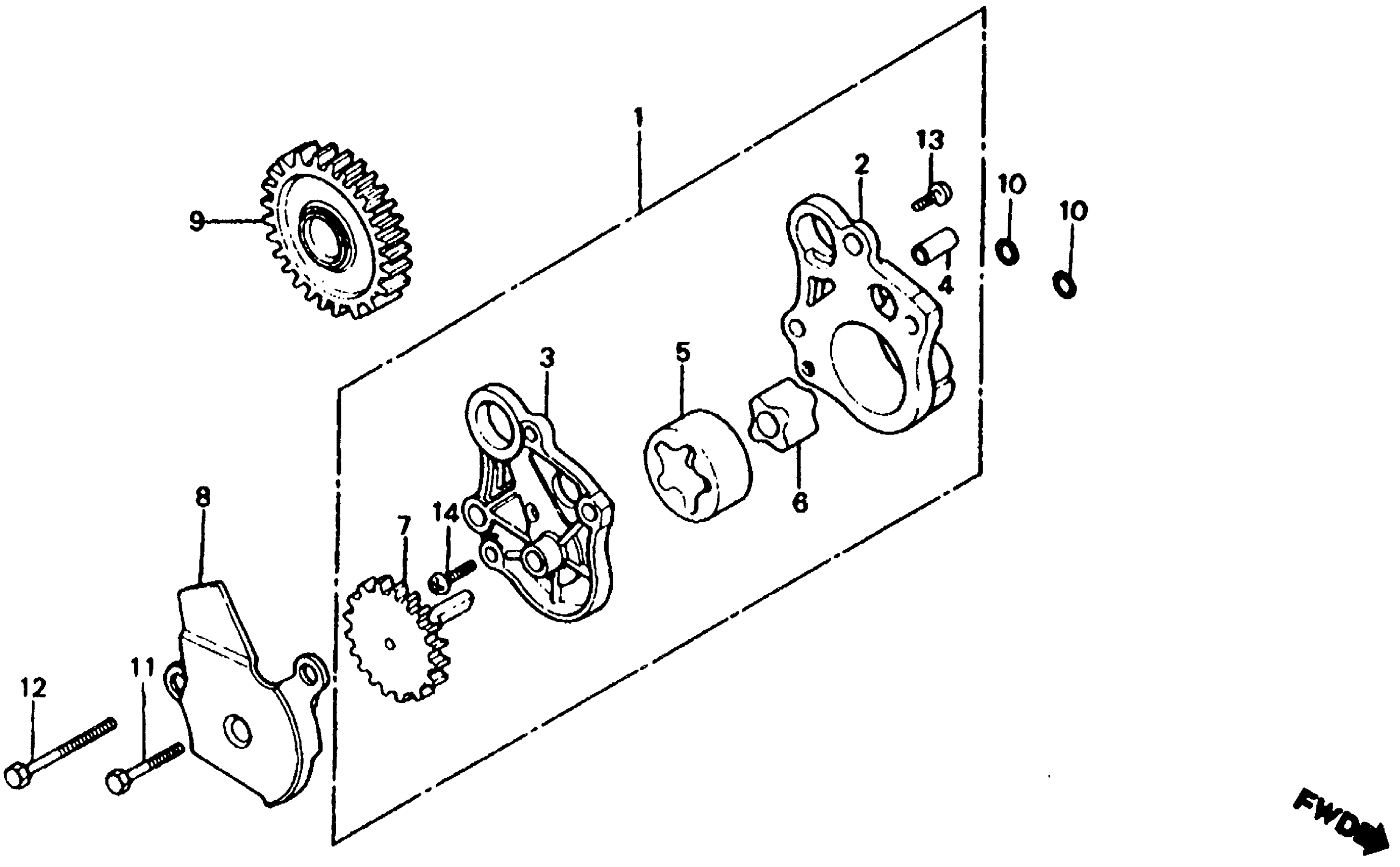

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 OIL PUMP 81-82 Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-429-000

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE)

15111-429-000

Unavailable

3

COVER, OIL PUMP (NOT AVAILABLE)

15121-429-000

Unavailable

4

PIN, DOWEL (8X18) (NOT AVAILABLE)

15122-428-000

Unavailable

5

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-429-000

Unavailable

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-429-000

Unavailable

7

GEAR, OIL PUMP DRIVE (18T) (NOT AVAILABLE)

15130-428-000

Unavailable

8

PLATE, OIL PUMP SETTING (NOT AVAILABLE)

15197-MC8-000

Unavailable

8

PLATE, OIL PUMP SETTING (NOT AVAILABLE) This part replaces 15197-428-010.

15197-MC8-000

Unavailable

9

GEAR, KICK STARTER IDLE (24T)

28221-429-010

Unavailable

10

O-RING (7X1.7)

91301-473-003

$2.72

10

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

10

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

11

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

11

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

12

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

12

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

12

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

13

SCREW, PAN (5X8)

93500-05008-0H

$1.49

13

SCREW, PAN (5X8) This part replaces 93500-05008-1H.

93500-05008-0H

$1.49

14

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

14

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

14

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49
