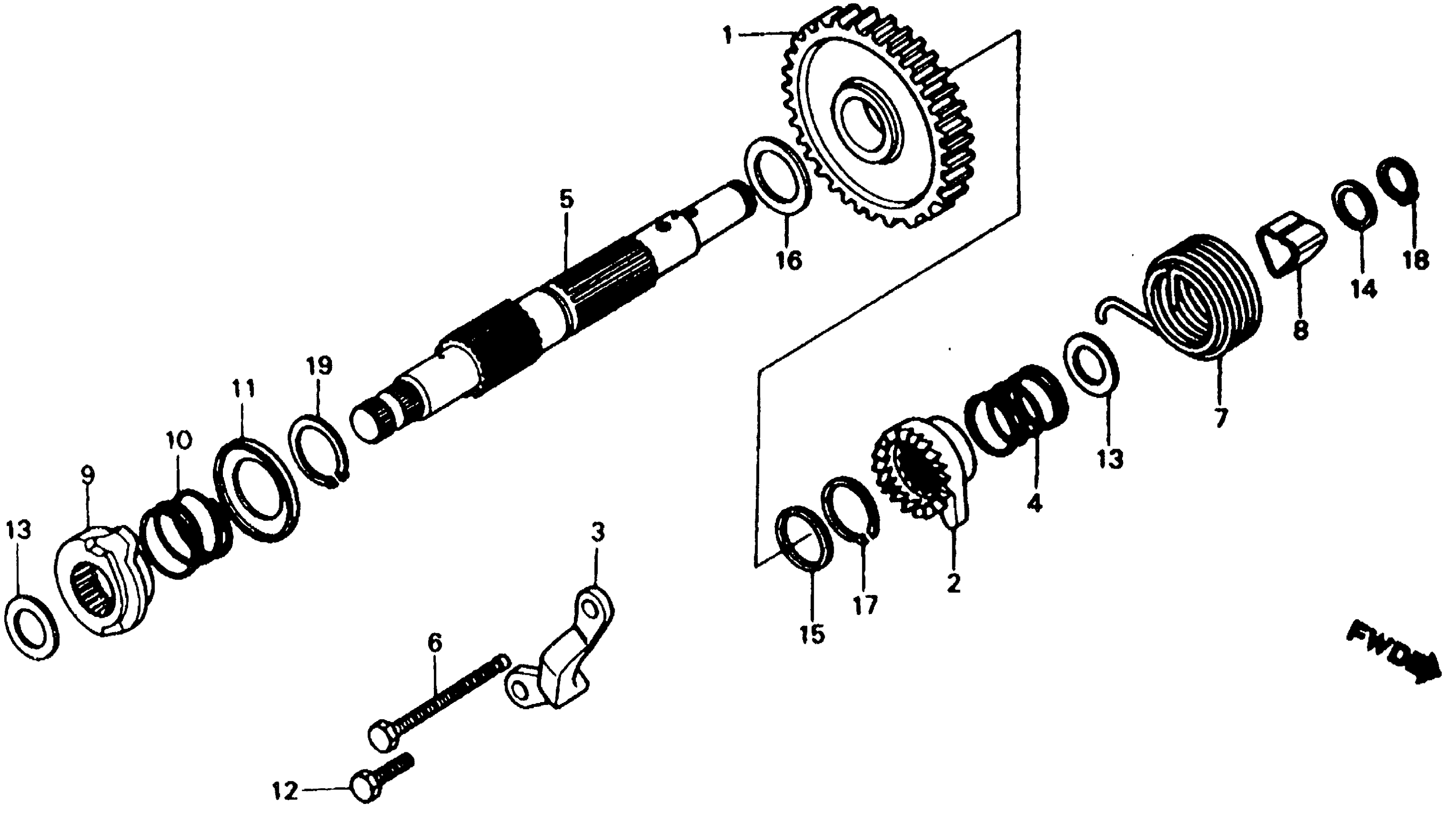

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 KICK STARTER SPINDLE 81-82 Diagram

PINION, KICK STARTER (36T) (NOT AVAILABLE)

28211-428-030

Unavailable

RATCHET, KICK STARTER (NOT AVAILABLE)

28213-428-000

Unavailable

PLATE, KICK STOPPER (NOT AVAILABLE)

28215-429-000

Unavailable

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-314-000

Unavailable

SPINDLE, KICK STARTER

28250-428-030

Unavailable

SPINDLE, KICK STARTER This part replaces 28250-429-030.

28250-428-030

Unavailable

PIN, KICK SPRING HOOK (NOT AVAILABLE)

28254-428-000

Unavailable

SPRING, KICK STARTER

28261-428-000

Unavailable

COLLAR, KICK STARTER (NOT AVAILABLE)

28265-428-000

Unavailable

CAM, KICK SHAFT (NOT AVAILABLE)

28272-429-000

Unavailable

SPRING, CAM RESET

28283-428-000

Unavailable

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

BOLT, HEX. (8X20) (NOT AVAILABLE)

90006-429-000

Unavailable

WASHER, THRUST (18MM)

90452-701-000

$2.34

WASHER, THRUST (16MM)

90453-235-000

$1.83

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, THRUST (22MM)

90456-323-000

Unavailable

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable
