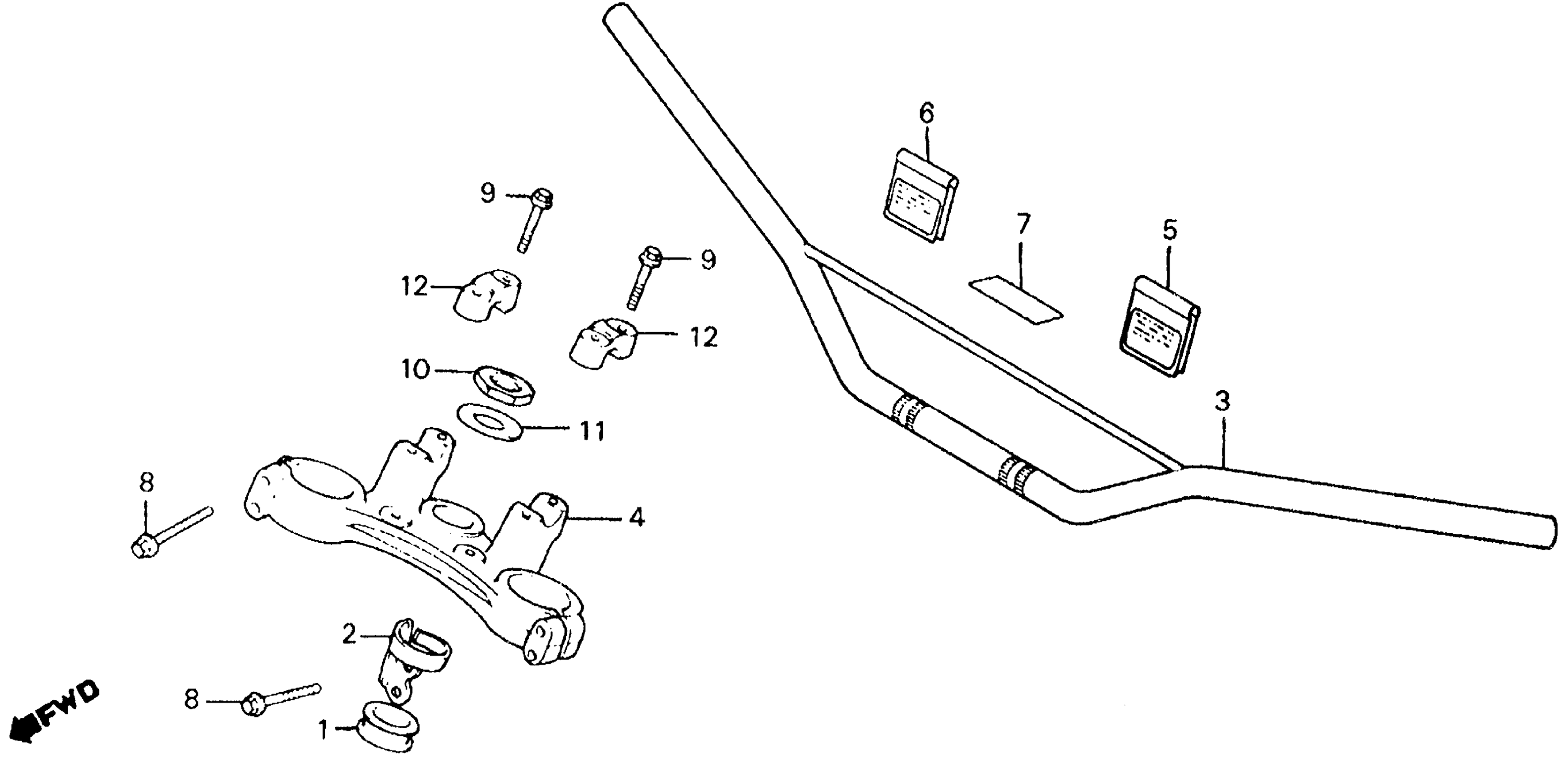

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

GUIDE, CABLE (INNER)

45466-KA4-000

$6.04

2

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45469-MA0-000

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-MA0-000

Unavailable

4

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MA0-000

Unavailable

7

LABEL, STARTING CAUTION (NOT AVAILABLE)

87503-MA0-300

Unavailable

8

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

9

BOLT, FLANGE (8X36)

90111-362-000

$4.47

10

NUT, STEERING STEM

90304-425-000

$8.70

11

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$3.90

11

WASHER, STEERING STEM

90503-425-000

$3.90

11

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$3.90

12

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$10.90
