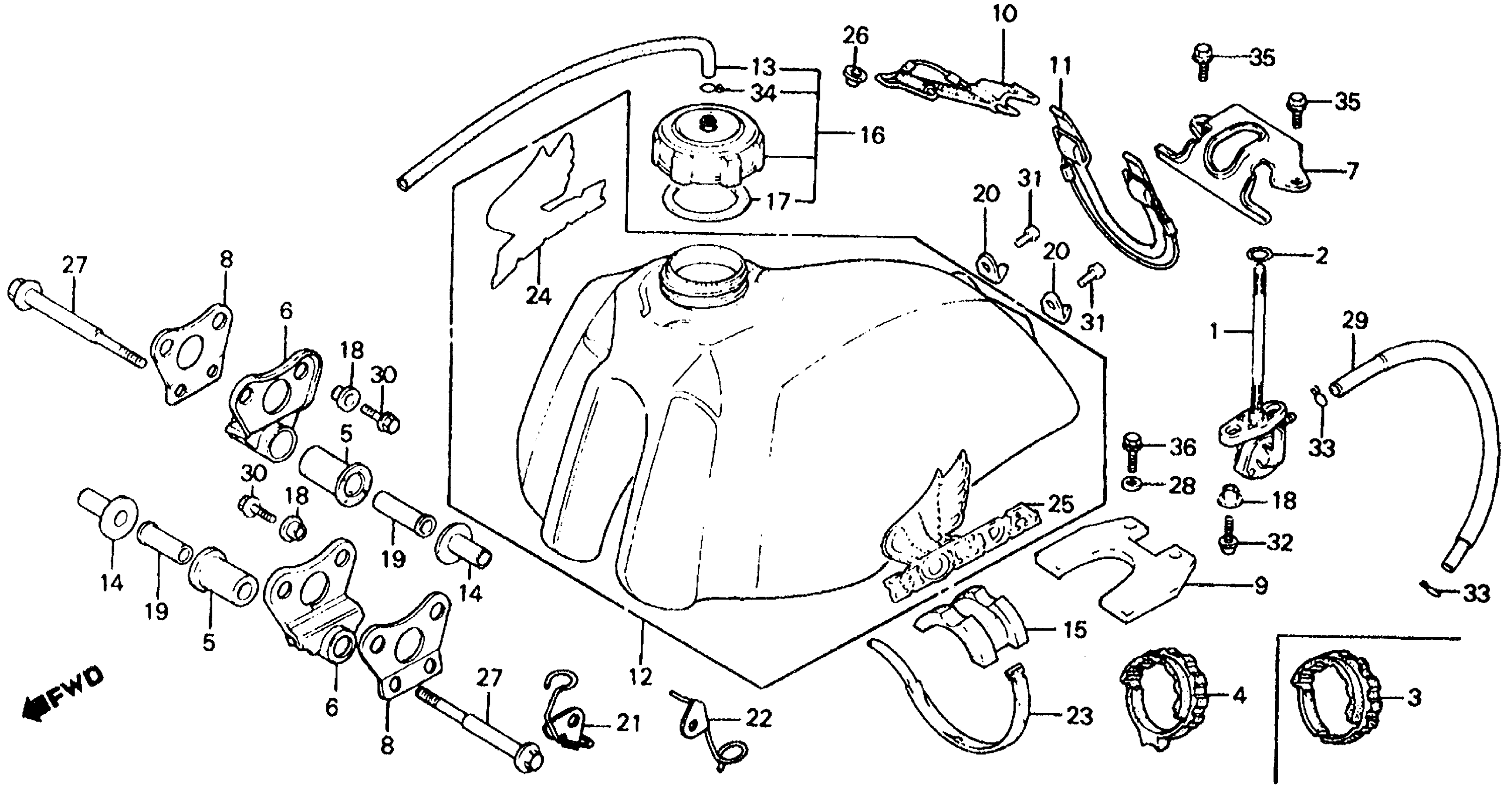

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-KT0-831

$96.27

1

PETCOCK ASSY. This part replaces 16950-MA0-015.

16950-KT0-831

$96.27

2

O-RING (11.8X3.55)

16997-467-000

$2.11

5

RUBBER, FUEL TANK SETTING

17508-467-000

Unavailable

6

BRACKET, FR. TANK (NOT AVAILABLE)

17511-KA2-000

Unavailable

7

STAY, RR. FUEL TANK (NOT AVAILABLE)

17513-MA0-000

Unavailable

8

RUBBER, FR. FUEL TANK SETTING (NOT AVAILABLE)

17514-MA0-000

Unavailable

9

RUBBER, RR. FUEL TANK SETTING (NOT AVAILABLE)

17515-MA0-000

Unavailable

11

BAND, RR. FUEL TANK SETTING

17516-MA0-000

Unavailable

12

TANK SUB-ASSY., FUEL (NOT AVAILABLE)

17520-MA0-000

Unavailable

13

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

14

COLLAR, FR. TANK SETTING (NOT AVAILABLE)

17525-MA0-000

Unavailable

15

RUBBER, FR. TANK

17611-KA2-000

Unavailable

16

CAP, FUEL TANK This part replaces 17620-MA0-000.

17620-MA0-405

Unavailable

16

CAP, FUEL TANK

17620-MA0-405

Unavailable

17

GASKET, FUEL TANK CAP

17624-467-020

Unavailable

18

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

19

COLLAR, SLIDER (NOT AVAILABLE)

17628-467-010

Unavailable

20

HOOK, RR. FUEL TANK (NOT AVAILABLE)

17629-KA2-000

Unavailable

23

BAND, CABLE

32161-402-000

Unavailable

24

LABEL, R. FUEL TANK (NOT AVAILABLE)

87123-MA0-300

Unavailable

25

LABEL, L. FUEL TANK (NOT AVAILABLE)

87124-MA0-300

Unavailable

27

BOLT, FR. FUEL TANK MOUNT

90175-MA0-000

Unavailable

28

WASHER, SPROCKET SETTING

90551-033-000

$1.74

29

TUBE, FUEL (5.3X200) (NOT AVAILABLE)

91461-MA0-000

Unavailable

30

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

31

SCREW, PAN (6X12)

93500-06012-0H

$1.49

31

SCREW, PAN (6X12) This part replaces 93500-06012-08.

93500-06012-0H

$1.49

32

SCREW-WASHER (6X20)

93891-06020-08

$1.80

33

CLIP, TUBE (B10)

95002-02100

$1.90

34

CLIP, TUBE (C9)

95002-50000

$1.49

35

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

35

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

36

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

36

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
