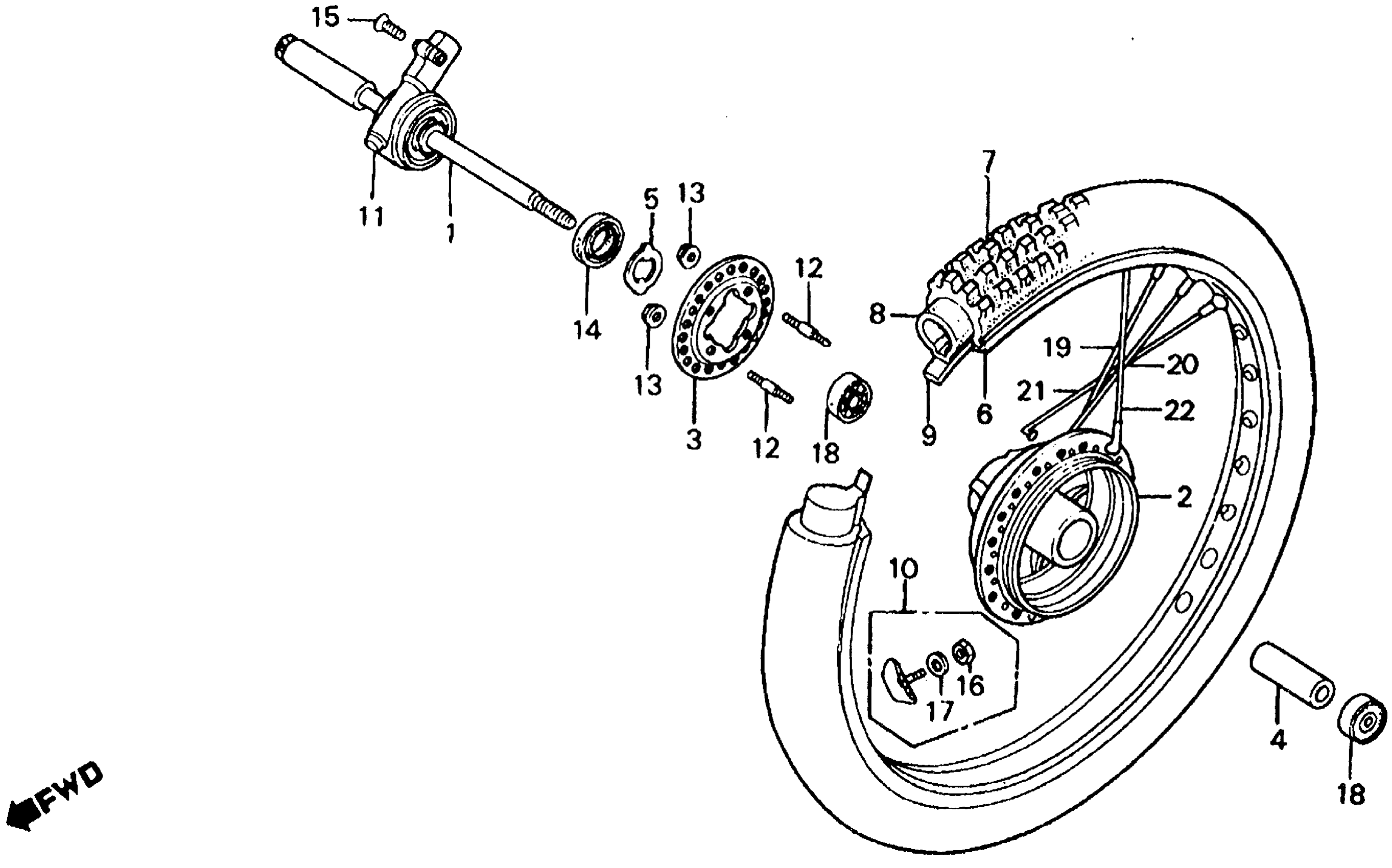

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 FRONT WHEEL 81-82 Diagram

#

Description
Price

1

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MA0-000

Unavailable

2

HUB, FR. WHEEL

44601-MA0-770

Unavailable

3

FLANGE, FR. SPOKE (NOT AVAILABLE)

44604-MA0-770

Unavailable

4

COLLAR, FR. AXLE (NOT AVAILABLE)

44620-MA0-000

Unavailable

5

RETAINER, GEAR BOX

44680-MA0-000

$7.41

6

RIM, FR. WHEEL (NOT AVAILABLE) This part replaces 44701-MA0-771.

44701-430-003

Unavailable

7

TIRE, FR. (3.00-21) (6PR) (BS) (NOT AVAILABLE)

44711-MA0-003

Unavailable

7

TIRE, FR. (3.00-21) (6PR) (INOUE) (NOT AVAILABLE)

44711-MA0-005

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

8

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

9

FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003)

44713-329-003

Unavailable

9

FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)

44713-446-631

Unavailable

10

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

11

BOX ASSY., SPEEDOMETER GEAR

44800-MA0-771

Unavailable

12

BOLT, STUD (6X28)

90135-107-720

$2.56

13

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

14

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

14

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

14

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

15

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85

19

SPOKE SET A, FR. (B8X234)

446A0-KA4-000

Unavailable

20

SPOKE SET B, FR. (B8X198.5) (NOT AVAILABLE)

446B0-KA4-000

Unavailable

21

SPOKE SET C, FR. (B8X233.5) (NOT AVAILABLE)

446C0-KA4-000

Unavailable

22

SPOKE SET D, FR. (B8X198) (NOT AVAILABLE)

446D0-KA4-000

Unavailable
