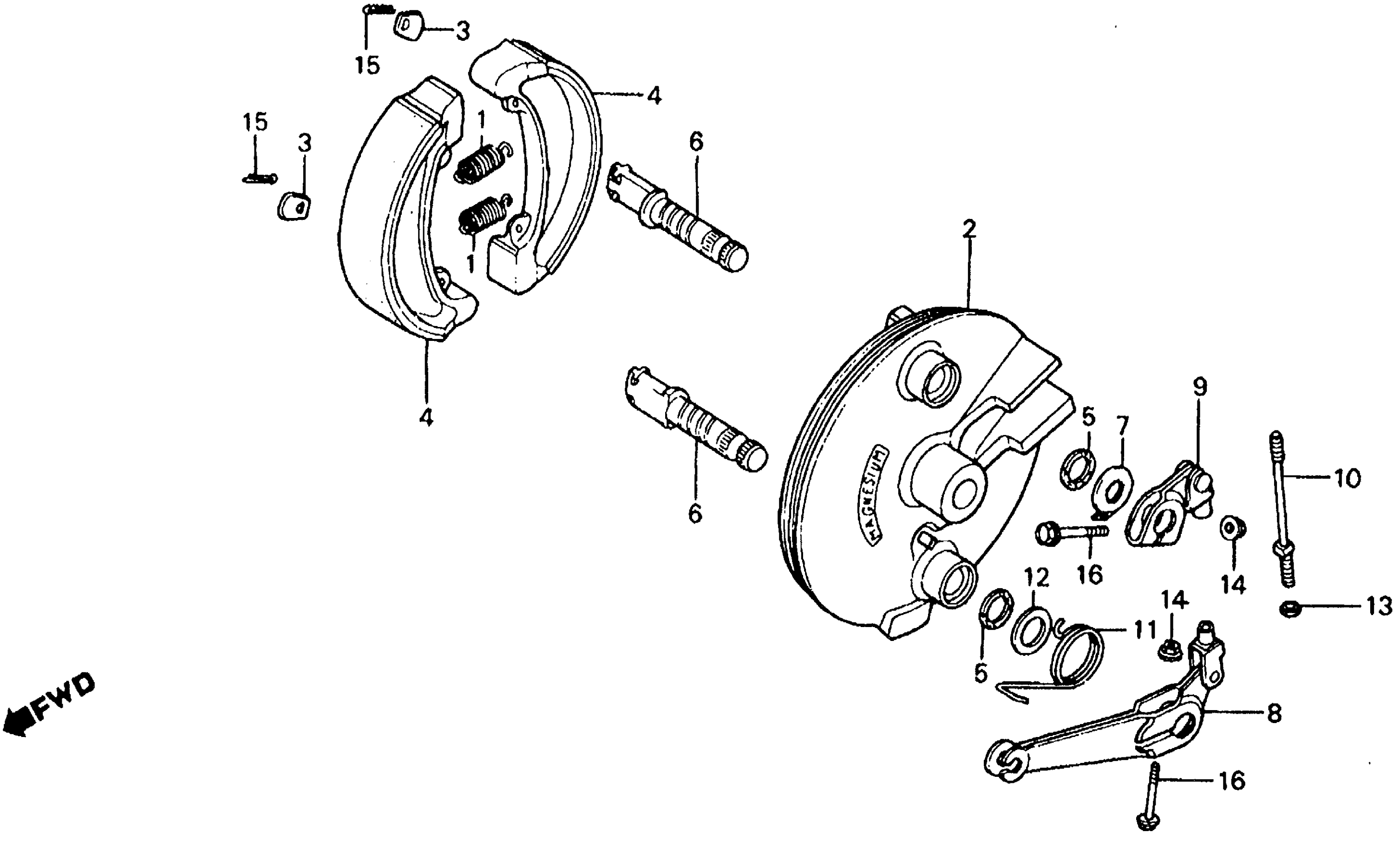

Honda XR500RA (82) MOTORCYCLE, JPN, VIN# JH2PE010-CM300008 TO JH2PE010-CM307987 FRONT BRAKE PANEL 81-82 Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06450-MA0-406

Unavailable

NI

SHOE KIT, BRAKE This part replaces 451A2-MA0-771.

06450-MA0-406

Unavailable

1

SPRING, FR. BRAKE SHOE (NOT AVAILABLE)

45151-MA0-770

Unavailable

2

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CM302162 This part replaces 45100-MA0-770.

45100-MA0-771

Unavailable

2

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-MA0-771

Unavailable

3

WASHER, ANCHOR PIN (NOT AVAILABLE)

45106-MA0-000

Unavailable

4

*06450-MA0-406 This part replaces 45120-MA0-771.

45120-MA0-305

Unavailable

4

*06450-MA0-406 This part replaces 45120-MA0-772.

45120-MA0-305

Unavailable

5

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

6

CAM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CM302162 This part replaces 45141-MA0-770.

45141-MA0-771

Unavailable

6

CAM, FR. BRAKE (NOT AVAILABLE)

45141-MA0-771

Unavailable

7

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-413-670

Unavailable

8

ARM A, FR. BRAKE (NOT AVAILABLE)

45410-MA0-000

Unavailable

9

ARM B, FR. BRAKE (NOT AVAILABLE)

45420-MA0-000

Unavailable

10

ROD, BRAKE ARM CONNECTING (NOT AVAILABLE)

45422-MA0-000

Unavailable

11

SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use up to Frame SN CM302162

45435-MA0-000

Unavailable

11

SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use from Frame SN CM302163

45435-KA4-700

Unavailable

12

WASHER (14MM)

90509-169-000

Unavailable

12

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

13

NUT, HEX. (6MM)

94002-06000-0S

$1.49

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

PIN, COTTER (2.0X12)

94201-20120

$1.49

16

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

16

BOLT, FLANGE (6X32)

95701-06032-08

$1.89
